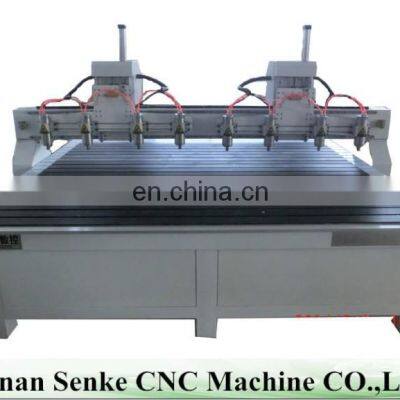

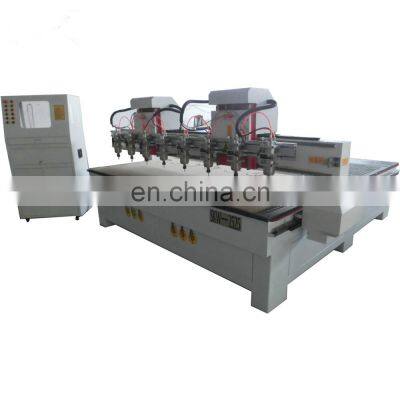

Multi head SKW-2030 router+cnc+para+corte+de+metales
Technical parameter:
Discription |
Parameter |
|||
SKW-1325M |
SKW-1530M |
SKW-2030M |
Option |
|
Working Area (X*Y*Zmm) |
1300*2500*200mm |
1500*3000*200mm |
2000*3000*200mm |
customize |
Z Structure |
Ball Screw |
|||
X, Y Resolution |
<0.01mm |
|||
Max Moving Speed |
8000mm/min |
|||
Max Engraving Speed |
6000mm/min |
|||
XYZ traveling positioning accuracy |
0.03/300mm |
|||
XYZ repositioning accuracy |
0.03mm |
|||
Spindle power |
0.8kw/1.5kw/2.2kw/3.0kw(can be choices) |
|||
Table style |
collet/Vacuum table |
|||
Spindle Speed |
0-18,000rpmrpm |
|||
Dust collection |
Can add or not |
|||
Voltage |
AC220V/50Hz AC380V,AC110V,AC410V As optional |
|||
Drive type |
Stepper/Option:servo |
|||
Working Dictate |
G Code ,HPGL |
|||
Operating system |
NC-Stuido/Dsp option System |
|||
Interface |
USB |
|||
Flash memory |
128M(U Disk) |
|||
Software Compatability |
Type3/Ucancam Artcam |
|||
Running Enviroment |
Temperature: 0-45 |
|||
Features:
1.eight spindles can be working at the same time as well as separately. which improve
working efficiency highly.

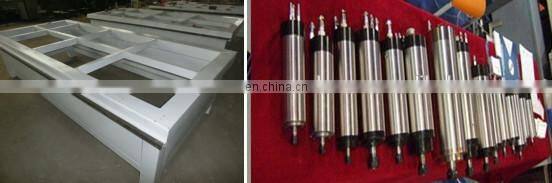

2.Whole machine is welded with seamless steel structureand is processed by high
temperature tempering treatment and vibrating stress relief to relief residual stress.
The stability is excellent,not easy to be deformed.

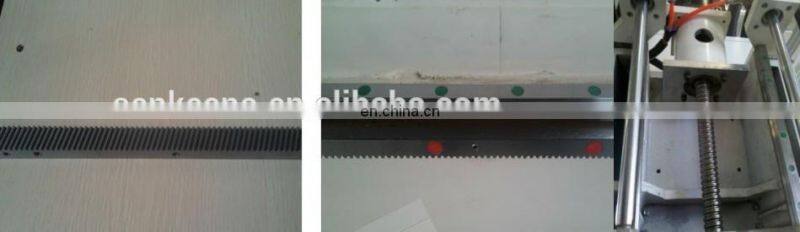

3. Adopt imported ballscrew and Taiwan Hiwin Square Rail, high precision and long life time.
(Adopt rack and pinion transmission, fast working, high efficiency and low cost. )
4.Adopting advanced NC Studio control system DSP as optional
5. Be compatible with several CAD/DAM designing software, e.g. Type3/Artcam/Castmate/Wentai etc.
6. Perfect lubricating system makes maintenance much easier.
7. Advanced design of the machine make sure strong cutting and guarantee the engraving precision.
Machine parts :
1.eight spindles and heavy duty lathe body
2.hiwin guide rail and gemany ball screw

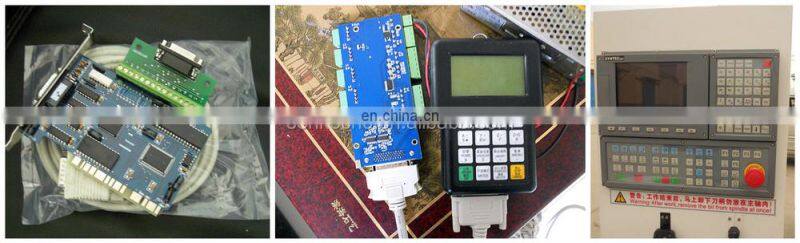

3.nc studio control system or dsp control or syntec control

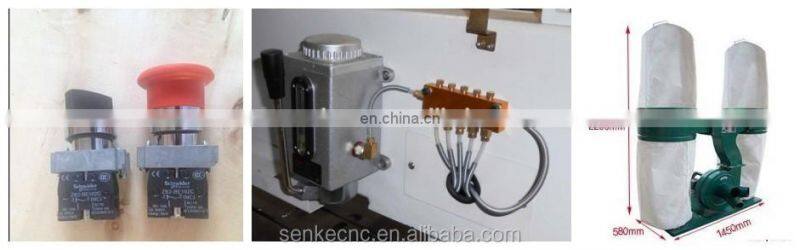

4. omron limit , perfect lubricating system optional dust collector
Applicable:
Advertisement: engraving and cutting various labels and number plate.
Art craft: engraving characters of any languages and graphics on gifts and souvenirs.
Applicabe materials:
Wood, aluminum board, plastic, density board, wave board, pvc, acrylic, crystal glass, light
marble and other nonmetal materials and light metal metarials.
Processing effect:
Our cnc router is widely used for cutting, milling, drilling, engraving various shade vulture,
relief,etc.
samples:
Double paking of protective film and fumigation-free wooden case:
Service:
1 We will provide the user a CD to study the machine installation and commissioning.
2 Our technicists can give user online guide.
3 The user can by call or email us any problems at any time.
4 After-sales service.
Two year warranty for machine maintenance, for equipment maintenance over the warranty period is clearly marked.
Questions and answers:
1,How about the documents after shipment?
After shipment, we will send all original documents to you by DHL, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.
2,How long is the delivery time?
For standard machines, it would be 5-7 days; For non-standard machines and customized machines according to clients specific requirements, it would be 10 to 15 days.
3,Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
4,How is the packing?
Waterroof plastic film package with foam protection in each cornerSolid Seaworthy Wood Box Package with Steel Belt Save space as much as possible for container loading.

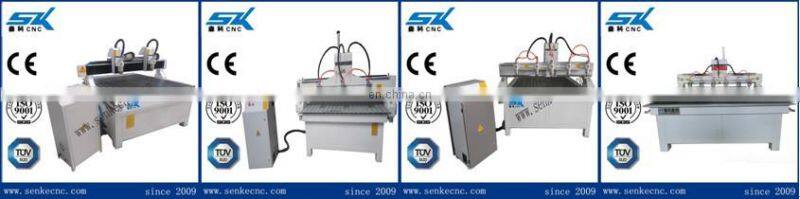

Other related modle cnc machine:
