KAA10XP0 Thin Section Ball Bearing 25.4*34.925*1.762 Mm

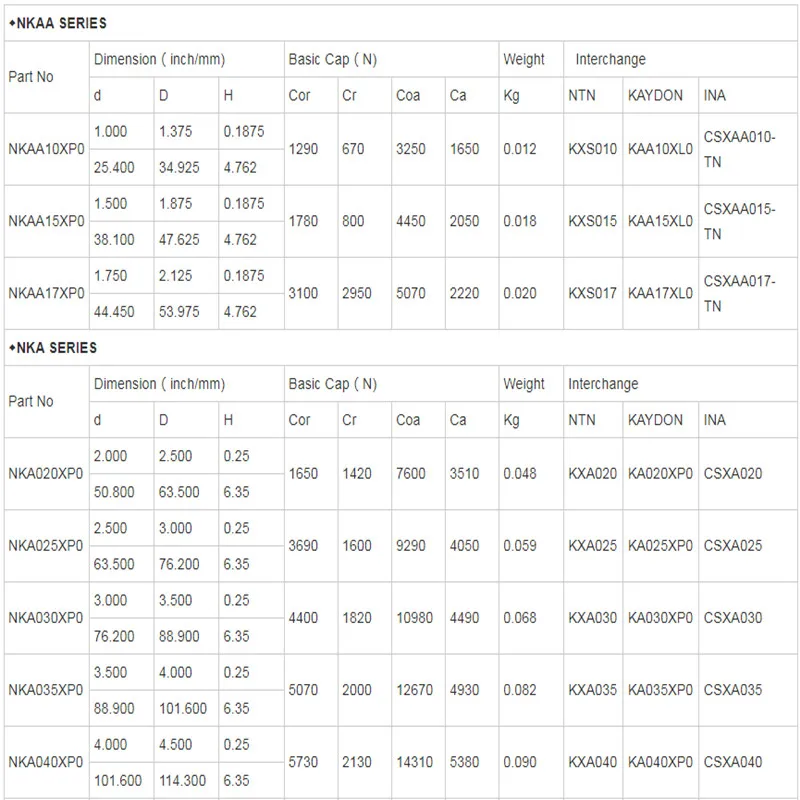

KAA10XP0 Thin section four point contact ball bearing belongs to KAA SERIES of thin section ball bearings, the KAA SERIES include KAACP0, KAAXP0 and KAAR0,which represented : Type-C : Deep Groove bearing, Type-X: Four Point Contact bearing and Type-A: Angular Contact bearing, the rolling body of these bearings is ball, which can be nylon ball or steel ball as requested. The Cross Section is constant, that is 3/16 inch. KAA10XP0 Ultra Thin Section Four Point Contact Bearings 25.4*34.925*1.762 mm, Thin Walled Bearing KAA10XP0 With Cross Section 3/16 x 3/16 inch, id: 1 inch, OD:1.375 inch, Size: 1 inch x 1 3/8 inch x 3/16 inch.
Parameters:
Bearing Type: Ball
For Load Direction: Four Point
Construction: Single Row
Seal Type: Open

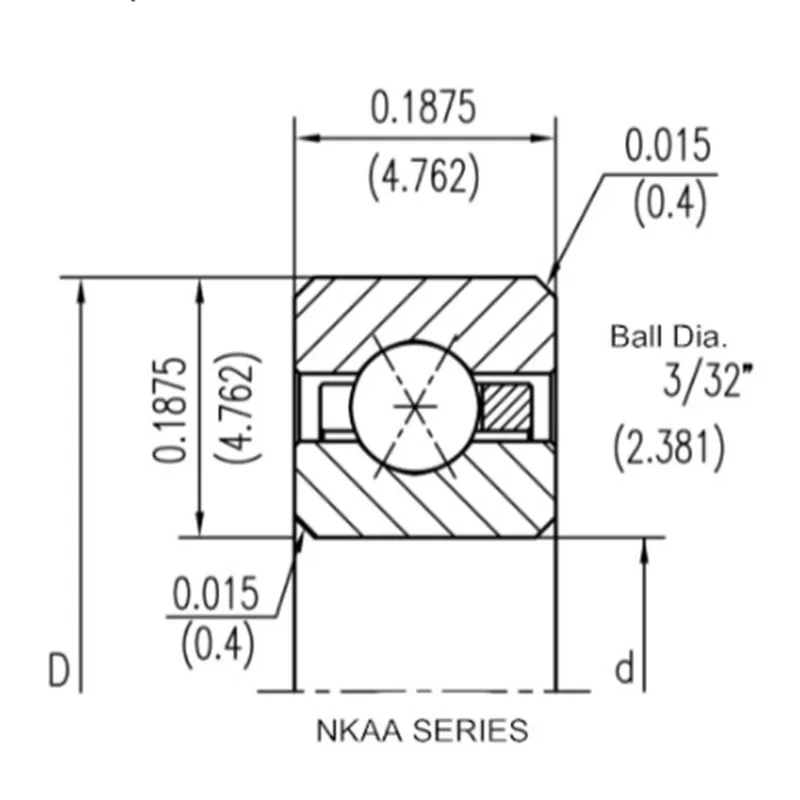

Cross Section: 3/16″ x 3/16″ (4.762x4.762mm)
Part Number: NKAA10XP0
For Shaft Diameter: 1.000"(25.4mm)
Bore Dia (d) : 1.000" (25.4mm)
Bore Dia Tolerance: -0.0004"– 0"
For Housing ID: 1.375" (34.925mm)
Outer Dia (D): 1.375" (34.925mm)
Outer Dia Tolerance: -0.0005"– 0"
Width (B): 0.1875" (4.762mm)
Ring Material: 52100 Chrome steel
Ball Material: 52100 Chrome steel
Cage Material: Nylon
Dynamic (lbs): Radial 247
Thrust :370
Moment: 110
Static (lbs)
Radial: 290
Thrust: 730
Moment: 170
Lubrication: Lubricated
Shaft Mount Type: Press Fit
Temperature Range : -30° to 110 ℃
ABEC Rating: ABEC-1
Radial Clearance: 0.0000 – 0.0005"
About Our Stock
For those items are available in the warehouse, we shall deliver them within 7 days upon receiving payment, and those are not available , we shall arrange to produce them however a minimum order is required, and the lead time shall be around 10-30 days.
Applications:
Our BOBI products are widely used in the following fields: Medical Equipment, Rotary polishing equipment, X-ray – MRI, Rotary pipe cutting equipment, Rotary welding equipment, Semi-conductor equipment, Rotary actuators, Rotary work holding tables, Aerospace - auxiliary equipment, Turrets, Gun turrets, Turntables, Indexing tables, Missile launchers, Machine tools, Lathe accessories, Radar equipment, Robotics, Radar drives, Antenna pedestals, Packaging equipment, Satellite antennas, Pedestals Labeling machines, Truck mounted communication equipment, Food processing equipment, Bottling equipment.
