KA035XP0 KA-Series-Type-X- Ball-Bearings Thin-Section-Bearing Thin Bearings-Open-Bearings Thin-Walled-Bearings NKA035XP0

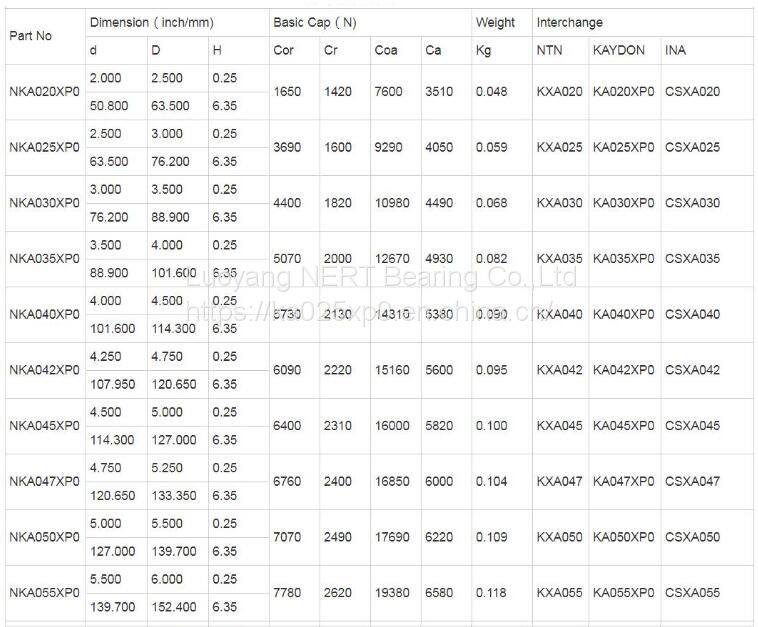

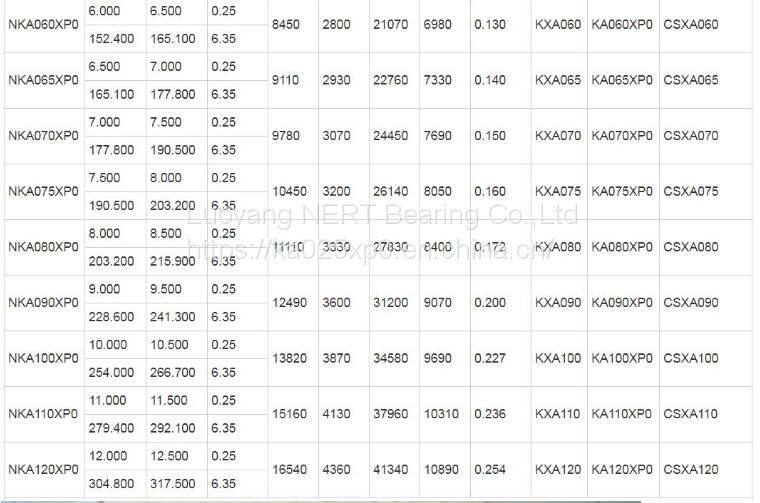

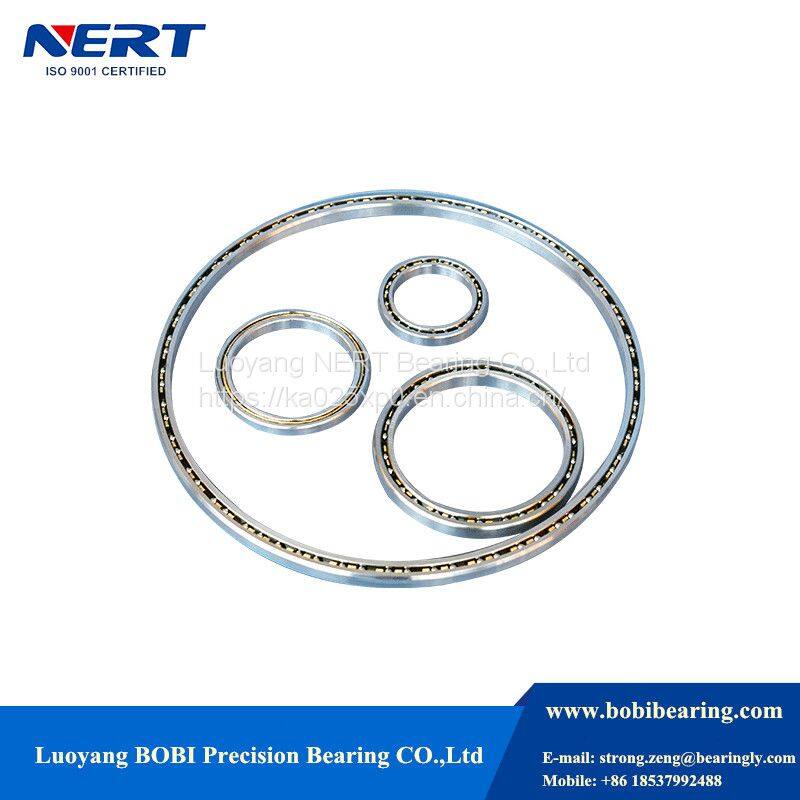

KA035XP0 Thin section four-point contact ball bearing belongs to KA SERIES of thin section ball bearings, the KA SERIES includes KACP0, KAXP0, and KAAR0, which represented: Type-C: Deep Groove bearing, Type-X: Four Point Contact bearing and Type-A: Angular Contact bearing, the rolling body of these bearings is the ball, which can be nylon ball or steel ball as requested. The bore size of KA SERIES are ranged from 2 inches to 12 inches and the outer diameters are arranged from 2.5 inches to 12.5 inches, while the Cross Section is constant, that is 0.25 inches.

Parameters:

Bearing Type Ball
For Load Direction Four Point
Construction Single Row
Seal Type Open

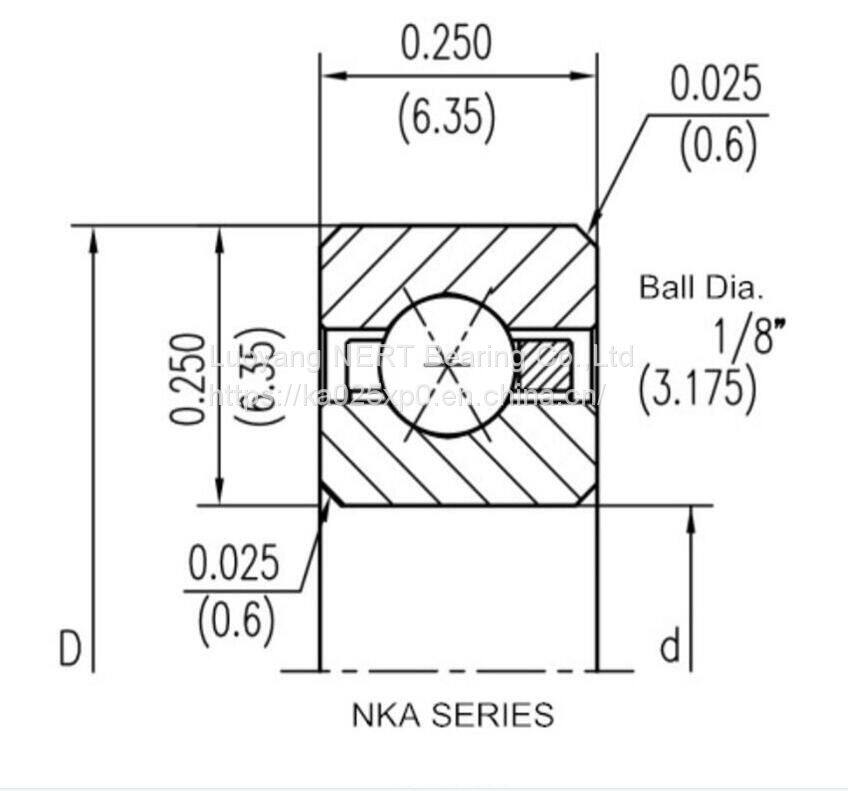

Cross Section 1/4″ x 1/4″(6.35x6..35)
Part Number KA035XP0(NKA035XP0)
Bore Dia (d) 3.500"(88.9mm)
Bore Dia Tolerance -0.0008" – 0"
Outer Dia (D) 4.000"(101.6mm)
Outer Dia Tolerance -0.0006" – 0"
Width (B) 0.25"(6.35mm）
Width Tolerance +.000 –.005"
Ring Material 52100 Chrome steel
Ball Material 52100 Chrome steel
Cage Material Brass
Dynamic (lbs) Radial 701
Thrust 1,110
Moment 986
Static (lbs) Radial 1,140
Thrust 2,850
Moment 2,130
Lubrication Lubricated
Temperature Range -20° to 180 ℃
ABEC Rating ABEC-1
Radial Clearance 0.0000 – 0.0005"
Weight (lbs) 0.180

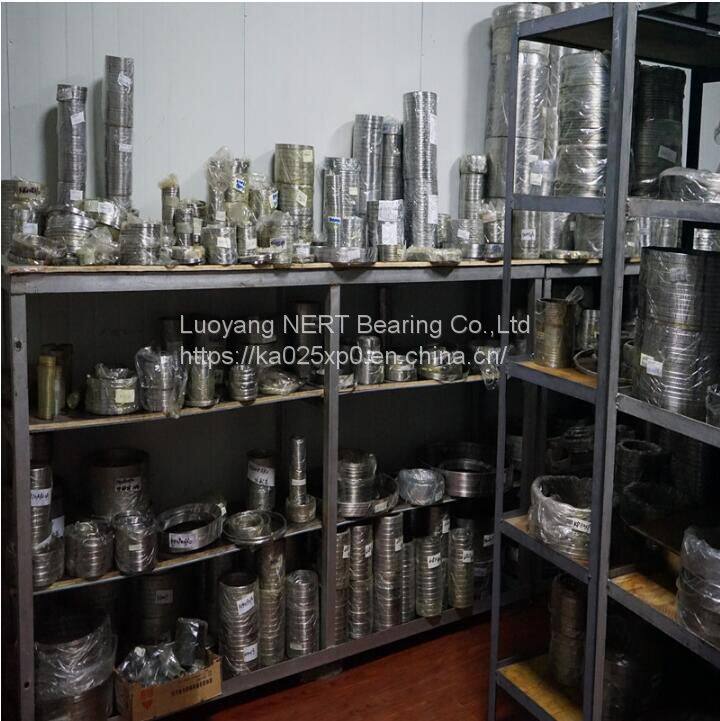

About Our Stock

For those items that are available in the warehouse, we shall deliver them within 7 days upon receiving payment, and for those that are not available, we shall arrange to produce them however a minimum order is required, and the lead time shall be around 10-30 days.

Applications:

Our BOBI products are widely used in the following fields: Medical Equipment, Rotary polishing equipment, X-ray – MRI, Rotary pipe cutting equipment, Rotary welding equipment, Semi-conductor equipment, Rotary actuators, Rotary work holding tables, Aerospace - auxiliary equipment, Turrets, Gun turrets, Turntables, Indexing tables, Missile launchers, Machine tools, Lathe accessories, Radar equipment, Robotics, Radar drives, Antenna pedestals, Packaging equipment, Satellite antennas, Pedestals Labeling machines, Truck-mounted communication equipment, Food processing equipment, Bottling equipment.
