Home > Products > esd magazine rack > 25 slots smt esd conductive adjustable pcb magazine rack 355 x 320 x 563 mm

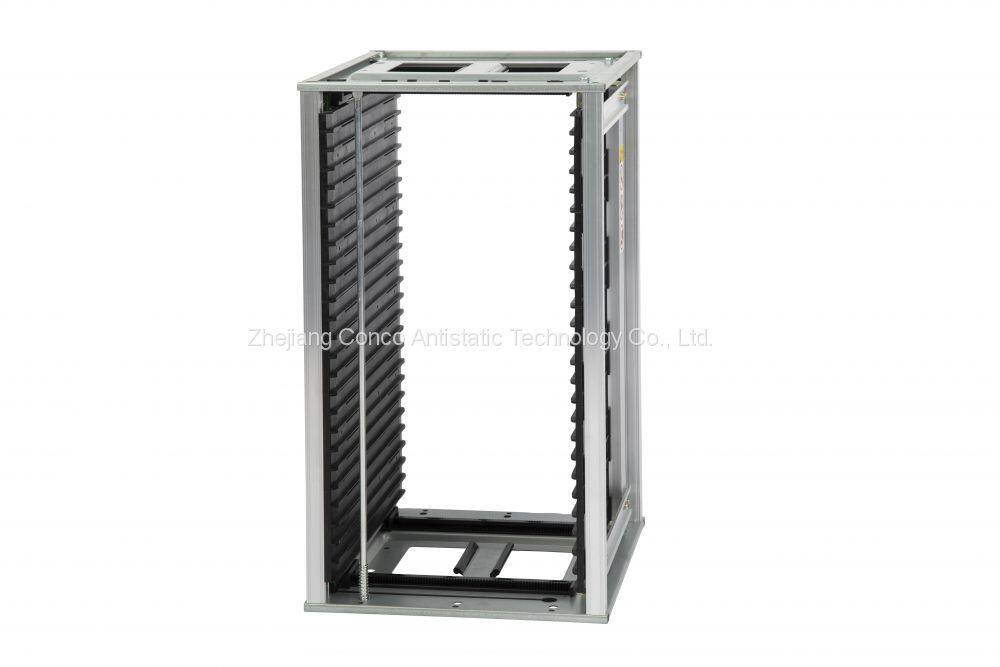

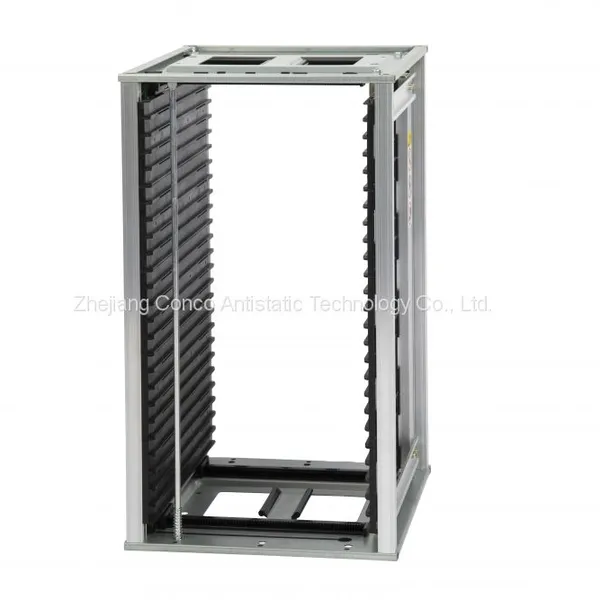

25 slots smt esd conductive adjustable pcb magazine rack 355 x 320 x 563 mm
USD $18 - $150
/ Set
1 Set(Min.Order)
- 1000 Set / Sets per Month
- ningbo
- T/T
- 7 days
You May Like
-
400 x 320 x 570 or 563 mm smt esd anti static pcb magazine racks
-
600 x 400 x 230 mm conductive black esd plastic pp box bins
-
esd smt pcb magazine racks customized with H shape stopper plate
-
ESD SMT SMD reel storage trolley rack wire shelves cart
-
535 x 530 x 563 mm smt belt adjustment pcb magazine racks manufacturer
-
535 x 380 x 570 mm screw pcb magazine racks for
Product Details
| Brand Name: | CONCO | Place of Origin: | China | Model Number: | COP-804 25 slots |
| After-sales Service Provided: | No overseas service provided |
Product Description
esd pcb storage magazine rack cop-804 25 slots
Specification
| Name | ESD pcb magazine rack cop-804 with 25 slots |
| Surface resistance | 104~106 Ω |
| Temperature resistance | 80° C |
| Overall size | 355 x 320 x 563mm |
| Storage capacity | 50 pieces of PCB |
| Specifications | 350 x (50-250)mm |
| Side guide slot | depth 3.5mm, width 5mm, pitch 20mm |
| The top and bottom boards | made of metal |
| Panels material | conductive plastic panel |
| Packing detail | 1pcs into 1 carton , 50 cartons into a wooden case (size 1.2*1*1.3m) |
Product features:
Smt esd pcb magazine rack is made of aluminum alloy column, side panel, The adjustable coupling drive set, static material four parts
our products can bear high strength , quality original materials & anti-aging .
other models:
| SKU. | Outer dimension （mm） | Adjust way | Adjustable width（mm） | Weight（kg） | Ref.position | Base material | Side board material | Quantity of PCB Capacity | Max Tolerant Temperature (℃） | |||||
| L | W | H | Gear track adjustment | Screw adjustment | Belt adjustment | A | B | |||||||
| COP-801 | 400 | 320 | 563 | √ | √ | 50-250 | 6.9/6.7 | 34 | 34 | Metal | plastic | 50 | 80/120/200 | |
| COP-801L | 400 | 320 | 563 | √ | √ | 50-250 | 8.8/8.6 | 34 | 34 | Metal | Aluminum | 50 | 300 | |
| COP-802 | 355 | 315 | 580 | √ | 80-250 | 5 | 34 | 34 | Plastic | plastic | 50 | 80 | ||
| COP-803 | 355 | 320 | 563 | √ | √ | √ | 50-250 | 5.7/5.5/8.2 | 34 | 34 | Metal | plastic | 50 | 80/120/200 |
| COP-803L | 355 | 320 | 563 | √ | √ | 50-250 | 7.4/7.2 | 34 | 34 | Metal | Aluminum | 50 | 300 | |
| COP-805 | 355 | 320 | 563 | √ | √ | 50-250 | 4.2/4.0 | 34 | 34 | Plastic | plastic | 50 | 80 | |
| COP-806 | 460 | 400 | 563 | √ | √ | √ | 50-330 | 7.7/7.5/11.2 | 34 | 34 | Metal | plastic | 50 | 80/120/200 |
| COP-806L | 460 | 400 | 563 | √ | √ | 50-330 | 9.8/9.6 | 34 | 34 | Metal | Aluminum | 50 | 300 | |
| COP-807 | 460 | 400 | 563 | √ | √ | 50-330 | 8.2/8.0 | 34 | 34 | Metal | plastic | 50 | 80/120/200 | |
| COP-807L | 460 | 400 | 563 | √ | √ | 50-330 | 10.4/10.2 | 34 | 34 | Metal | Aluminum | 50 | 300 | |
| COP-808 | 535 | 460 | 569 | √ | √ | √ | 50-390 | 10.3/9.9 | 34 | 34/40 | Metal | plastic | 50 | 80/120/200 |
| COP-808L | 535 | 460 | 569 | √ | √ | 50-390 | 11.5/11.3 | 34 | 34/40 | Metal | Aluminum | 50 | 300 | |
| COP-809 | 535 | 530 | 569 | √ | √ | √ | 50-460 | 12.3/11.9/13.4 | 34 | 34/40 | Metal | plastic | 50 | 80/120/200 |
| COP-809L | 535 | 530 | 569 | √ | √ | 50-460 | 13.5/13.2 | 34 | 34/40 | Metal | Aluminum | 50 | 300 | |
| COP-810 | 630 | 530 | 563 | √ | √ | √ | 50-460 | 14.0/13.6 | 34 | 34 | Metal | plastic | 50 | 80 |
