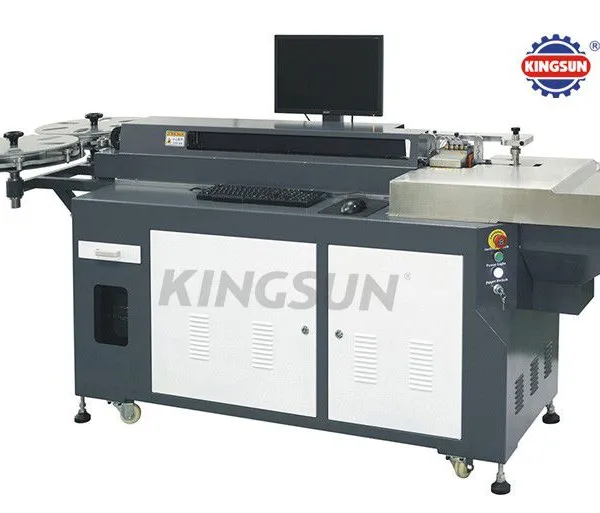

KT-850 Model Cutting Rule Blade Bending Machine

Name: KT-850 Model Cutting Rule Blade Bending Machine
Brand: KINGSUN
SKU: 170615437
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Brand Name:

KINGSUN

Place of Origin:

China

Model Number:

KT-850

Wenzhou Kingsun Machinery Industrial Co.,ltd

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo, China

Delivery Detail:

40 days

Brand Name KINGSUN

Place of Origin China

Model Number KT-850

After-sales Service Provided Engineers available to service machinery overseas

Condition New

KT-850 Model Cutting Rule Blade Bending Machine

Functions and usage:

1)Possess of functions such as bending, bridge, front lipping, back lipping, cutting, flat cutting six functions.

2)Panasonic Servo motor system + Ball-screw guide- rail in design, eradicate skidding and dislocated.

3)Unique imported mould tool design, easy to bend pattern, high precision of size, durable

4)In order to guarantee precision and long-life span, transmission and control parts are imported

5)Self-developed latest bending control system, easy to operate and upgrade available.

6)Fully English & Chinese interface, easy to learn how to operate, make bending work more easy.

7)It can be installed soon after bending patterns form the machine, no need extra more hard work.

8)It's widely used cutting box mould,art paper,carton boxes.

9)Exactly to realize fully automatic bending, help to save plate making time.

Main specifications:

Blade thickness(mm)	0.71mm/1.05mm/1.07mm
Bending Blade height(mm)	23.8mm-50mm
Bridge width	Over 5.5mm any sizes available.
Max. bending angle	100°
Min. ARC radius of 90 degree	0.4mm
Front Min. bending size	2.5
Back Min. cutting size	1.0mm
Feeding precision	±0.03mm
Bending flatness	±0.2
Functions	Bending, cutting, lipping, bridge
Cutting methods	Swing cutting or Auto flat cutting
Optimal pattern format	Dxf format (Auto CAD)
Air supply	0.6mpa
Power supply	380∨ 50Hz(Standard)
Machine total power	1.3KW
Gross weight.	450kgs
Overall dimensions	2700×1050×1350mm(L×W×H)
H.S. Code	8462219000
