EATON VICKERS DANFOSS 02-414529 EN9 KIT FOR SIZE 16 02-414530 EN9 KIT FOR SIZE 25 02-414531 EN9 KIT FOR SIZE 32 02-414532 EN9 KIT FOR SIZE 40

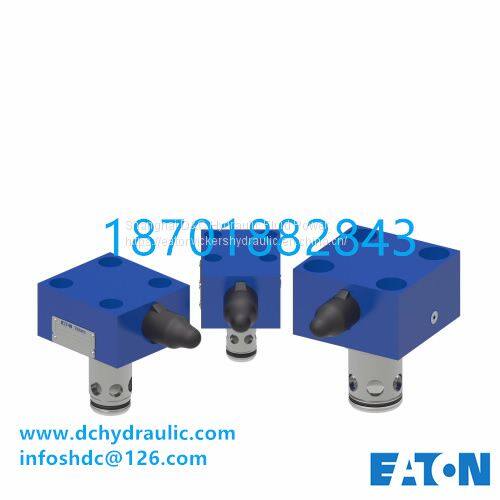

New Slip-in Cartridge Valve series

Slip-in Cartridge Valve series CVCS 16 - 63

 Better performance

 System design fl exibility

 Smaller package size

 Faster cycle times

 Improved reliability

 Effi cient operation

 High pressure capability

 Reduced internal leakage

The NEW range of Eaton Slip-in Cartridge Valves off ers signifi cant advantages to industrial market segments that utilise the

high fl ow and high pressure capability associated with this product type. Specifi cally, this next generation product includes:

 Product range from size 16 - 63

 Best in class rated fl ow - typically improvements between 15-40% higher

 A fl at cover design, which is interchangeable with competitive products

 New additional functions added to the product range

Best in class rated fl ow performance means reduced pressure drops and hence signifi cantly reduced energy consumption.

The new design utilises a fl at cover design concept and is as such NOT directly interchangeable with the existing Slip-in

Cartridge Valve range. However, this new fl at cover is backward compatible with competitive products, hence off ering new

and aftermarket opportunities that were previously not possible.

The new Slip-in Cartridge Valve series follows the same model code concept as the existing valve range, but with a change

to the design number: CVCS – 20 design and CVI – 50 design.

The new generation of Slip-in Cartridge Valves will standardise on 4 poppet area ratios1:1; 1:1.05; 1:1.5 and 1:2

The design includes new options for additional functionality including a normally closed reducer insert, zero side wall

leakage options on all spool sizes 25-63 and an expanded range of functions in sizes 50-63

If you want further information, please contact shanghai dc hydraulic 86-18701882843 infoshdc@126.com

size Inserts Covers CVU units.  Flow L/min         Maximum Pressure bar

NG16 CVI-16 CVCS-16 CVU-16   210 L/min ( 55 USgpm)    350 bar (5000 psi)

NG25 CVI-25 CVCS-25 CVU-25   400 L/min (105 USgpm)    350 bar (5000 psi)

NG32 CVI-32 CVCS-32 CVU-32   600 L/min (158 USgpm)    350 bar (5000 psi)

NG40 CVI-40 CVCS-40 CVU-40   900 L/min (236 USgpm)    350 bar (5000 psi)

NG50 CVI-50 CVCS-50 CVU-50   1600 L/min (420 USgpm)   350 bar (5000 psi)

NG63 CVI-63 CVCS-63 CVU-63   2500 L/min (660 USgpm)   350 bar (5000 psi)

VICKERS PART MODEL CODE

580068 CVI-25-D20-2-M-10 847AN00006A CVI-25-D20-M-50

580069 CVI-25-D20-2-H-10 847AN00020A CVI-25-D20-H-50

580067 CVI-25-D20-2-L-10 847AN00003A CVI-25-D20-L-50

02-156350 CVI-25-D105-L-40 847AN00052A CVI-25-D105-L-50

02-147130 CVI 25 U 40 847AN00022A CVI-25-U-50

02-156365 CVI-25-D10-H-40 847AN00007A CVI-25-D10-H-50

02-156438CVCS-25-C3-B29-W-250-10846AN00015ACVCS-25-C3-W-250-20

 02-156945 CVCS 25-N-B29-10 846AN00002A CVCS-25-N-20

02-411659 CVCS-25-U-B29-W-250-11-EN127 N/A N/A

580022 CVI-16-D20-2-L-10 847AN00027A CVI-16-D20-L-50

580023 CVI-16-D20-2-M-10 847AN00019A CVI-16-D20-M-50

02-156321 CVI-16-D105-L-40 847AN00049A CVI-16-D105-L-50

02-147131 CVI-16-U-40 847AN00046A CVI-16-U-50

02-156797 CVCS-16-N-B29-10 846AN00009A CVCS-16-N-20

02-157565CVCS-16-C3-B29-W-250-11846AN00014ACVCS-16-C3-W-250-20

02-413329 CVCS16U-B29-W250-11-AP08-Z100-EN127 N/A N/A

PART NO. MODEL

02-414529 EN9 Kit for Cartridge Valve size 16

02-414530 EN9 Kit for Cartridge Valve size 25

02-414531 EN9 Kit for Cartridge Valve size 32

02-414532 EN9 Kit for Cartridge Valve size 40

02-414533 EN9 Kit for Cartridge Valve size 50

02-414534 EN9 Kit for Cartridge Valve size 63

EATON VICKERS 760769 CVCS 02-414529 EN9KITFORSIZE16 EN9-KIT-FORSIZE-16 02-110633 CVU-16-SWD3-B29-H-10

EATON VICKERS 846AN00029A CVCS-16-A3-W-20 02-414530 EN9KITFORSIZE25 EN9-KIT-FORSIZE-25 02-110632 CVU-16-SWD3-B29-L-10

EATON VICKERS 846AN00045A CVCS-16-A-M-20 02-414531 EN9KITFORSIZE32 EN9-KIT-FOR-SIZE-32 872189 CVU-16-SWD3-B29-M-10

EATON VICKERS 846AN00004A CVCS-16-A-W-20 02-414532 EN9KITFORSIZE40 EN9-KIT-FOR-SIZE-40 870797 CVU-16-SWD-B29-H-10

EATON VICKERS 846AN00057A CVCS-16-B-20 02-414533 EN9KITFORSIZE50 EN9-KIT-FOR-SIZE-50 870796 CVU-16-SWD-B29-L-10

EATON VICKERS 846AN00118A CVCS-16-C025-20 02-414534 EN9KITFORSIZE63 EN9-KIT-FORSIZE-63 869826 CVU-16-SWD-B29-M-10

EATON VICKERS 846AN00165A CVCS-16-C3-K-250-20 846AN00004A CVCS16AW20 CVCS-16-A-W-20 02-156798 CVCS-16-A-B29-W-10

EATON VICKERS 846AN00033A CVCS-16-C3-W-125-20 846AN00033A CVCS16C3W12520? CVCS-16-C3-W-125-20? 02-157564 CVCS-16-C3-B29-W-125-11

EATON VICKERS 846AN00014A CVCS-16-C3-W-250-20 846AN00014A CVCS16C3W25020? CVCS-16-C3-W-250-20? 02-157565 CVCS-16-C3-B29-W-250-11

EATON VICKERS 846AN00098A CVCS-16-C3-W-250-20-X10 846AN00022A CVCS16C3W35020? CVCS-16-C3-W-350-20? 02-156897 CVCS-16-C3-B29-W-350-11

EATON VICKERS 846AN00022A CVCS-16-C3-W-350-20 846AN00055A CVCS16CK12520 CVCS-16-C-K-125-20 02-311314 CVCS-16-C-B29-K-125-11

EATON VICKERS 846AN00174A CVCS-16-C3-W-350-20-AP08-X00 846AN00043A CVCS16CW12520? CVCS-16-C-W-125-20? 02-157566 CVCS-16-C-B29-W-125-11
