Jadeite, Agate, Precious Jade Machinery and Equipment

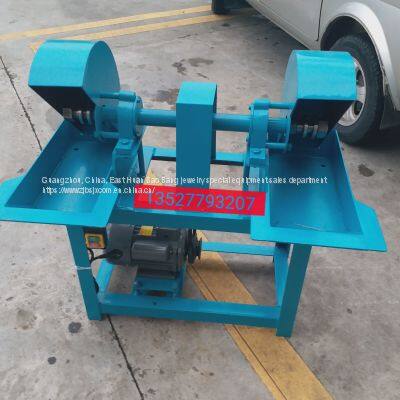

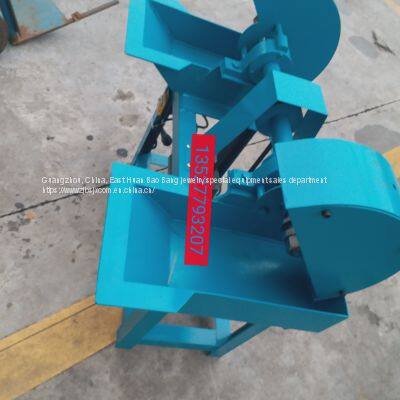

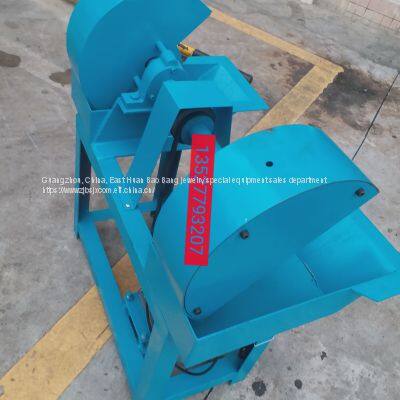

No. 810301003 Zhuoji blanking machine model e3230d

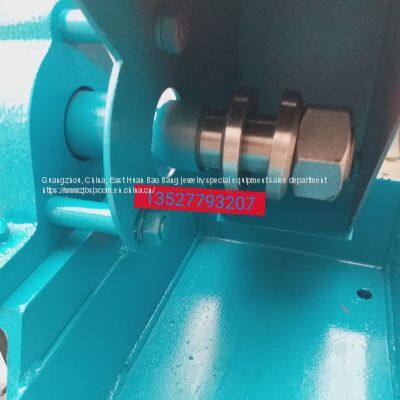

In the long-term gem processing practice of many users and manufacturers, the company has continuously improved and developed the embryo punching machine according to the opinions and needs of users. According to the characteristics of large radial force impact on both ends of the main shaft of the embryo punching machine, a precise structure with high bending strength is formed on the surface of the main shaft, and the linear accuracy of the main shaft is high; The traditional bearing pedestal is abandoned and the independently developed enlarged pig iron bearing pedestal is added to make the spindle run more smoothly. The shaft that can carry corundum grinding wheel and diamond plated grinding wheel should also be matched with the grinding wheel. Generally, the diameter of the shaft of the grinding wheel with a diameter less than 300mm should not be less than 30mm The main shaft is too small, which not only increases the vibration of the grinding wheel, but also accelerates the wear of the grinding wheel, the grinding effect is not good, and the safety factor is also reduced. Therefore, the shaft can be thicker, and the small shaft should not be used for wheel matching There are drainage holes at the bottom, which can remove coolant and wear debris at any time The cooling water supply device of the wheel mill is mostly installed on the top of the splash guard, directly passing through the splash guard to spray coolant to the grinding wheel. The amount of coolant can be controlled by the faucet. Some wheel mills also use a towel with good water absorption to lay on the grinding wheel, and one end is fixed on the splash guard, which can also play a cooling role

Technical parameters:

Input voltage: AC 220v/380v

Output power: 750w/ 1.1kw

Spindle speed: 1100-1900r/min

Overall dimension: 900x500x950

Zhuoji gem Machinery Co., Ltd., Panyu District, Guangzhou, Guangdong Province, was founded in 2003. It is a gem machinery supplier integrating R & D, production and sales. The company has introduced a large number of professional production tools and advanced processes from home and abroad. After more than 10 years of careful design and manufacturing, it has now developed into an enterprise with a mature production, processing, sales and after-sales service system.

The continuous improvement of product quality has made our products highly praised by the industry. The products are sold all over the country, Europe, America, Southeast Asia and other countries and regions. At the same time, it has become an important supplier of many gem processing bases, and is deeply recognized by users at home and abroad.

Welcome customers to visit and talk

Business scope:

Jewelry and gem processing equipment series

1. Automatic processing equipment for gem cutting / cutting sheet

2. Automatic CNC processing equipment / tools for colored gemstones.

3. Automatic CNC processing equipment / tools for gem beads

4. Jade jade bracelet processing equipment / tools

5. Gem glue injection and glue filling optimization processing equipment / tools

6. Vibrating barrel polishing processing equipment / abrasive
