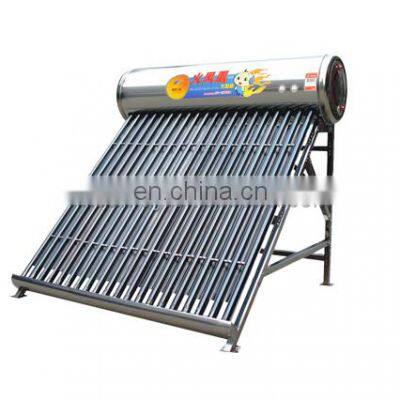

| CE CCC Certificated Stainless Steel Solar Water Heater |

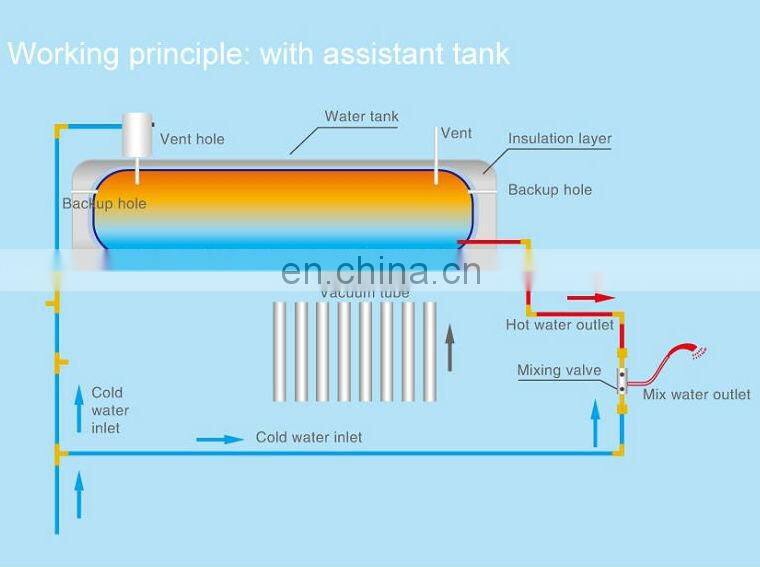

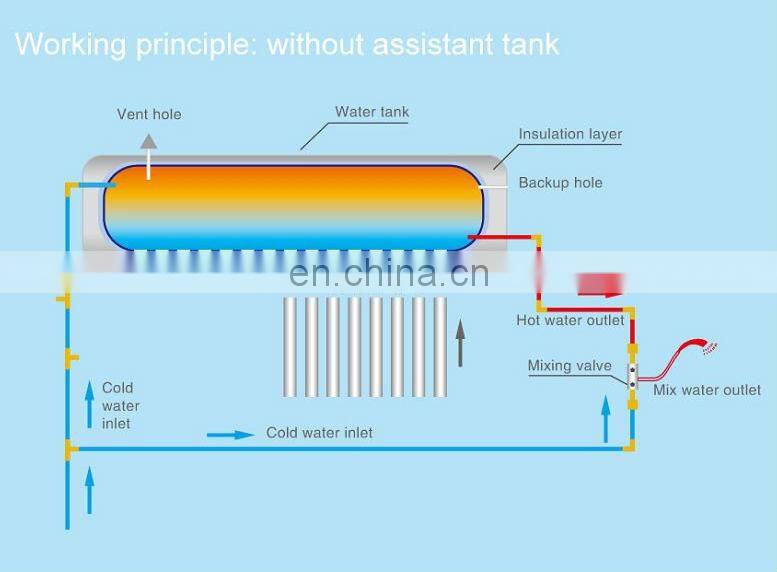

| Working principle of solar water heater |
|
|
|
Solar vacuum tube was evacuated into the tank,the coating inside of tube can absorb more than 92% heat energy fromsunshine,The cold water in water tank flows into the tube and become hot,because of different density between cold andhot,there will be a natural circulation in the tube.Hot water will float back to tank. |
|
|
Specifications: Collector specification: 47-1500,58-1800,70-2000 Inner tank material: Imported food grade stainless steel SUS304-2B Outer tank material: High quality stainless steel 50mm-60mm polyurethane foam with constant temperature Bracket material: Imported high quality stainless steel |
|

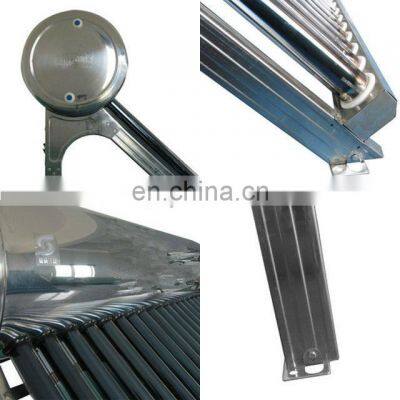

Main parts of tankless water heater |
| insulation layer |
|
|
Specifications of insulation layer: 1. 50-60mm imported polyurethane foaming with high pressure and density(45kg/m3) Capacity:90L 100L 120L 150L 160L 180L 240L 300L Hail resistance: 20-30mm |

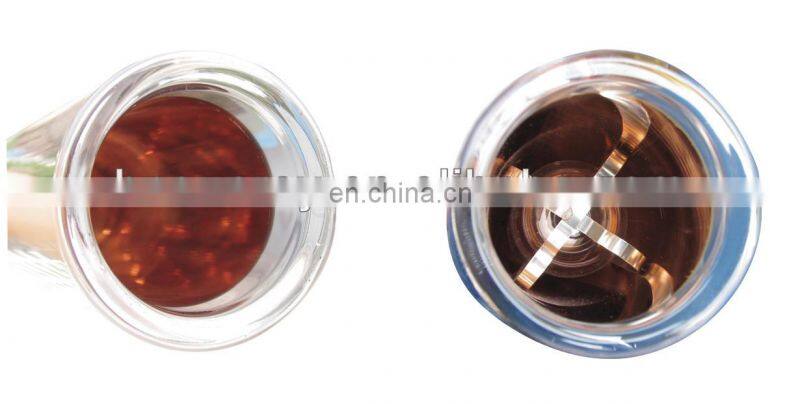

| General vacuum tube |
|
| Three high vacuum tube |
|
|
Specification of vacuum tube: Material of glass:borosilicate glass 3.3 Vacuum degree:5*10-3 Absorption:93% Emittance:0.05 Structure:all glass coaxial double-layer tube Diameter:47mm and 58mm Length:1500mm and 1800mm Transmittance of outer tube:0.91 Stagnation temperature:250 °C Bearing hailstone ability:diameter less than 25mm |

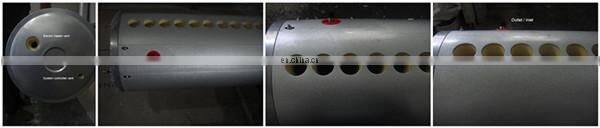

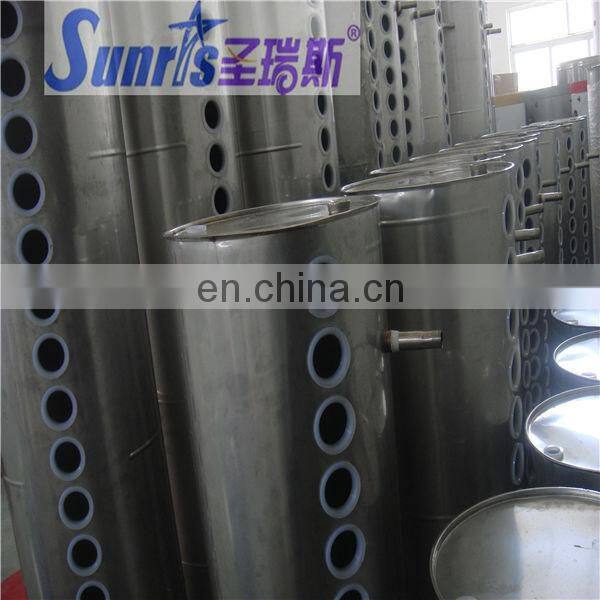

| water tank |
|
|
Specificationof water tank: Inner water tank:imported stainless steel 304-2B with thickness of 0.31mm Diameter of inner tank:320mm and 360mm Diameter od outer tank:420mm and 460mm Outer tank:imported color plate,galvanized plate and stainless steel |
|
Primary Competitive Advantage: 1> CE , CCC , ISO9001 2> Competitive Price 3> Prompt delivery 4> Environmental protection 5> Small order and OEM order accepted |
|
Packing detail: |
|
|
| Our factory |
|
|
| Exhibition |
|
| Certification |
|
