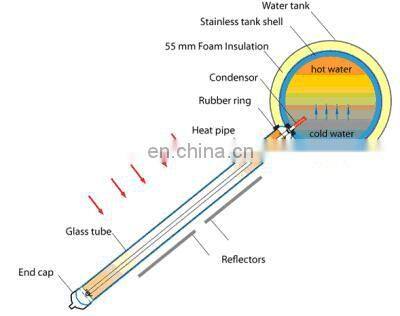

| Working principle of heat solar water heater: |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
1.The pressurized solar water heater tank has no exhaust hole, therefore, it must bear the pressure came from tap water and hot water,when use, the hot water comes out because of water pressure.

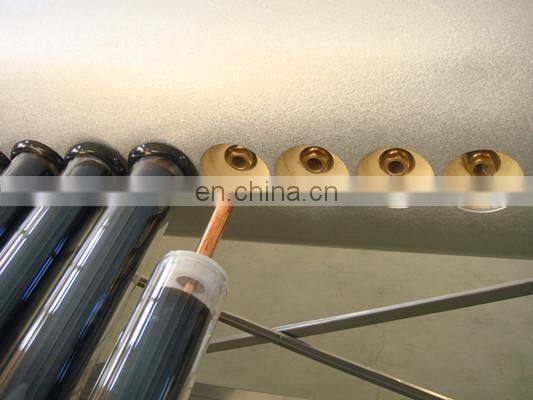

2.Vacuum tube absorbs solar energy, and conductive copper pipe transfers the heat into the pressurized solar water heater tank. In this case, the water inside the tank becomes hot
3.No water in the heat pipe makes the whole system could bear pressure |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Detailed information of heat solar water heater: |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Solar vacuum tube 1> Size: 47*1500mm 58*1800mm 2> Quantity: 15/18/20/24/30/34/36 3> Hail resistance: diameter less than 25mm 4> Outer tube diameter: 47mm more or less 0.7mm 5> Outer tube thickness: 1.6mm more or less 0.1mm 6> Inner tube diameter: 37mm more or less 0.7mm 7> Inner tube thickness: 1.6mm more or less0.1mm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|

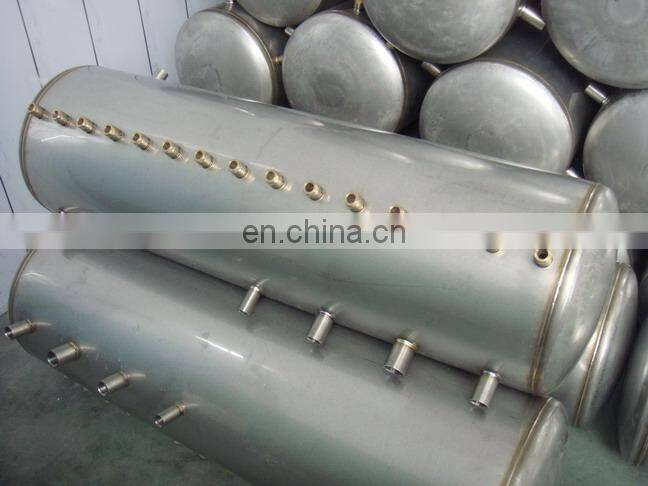

Tank diameter Inner water tank: diameter 320mm and 360mm Outer water tank: diameter 420mm and 460mm Max. pressure bearing: 0.6 M pa Packing: Export Carton Warranty: 15 years 3 year international responsibility for free repairing or exchange due to original quality problems |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Temperature insulation layer 50-60mm imported polyurethane foaming with high pressure and density (45kg/m3) Heat preservation: 72 hours Capacity: 90L 100L 120L 140L 160L 180L 240L 270L 300L 360L |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Advantages of heat solar water heater: |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
1:highly efficient absorber of high performance with daily average efficiency over 50%. 2:start up quickly, heat pipe transfer the heat energy into the storage tank in one direction . 3:withstand pressure of 6 bar, can be connected directly with tap water . 4:No water inside the evacuated tubes ,the solar water heater can still in service even with several tubes breakage 5:Highly efficient insulation with polyurethane foam 6:simple structure , easy to assemble and install ,diffuse flat plate reflector can be assenbled easily with its module sturcture 7:can be used all year round in the cold climate 8:can be used together with Auxiliary electric boost 9:long service life ,can be used as long as 15 years |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Packing details of heat solar water heater: |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Exhibition: |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||

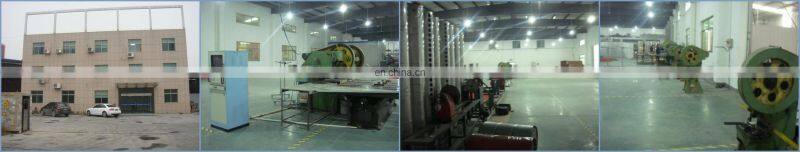

| Our factory: | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Certification: | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||
