L99dz100gtr Professional Power Management (PMIC) st Original Stock

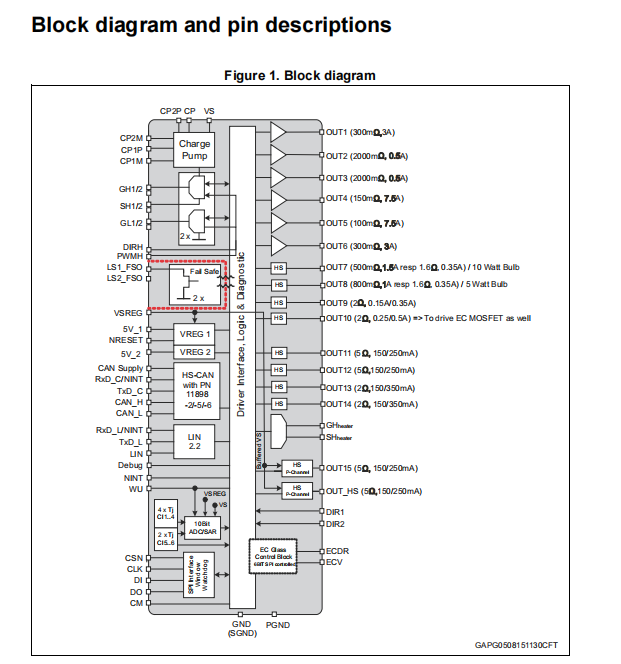

Features

 AEC Q100 compliant qualified
 1 half bridge for 7.5 A load (RON = 100 mΩ)  1 half bridge for 7.5 A load (RON = 150 mΩ)  2 half bridges for 0.5 A load (RON = 2000 mΩ)  2 half bridges for 3 A load (RON = 300 mΩ)  1 configurable high-side driver for up to 1.5 A
(RON = 500 mΩ) or 0.35 A (RON = 1600 mΩ)
load
 1 configurable high-side driver for 0.8 A
(RON = 800 mΩ) or 0.35 A (RON = 1600 mΩ)
load
 3 configurable high-side drivers for
0.15 A/0.35 A (RON =2 Ω)  1 configurable high-side driver for 0.25 A/0.5 A
(RON = 2 Ω) to supply EC Glass MOSFET
 4 configurable high-side drivers for
0.15 A/0.25 A (RON = 5 Ω)  Internal 10bit PWM timer for each stand-alone
high-side driver
 Buffered supply for voltage regulators and 2
high-side drivers (OUT15 & OUT_HS / both
P-channel) to supply e.g. external contacts
 Programmable soft-start function to drive loads
with higher inrush currents as current limitation
value (for OUT1-6, OUT7, OUT8 and
OUT_HS) with thermal expiration feature
 All the embedded outputs come with protection
and supervision features:
– Current Monitor (high-side only)
– Open-load
– Overcurrent
– Thermal warning
– Thermal shutdown
 Fully protected driver for external MOSFETs in
H-bridge configuration or dual Half bridge
configuration
 Fully protected driver for external high-side
MOSFET
 Control block for electro-chromic element
 Two 5 V voltage regulators for microcontroller
and peripheral supply
 Programmable reset generator for power-on
and undervoltage
 Configurable window watchdog
 LIN 2.2a compliant (SAEJ2602 compatible)
transceiver
 Advanced high speed CAN transceiver (ISO
11898-2:2003 /-5:2007 and SAE J2284
compliant) with local failure and bus failure
diagnosis and selective wake-up functionality
according to ISO 11898-6:2013
 Separated (Isolated) fail-safe block with 2 LS
(RON = 1 Ω) to pull down the gates of the
external HS MOSFETs
 Thermal clusters
 A/D conversion of supply voltages and internal
temperature sensors
 Embedded and programmable VS duty cycle
adjustment for LED driver outputs
Applications

Door zone applications.
