2-electrode Spark Gap - GXP Series







Product Description

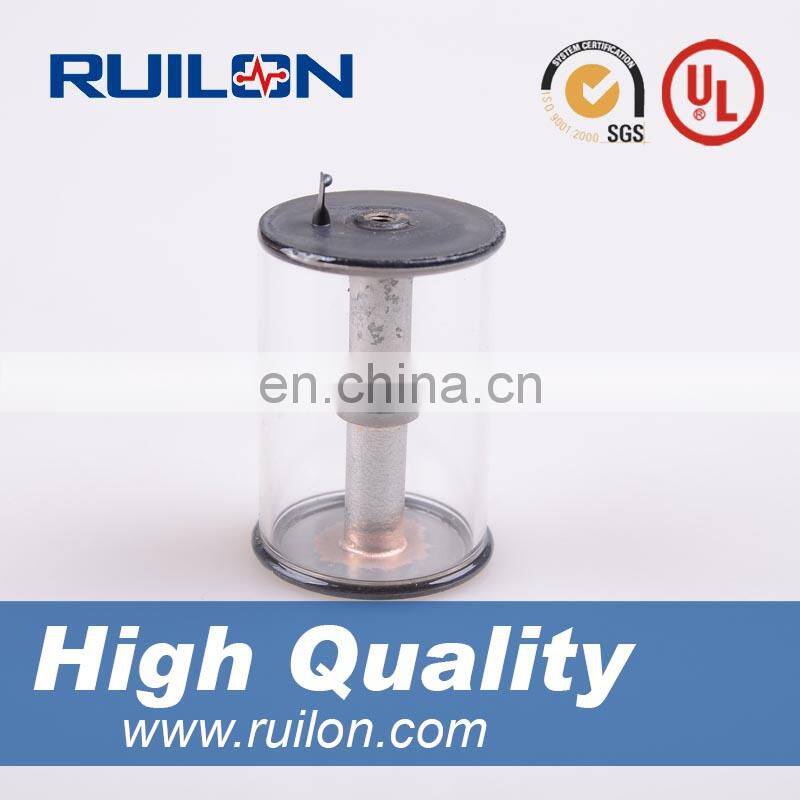

The GXP Series of 2-electrode spark gaps are gas discharge tubes, hermetically sealed in a glass/metal envelope. Tubes with a DC breakdown voltage in the range 0.50kV to 12kV are available. This is signed by a numeral or numerals following the type letters and is expressed in hundreds of volts.



GXP Series Spark Gap Tube 30kA 2-electrode Single-shot Pulse Generators Spark Gaps for High energy switches

Application:



1. Single-shot pulse generators
2. Turbine engine ignition circuits
3. Medical lithotripsy
4. High energy switches



Electrical And Physical Characteristics



Charge transfer, single discharge(8/20 ms waveshape)

 0.5C max
Cumulative charge transfer

6000C at 0.81mCper discharge at 1 Hz
Operating temperature -55 to +125°C

Mechanical shock, half-sine(to B.S. 2011 test Ea)

 40g for 4ms
Mounting screw mounted
Radioactivity

tritium (3H), 5.44 MBq(147 mCi) max per device



Electriacl Characteristics:

 GXP Series Spark Gap Tube 30kA 2-electrode Single-shot Pulse Generators Spark Gaps for High energy switchesGXP Series Spark Gap Tube 30kA 2-electrode Single-shot Pulse Generators Spark Gaps for High energy switches

GXP Series Spark Gap Tube 30kA 2-electrode Single-shot Pulse Generators Spark Gaps for High energy switches



OUTLINE (All dimensions in millimetres)





GXP Series Spark Gap Tube 30kA 2-electrode Single-shot Pulse Generators Spark Gaps for High energy switchesGXP Series Spark Gap Tube 30kA 2-electrode Single-shot Pulse Generators Spark Gaps for High energy switches

GXP Series Spark Gap Tube 30kA 2-electrode Single-shot Pulse Generators Spark Gaps for High energy switches



GXP Series Spark Gap Tube 30kA 2-electrode Single-shot Pulse Generators Spark Gaps for High energy switches

GXP Series Spark Gap Tube 30kA 2-electrode Single-shot Pulse Generators Spark Gaps for High energy switches

GXP Series Spark Gap Tube 30kA 2-electrode Single-shot Pulse Generators Spark Gaps for High energy switches
