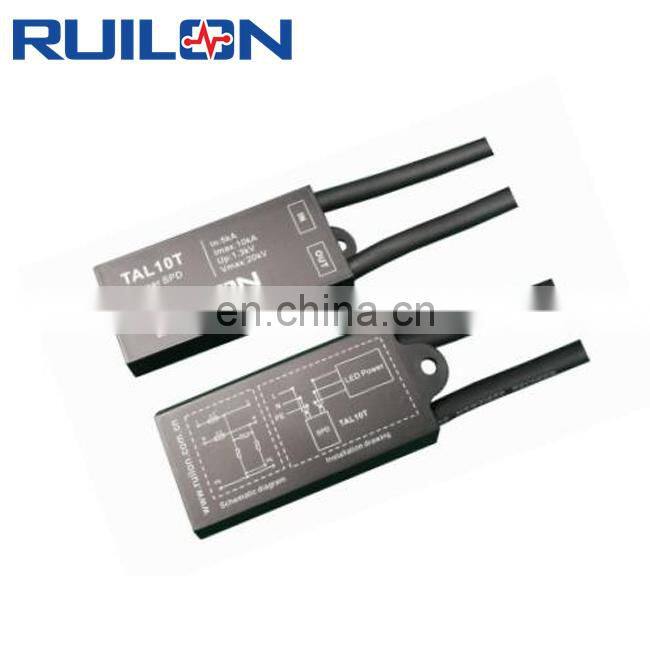

Ruilon TAL10T Surge Protective Devices for LED Power Supply System 10kA Surge Lightning Protection Module

LED street light power SPD, used to protect the LED Driver input port, waterproof and dustproof, IP67 protection level, class II power SPD. Adopt common mode, differential mode, with leakage current full protection and overcurrent cut-off function.

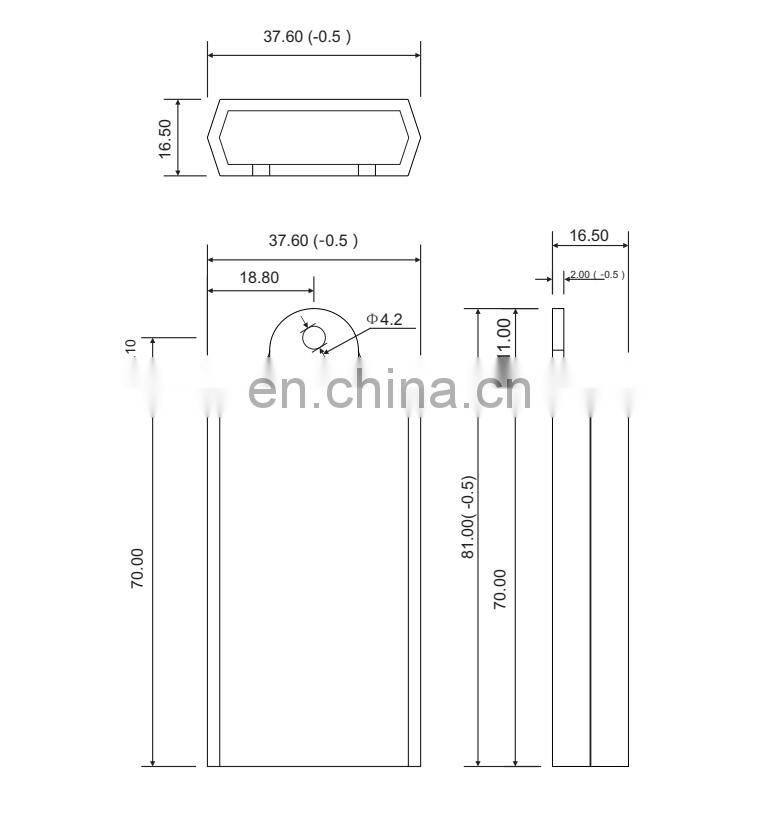

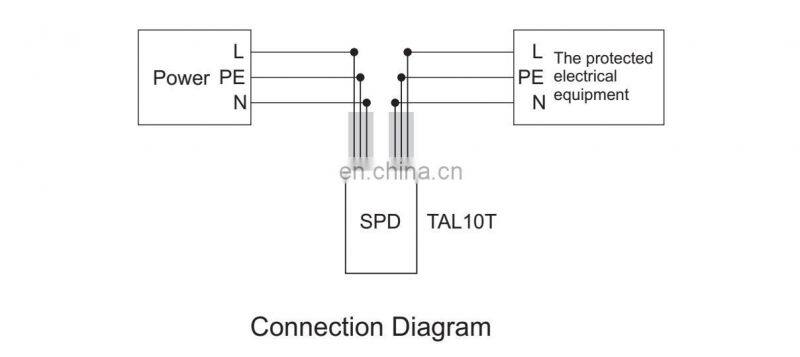

Size 81*37.6*16.5mm, in series connection, with L, N, PE lines, the connection is very convenient. The maximum discharge current is 10kA/line, the nominal discharge current is 5kA/line, and the withstand voltage is 20kV, which is especially beneficial to protect LED street lamps from lightning strikes and surge damage.

Advantages: Durable, wide range of applications, high repurchase rate, cost-effective, for the global market.

External high energy surge suppressor

Built-in UVT technology, hexagonal stable structure design, covering 10kV, 20kV surge protection level, lower residual voltage makes the protected equipment safer, used in commercial lighting, new energy, security and other industries.

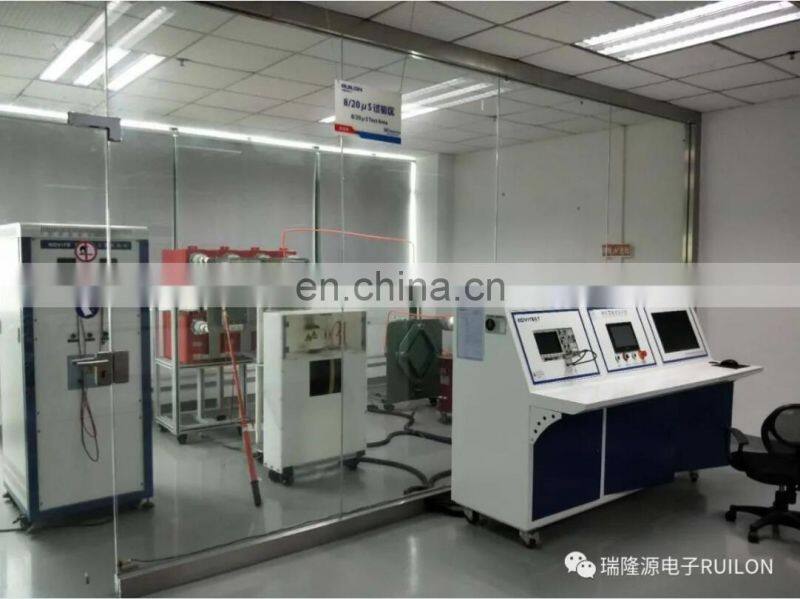

Simulated Lightning Strike Lab:

Test Data:

When the surge is 10kA, the number of lightning strikes that can be withstood is 2 times.

When this surge is 5kA, the number of lightning strikes that can be withstood is 100 times.

Professional circuit protection manufacturer
Committed to providing global customers with world-renowned overvoltage and overcurrent protection components and complete circuit protection solutions.
