Built-in Hall Effect Ct Pv Combiner Box 16 18 20 24 String Solar Combiner Box Monitor Device
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
1994
Annual Export Value:
US$1.5 Million - US$2.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
RS485 330mm 16 String Use in Array Pv Solar Combiner Box Monitor Device With Built-in Hall Effect CtNegotiableMOQ: 1 -
RS485 330mm 16 String Combiner Box Array Pv Smart Photovoltaic Confluence Monitoring DeviceNegotiableMOQ: 1
-
Voltage Measurement 50-1200V DC 12 String Use in Array Pv Solar Combiner Box Monitor Device With Built-in Hall Effect CtNegotiableMOQ: 1
-
12/16/20/24 Channel Multi Channel Din Rail Smart Solar String Monitor Device For Pv Combiner BoxNegotiableMOQ: 1
-
20 Channel Multi Channel Din Rail Smart Solar String Monitor Device For Pv Combiner BoxNegotiableMOQ: 1
Products Description

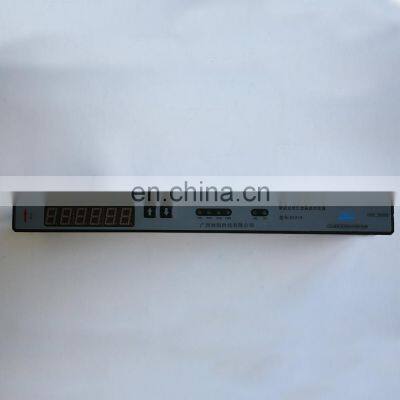

Photovoltaic Combiner Box Monitor, DK818-24, is specially applied to intelligence PV junction box for monitoring the operating status of the PV cells, measuring the current and voltage of the PV cells, collecting status of Surge protection Device (SPD) and DC breaker. Current measurement uses Hall Effect to collect data, which are isolated collection and threaded installation to increase reliability of junction box. This device can not only displays measured and collected data and status of device, but also can connects industrial equipments and computers through RS485 interface to constitute a measurement and control system.
Technical parameter
Model | DK818-20 |
Application | Smart Photovoltaic Confluence Monitoring Device |
DC Voltage | 1 channel, 50-1200V DC |
DC Current | 1-16 channel forward and reverse DC0-20A, PV current detection, total current |
DC Power | 1-16 channel forward and reverse power |
Communication | 1 channel RS485 communication port, MODBUS-RTU communication protocol, can be connected to the PC monitoring system. |
Temperature Measurement | 1 internal environmental temperature, range: -55 to +125 ℃ |
Display | 6 digits nixie tube, power save mode after 5 min. without any operating, press any key to normal mode |
Remote Signaling | 2 digital input |
Parameters Setting | The following parameters can be set by buttons: 1. Device address. 2. Communication rate. 3. Parity bit. |
Size | 343mm×30mm×65mm (L ×W×H) |
Auxiliary Power Supply | DC 5V (Range: 4.90~5.10V) |
Power Consumption | < 5 W |
Communication | RS485 Modbus RTU protocol |
Communication Speed | 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 (unit: bps) changeable |
Communication Verify | Can be set (0: none, 1: 1stopBit odd, 2: 1stopBit even) |
Communication Medium | 1.0 square shielded twisted pair, 1200 m communication distance, the maximum nodes: 128 |
Digital Input | Passive dry node |
# of Input Voltage | 1 |
Range of Voltage Measurement | 50 – 1200 V DC |
# of Input Circuits | 16 |
Range of Input Current | 0 – 20A |
Measurement Accuracy | Voltage, Current : 1% FS (25℃) |
Temperature Coefficient | 250ppm/K |
Working Temp. | -35 ~70℃ |
Storage Temp. | -40 ~ 80℃ |
Relative Humidity | 5% - 95% Non-Condensing |
Response Time | 1 s |
Protection Level | Whole device IP30 |
Altitude | ≤3000 m, special order for over 3000m |
Insulation Resistance | ≥100MΩ |

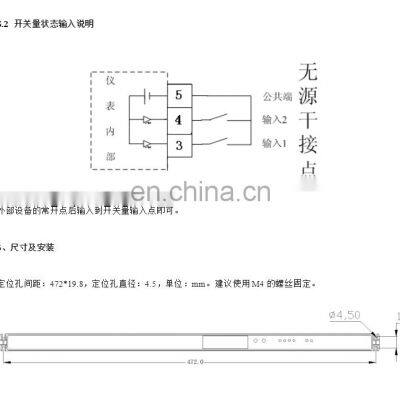

The State of Switch Input Wiring Diagram
The input of this device is passive node, and the device supply power for itself so that no external power is need. Connect the
passive dry contact of the outside device to the input of the switch via the common node when wiring.
passive dry contact of the outside device to the input of the switch via the common node when wiring.
