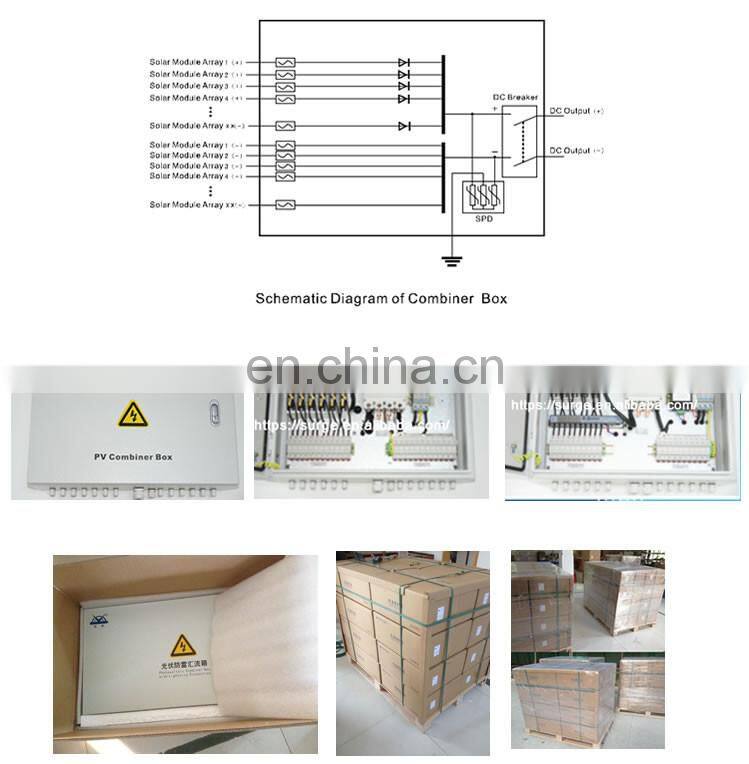

PV Array Circuit Combiner DC Convergence Box for Solar
Feature
- Multi solar panel array input in the same time.
- Equipped with PV DC high voltage lightning protection module.
- High voltage lightning protection circuit breaker inside,safe and reliable.
- Lightning strike record function.
- Current, voltage, power status real time display.
- Protection level of IP 65, meet the use requirements for outdoor installation.
- Remote monitoring function(optional).
Technical Paramter
| Type | DK-PV4008 | DK-PV4012 | DK-PV4016 |
| Dimension | 550*400*200mm | 700*400*200mm | 850×400×200mm |
| PV panel input line quantity | 8 | 12 | 16 |
| Input Voltage | DC 80~1000V | ||
| Max currents for each line | 15A | ||
| Max output currents | 100A | 160A | 200A |
| DC circuit breaker currents | 100A | 160A | 200A |
| Input line waterproof connector | PG7 (Recommend to use 4 mm2 PV cable) | ||
| Output line | PG21(Recommend to use 50 mm2 PV cable) | ||
| Input lightning surge protection parameters | |||
| In (8/20us) | 10kA | ||
| Imax (8/20us) | 20kA | ||
| Up | ≤3.2kV | ||
| Output lightning surge protection Parameters | |||
| In (8/20us) | 40kA | ||
| Imax (8/20us) | 80kA | ||
| Up | ≤3.5kV | ||
| Working Circumstance | |||
| Working Temperature | -35℃~+70℃ | ||
| Relative Humidity | 0%~98% | ||
| Housing material protection level | IP65 | ||
Output Lightning Protection
When lightning occurs, ordinary combiner boxes tend to appear large scale fusing phenomenon for the DC fuse, which can influence for the whole power system to
work normally, or ever can lead to the equipments damages. DK-PV serial PV lightning
protection combiner box, its input terminal has discharge device which can effectively
protect the DC fuse from the damage of lightning over-voltage and over current, to make
surge the PV power system can long-term work steadily.
Anti-Reflection Function
DK-PV serial lightning protection combiner box is designed with large power anti
diode which make it can long-term work steadily in the harsh environment such as high
temperature environment, and can make sure when the PV array is covered or occurs
damages, it can prevent the countercurrent phenomenon and avoid the damages of PV
array.
Application Scope
Lightning protection of solar power plant, PV array yard.
