Guangxi Dikai Power Signal Surge Protector Single BNC Terminal Lightning Protection
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
1994
Annual Export Value:
US$1.5 Million - US$2.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Guangxi Dikai F Head Antenna Lightning Protection/antenna Feeder SPD for HomeNegotiableMOQ: 1 -
Coaxial Surge Protector Rf Surge Arrestor Tnc Antenna Surge ArresterNegotiableMOQ: 1
-
Coaxial Surge Protector Rf Surge Arrestor Tnc Antenna Surge ArresterNegotiableMOQ: 1
-
Lighting Arrestor Outdoor Surge Protector Lightning Arrestor N Type Female To N Type Male Lightning ProtectionNegotiableMOQ: 1
-
New Design Antenna Feeder Surge Protection Device TNC Male to Female Surge ProtectorNegotiableMOQ: 1
Guangxi dikai power signal surge protector single BNC terminal lightning protection
Products Description
Video/radio signal surge protective device is designed according to the IEC standard and national standard. It can be used for single BNC terminal, 16 BNC terminals, F terminal and N terminal lightning protection.
This product is suitable for the monitoring system BNC terminal, matrix BNC terminal, optical transceiver BNC terminal, video camera BNC terminal as lightning surge protection.
This product is produced according to the discharging, clamping, filtering principles, that realized high efficient discharging lightning currents and resistance of EMP shock which caused by lightning currents. It has advantages of multi classes’ protection, extremely low residual voltage, perfect transmission performance, quick respond, large discharging capacity, simple installation and connection, easy maintenance.
DK Company can produce this product with different classes working voltage and various number of terminals according to the customer’s requirement. The 8/20us maximum discharging currents (Imax) can reach 10kA.
This product is suitable for the monitoring system BNC terminal, matrix BNC terminal, optical transceiver BNC terminal, video camera BNC terminal as lightning surge protection.
This product is produced according to the discharging, clamping, filtering principles, that realized high efficient discharging lightning currents and resistance of EMP shock which caused by lightning currents. It has advantages of multi classes’ protection, extremely low residual voltage, perfect transmission performance, quick respond, large discharging capacity, simple installation and connection, easy maintenance.
DK Company can produce this product with different classes working voltage and various number of terminals according to the customer’s requirement. The 8/20us maximum discharging currents (Imax) can reach 10kA.
Technical Parameter | Video | ||||||
Nominal Working Currents (A) | 0.25 | ||||||
Nominal Discharging Currents 8/20 us (kA) | 5kA | ||||||
Maximum Discharging Currents 8/20 us (kA) | 10kA | ||||||
Protection Voltage Class under the Nominal Discharging Currents (V) | ≤20 | ||||||
Protection Voltage Class under 1kV/uS (V) | 8V | ||||||
Responds Time | ≤1ns | ||||||
Insertion Loss (dB) | ≤0.3 at 30MHz | ||||||
Data Transfer Rate (bps) | 16M | ||||||
Parasitic Capacitance (pF) | ≤50 | ||||||
Impedance | ≤75Ω | ||||||
Input Impedance | ≤4Ω | ||||||
Protection Model | Core-Shielding-PE | ||||||

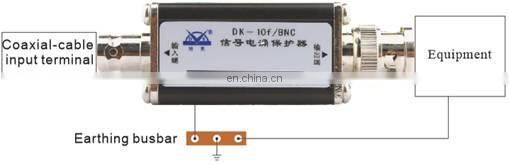

Way of Connection | Cascade | ||||||
Type of Connecting Terminal | BNC-K/J | ||||||

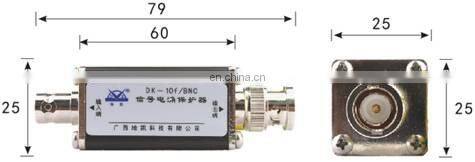

Dimension | 79X25X25mm | ||||||
Weight (kg) | 0.1kg | ||||||
Working Temperature | -25℃～+70℃ | ||||||
Art. No. | 1009002 | ||||||
Advantage
1.Non-interfering, micro-insertion loss.
2.Low voltage protection, quick respond.

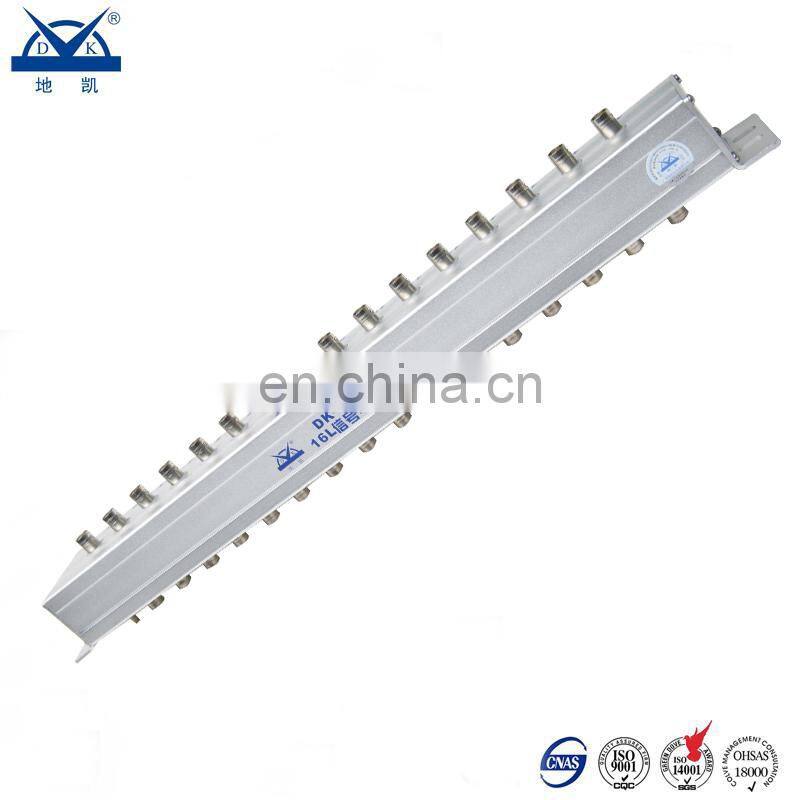

3.The product with 16 terminals can be installed on standard hanger.
4.Simple installation and maintenance.
2.Low voltage protection, quick respond.
3.The product with 16 terminals can be installed on standard hanger.
4.Simple installation and maintenance.
Application Scope
1. Video line of monitoring system.
2. BNC connector of monitoring system.
3. CATV,CCTV.
4. Lightning protection of other video line signal equipment.
2. BNC connector of monitoring system.
3. CATV,CCTV.
4. Lightning protection of other video line signal equipment.

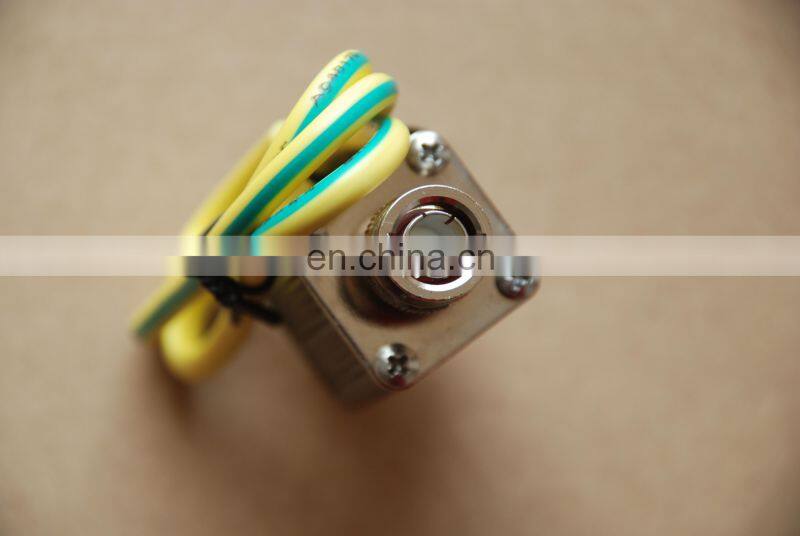

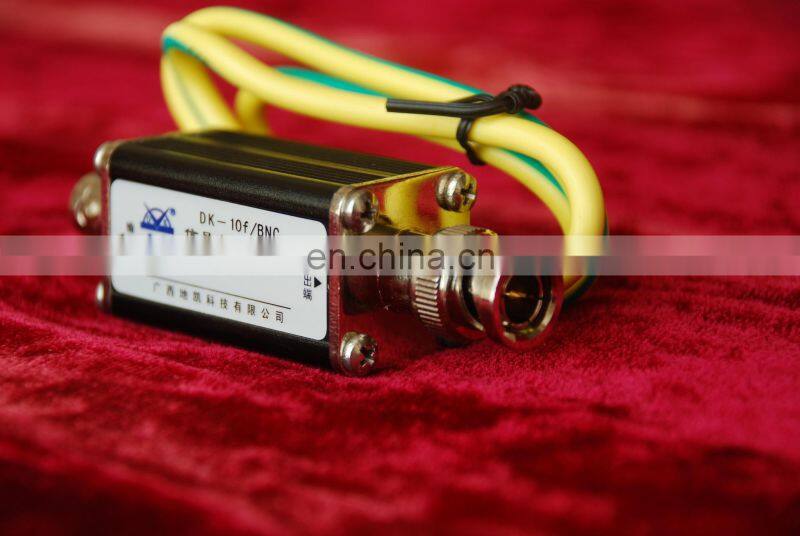

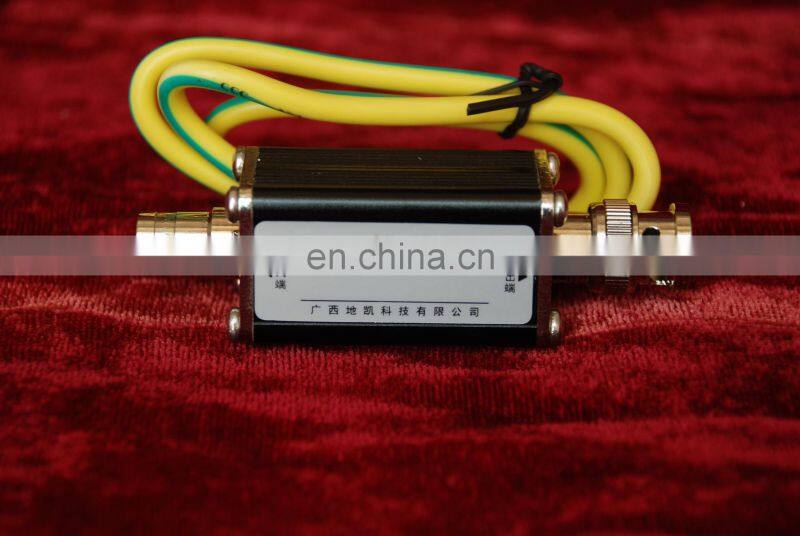

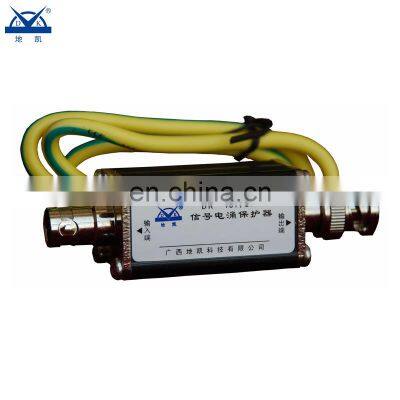

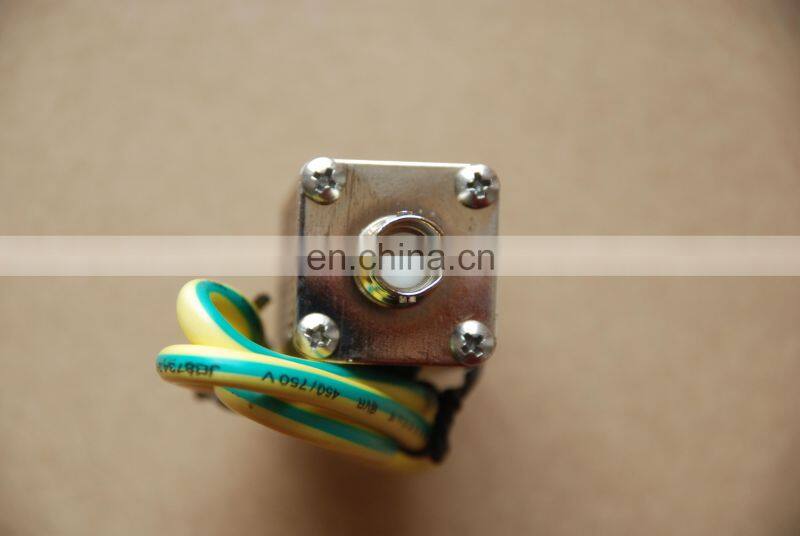

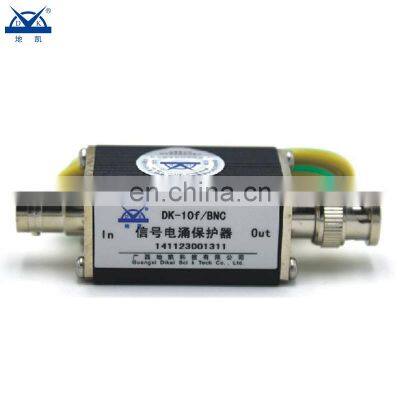

External View
Company Profile
Certifications
Product packaging
FAQ
Q：Are you factory or Trading Company?
A：We are a factory with 32 years experience, we can provide customers with OEM, ODM customization and more competitive prices.
Q: Which certification or standard do you have?
A: CE/ISO9001/CQC/CNAS and so on.
Q: How to control product quality?
A: Our company has our own laboratory and will be randomly selected to test quality for large quantities. Every product will be tested for voltage and current which need pass the test.
Q: About the delivery time.
A: 7-30 days, depends on the quantity. Plz confirm the delivery time with sales-managers when you order.
Q. Can I get discounts?
A: Yes, for big order, old customer and frequent customers, we give reasonable discounts.
Q: Which Shipment way is available?
A:Ocean shipping, Air transport, express delivery.
Q: Which certification or standard do you have?
A: CE/ISO9001/CQC/CNAS and so on.
Q: How to control product quality?
A: Our company has our own laboratory and will be randomly selected to test quality for large quantities. Every product will be tested for voltage and current which need pass the test.
Q: About the delivery time.
A: 7-30 days, depends on the quantity. Plz confirm the delivery time with sales-managers when you order.
Q. Can I get discounts?
A: Yes, for big order, old customer and frequent customers, we give reasonable discounts.
Q: Which Shipment way is available?
A:Ocean shipping, Air transport, express delivery.
