N male to N female RF lightning arrester antenna surge protector
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Best price antenna feeder surge protective device BNC surge protector for antenna transmission system
-
Antenna feeder rf N Type Surge Protector Device
-
Outdoor N-Male/Female Antenna Feeder SPD/Surge Protector/Lightning Arrester for Wholesale
-
Antenna feeder transient voltage surge suppressor surge protector for radio transmission
-
Antenna feeder transient voltage surge suppressor surge protector for radio transmission
-
DK Coaxial N male to female Antenna Feeder surge protective device
Product Description

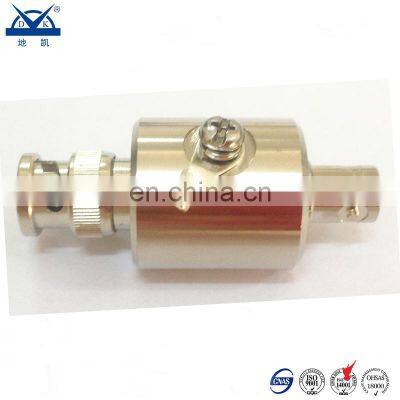

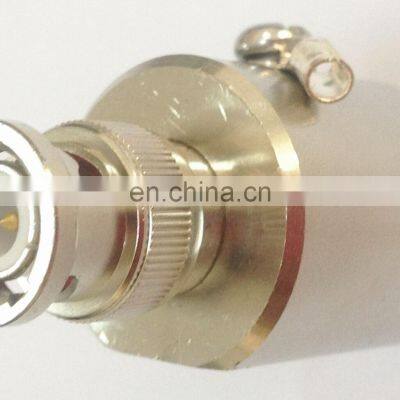

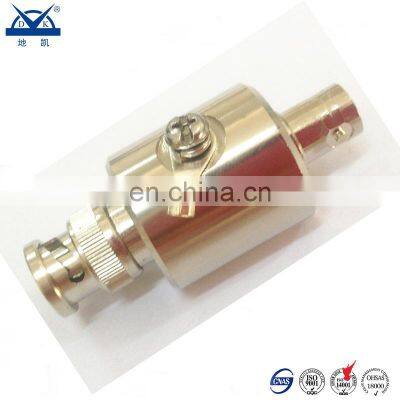

surge protection BNC type rf surge arrester antenna lightning arrester for wholesale
Introduction
DK-f n Antenna Feeder SPD adopts metal shell material. With the advantages of good sealing, anti-radiation, good shielding, easy installation, dust prevention and anti-corrosion, it is suitable for cable TV, SATV, repeater station and other equipment of antenna feeder system. It can protect the equipment of antenna feeder system from permanent damage or instantaneous interruption because of induced over-voltage, over-current and other instantaneous surge voltage produced by lightning stroke or industrial noise. DK-f n Antenna Feeder SPD has the characteristics of wide working frequency, low insertion loss, low residual voltage, fast respond and long life, etc.
Model | Working Frequency (MHz) | Insertion loss(Db) | VSWR | In (8/20μs) | Imax (8/20μs) | Up (8/20μs) | Port type |
DK-f BNC Type | 0-3.5MHz | ≤0.3 | ≤1.2 | 10kA | 20kA | ≤150V | F-J/K |
Working Principle
DK-f n Antenna Feeder SPD adopts band-pass filtering theory to design and manufacture elaborately. High quality filter network and withstanding surge current discharge channel form the Antenna Feeder SPD with fine performance.
Installation Instruction and Precaution
a. DK-f n Antenna Feeder SPD is connected between antenna transmission system and protected equipment in series.
b. According to the connector type of antenna feeder and protected equipment, please select the right connector, connect to the protected equipment, and make sure the connector is connected firmly.

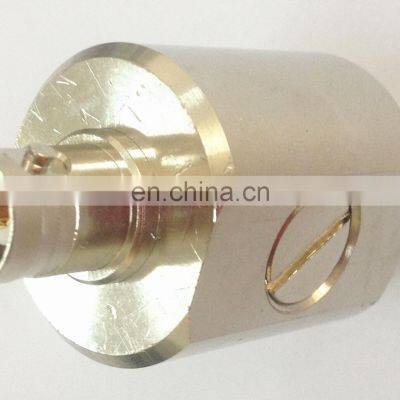

c. The mark in bottom of the product is grounding screw. There is wiring port which is used for connecting the grounding wire and antenna feeder SPD. The grounding wire is better to use 4mm2 copper wire, or to use grounding bar. Ground wire should be thick and short as possible to reduce the ground resistance(better less than 10Ω). During using, please also check grounding system to avoid the grounding wire opening circuit or being over-length.
Maintenance
No need special maintenance. When failure, replace the internal gas discharge tube is OK.
Application Scope
Suitable for surge protection of cable TV, SATV, repeater station and other equipment of antenna feeder system.
Ordering Instruction
a. Before placing an order, please must be clear the working frequency of electronic equipment, connector of antenna feeder and equipment..
b. Any special requirements(e.g. connector, working frequency), please contact with us, so that we can produce the customized product according to your requirements.
c. Any problems, please feel free to contact us. We will serve you wholeheartedly.
Company Profile
Certifications
Product packaging
surge protection BNC type rf surge arrester antenna lightning arrester for wholesale
Shall you have any questions, please feel free to contact us.
