Dikai RJ11 Telephone Modem Surge Protector Thunder Arrester

Guangxi Dikai Sci & Tech Co., Ltd.
Dikai RJ11 Telephone Modem Surge Protector Thunder Arrester thumbnail-1
Dikai RJ11 Telephone Modem Surge Protector Thunder Arrester thumbnail-2
Dikai RJ11 Telephone Modem Surge Protector Thunder Arrester thumbnail-3
Dikai RJ11 Telephone Modem Surge Protector Thunder Arrester thumbnail-4
Dikai RJ11 Telephone Modem Surge Protector Thunder Arrester thumbnail-5
Dikai RJ11 Telephone Modem Surge Protector Thunder Arrester photo-1
Dikai RJ11 Telephone Modem Surge Protector Thunder Arrester photo-2
Dikai RJ11 Telephone Modem Surge Protector Thunder Arrester photo-3
Dikai RJ11 Telephone Modem Surge Protector Thunder Arrester photo-4
Dikai RJ11 Telephone Modem Surge Protector Thunder Arrester photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
1994
Annual Export Value:
US$1.5 Million - US$2.5 Million
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Outdoor Ethernet Thundering Protection Surge Protector PoE RJ11 Network Port Thundering Arrester
Products Description
DK-nDCt/RJ11 telephone line series signal surge protective device (SPD) is designed according to IEC standard. It is suitable for lightning protection of telephone, SPC exchange, fax machine and ISDN equipment. With features of integration metal structural design, high discharge capacity and fast response, it can effectively ensure the equipment to work properly.
Maximum Continuous Operating Voltage Uc
 220V
 Llimiting Voltage
≤30V
 Nominal Discharge Current In(8/20µs)
 5kA
 Maximum Discharge Current Imax(8/20µs)
 10kA
 Respond Time tA
 ≤1ns
 Type of Connector
 RJ45
 Material of Shell
 Aluminum Alloy
 Protection Level of Outer Shell
 IP20
 Dimension
 88*45*25mm
 Working Temperature
 –25~＋70℃
 Relative Humidity
 ≦95%RH
Details Images
Item No. are available
Item No.
Protected Core Wire
Transmission Rate
DK-nDCt/RJ11 200
3, 4
2Mbps
DK-nDCt/RJ11 200-20D
1,2,3,4
2Mbps

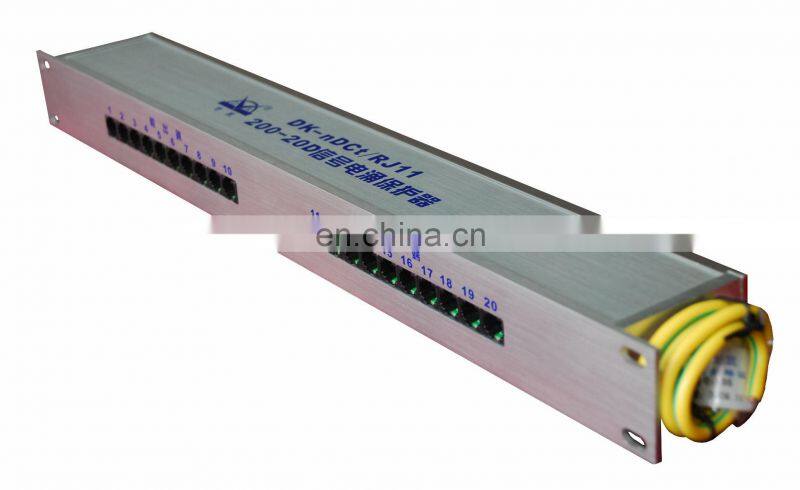

DK-nDCt/RJ11 200-30D
1,2,3,4
2Mbps

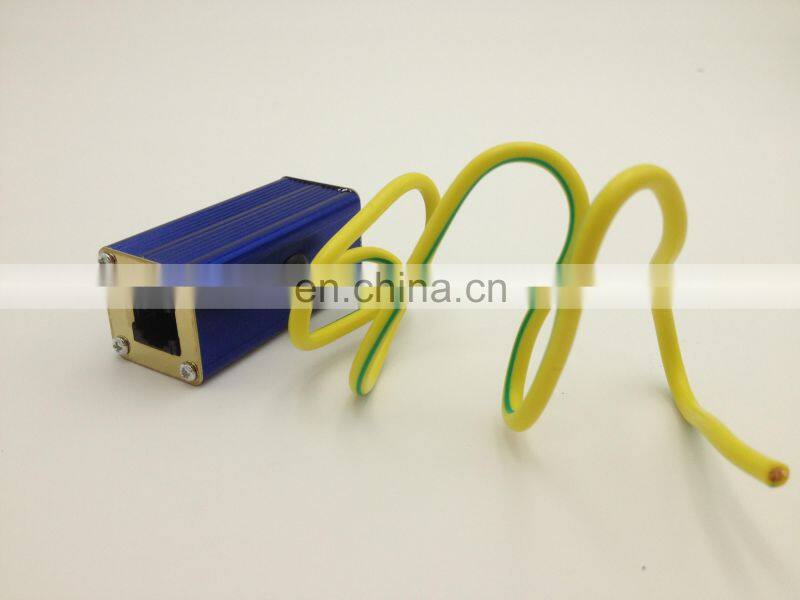

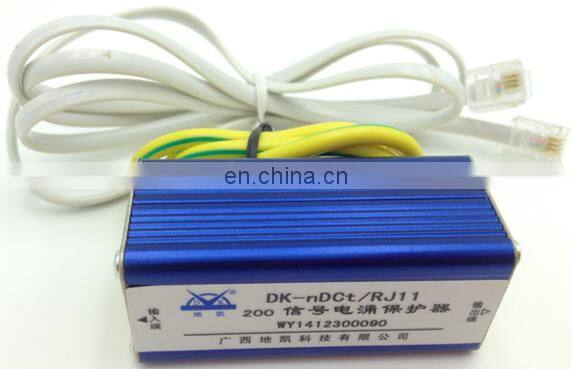

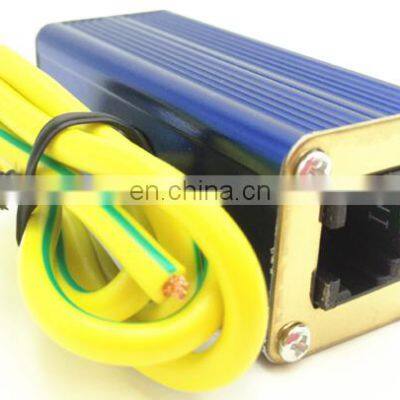

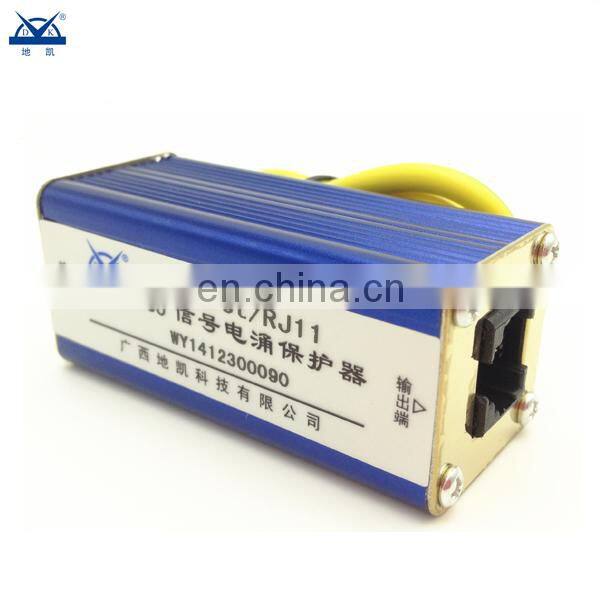

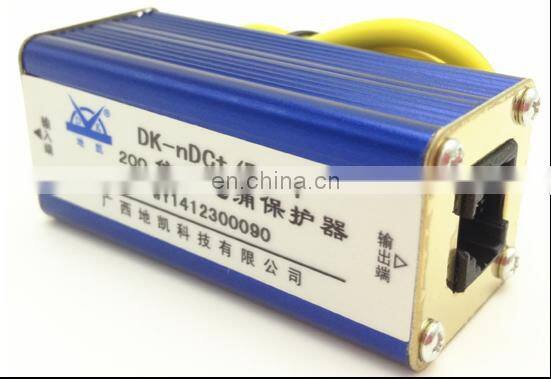

External View

Application Scope

1) Lightning protection for the network exchange board RJ45 connector in the computer room.
2) Lightning protection for the network card.
3) Lightning protection for the floor exchange board.
4) Lightning protection for other network equipment with RJ45 connector.
5) Cat5, Cat6 lightning protection.
