Product Description
1.Standard: IEC 61643-11:2012/EN 61643-11:2011.

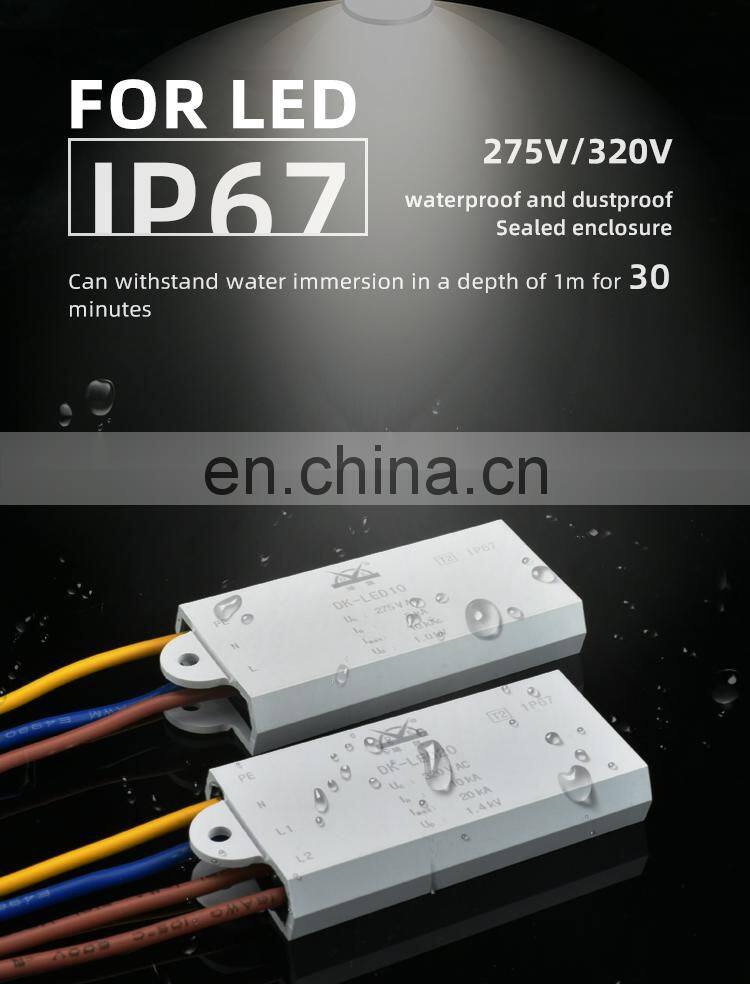

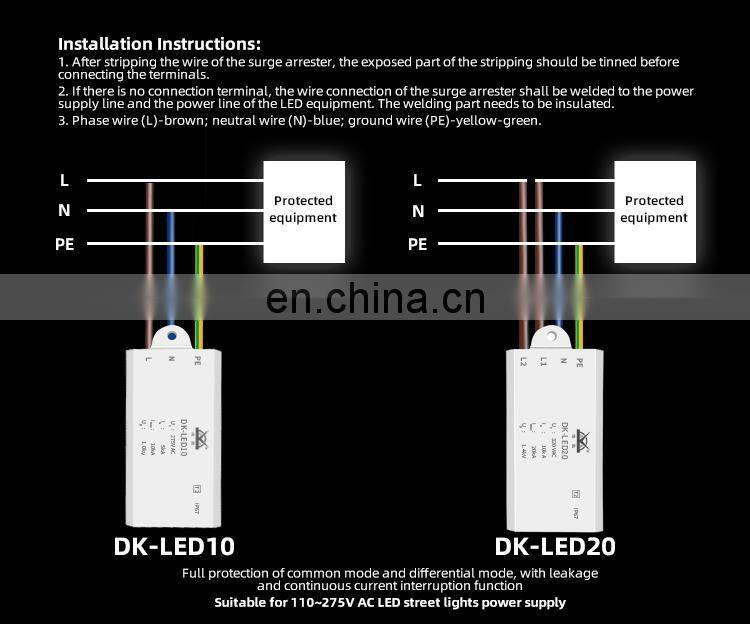

2.Features: The LED power supply lightning surge protective device is a three-level power supply lightning surge protective device. The surge protective device uses common mode and differential mode full protection, with leakage and continuous current interruption functions. The LED street light power supply lightning surge protective device is suitable for the 110~275V AC inlet end of the LED street light power supply. It has a fully sealed shell, waterproof and dustproof IP67 protection, etc. The surge protection device has a variety of wiring combinations, and at the same time meets the needs of series and parallel wiring.

3.Application Scope: LED lighting, highway lighting, street lighting, traffic lighting, screen billboards, monitoring power supplies, etc.
4.Working environment: Indoor installation; working temperature -40℃～＋85℃; relative humidity is not more than 95%; altitude is below 2000 meter.
Specification
Rated voltage
110-275V AC
Max.Continuous voltage
320V AC
Nromaldiscsageurent(8/20us)
5kA
Max discharge current(8/20us)
10kA
Nominal discharge voltage
10kV
Maximum discharge voltage
20kV
Voltage protection level
1.0kV
Response time
25ns
Cross-section area
3X1.5mm² flexible
Operating temperature range
-40℃- + 80℃
Mounting on
Custom
Enclosure material
ABS765A
Test standards
IEC61643/EN61643
Rated current
s10A
Weight
71g
Company Profile
LABORATORY AND TESTING
◆Strict screening and assessment of raw material suppliers, screening and inspection before storage ◆Automatic machine + manual double inspection before products are shipped, to ensure product consistency
Packing & Delivery
FAQ
Q1:who are we?
A1:We are based in Guangxi, China, start from 1989,sell to Oceania(25.00%),Western Europe(10.00%),EasternAsia(10.00%),Mid East(10.00%),Domestic Market(10.00%),Southeast Asia(10.00%),Eastern Europe(10.00%),South America(10.00%),NorthAmerica(5.00%).
There are total about 101-200 people in our office.

Q2:Which certificate do you have for your equipment?
A2:Wehave established a complete quality management, supply chain and after-sales service system. Continuously introduce 6S international advanced concepts in management, and have successively passed ISO9001,CNAS National Laboratory, CQC certification,CE certification, Rohs certification.

Q3:how can we guarantee quality?
A3:Strict screening and assessment of raw material suppliers, screening and inspection before storage Always a pre-production sample before mass production; Automatic machine +manual double inspection before products are shipped, to ensure product consistency.

Q4:Could I have a sample or small order first for testing?
A4:Of course, sample order and small order are acceptable, especially for new customers under certain condition.

Q5: Is there a discount for larger orders?
A5: For new customers, there is a small discount, but when the value of the order is increased, we will provide a larger discount.For previous customers, we are happy to provide a discount for your loyalty.

Q6:what can you buy from us?
A6:Surge Protector,Lightning Rod,PV Supporting Equipments,power cord,signal protection

Q7:why should you buy from us not from us not from other suppliers?
A7:Guangxi Dikai Sci & Tech Co., Ltd.has been specialized in producing lightning protective products, researching development of lightning protective technology, consulting lightning protection service, and engineering lightning protection cases for 30 years.

Q8.what services can we provide?
A8:Accepted Delivery Terms:FOB,CIF,EXW,Express Delivery； Accepted Payment Currency:USD,EUR,CNY; Accepted Payment Type: T/T,L/C,Western Union,Cash; Language Spoken:English,Chinese,Spanish.

Q9.Can I only buy some spare parts from you?
A9:Of course, we can sell everything from spare parts to finished products.

Q10.Can you can design the equipment according to our size?
A10:Of course, we can customize any product according to customer requirements, and we can all provide design solutions and solutions.
Should you have any questions, please do not hesitate to contact us.
