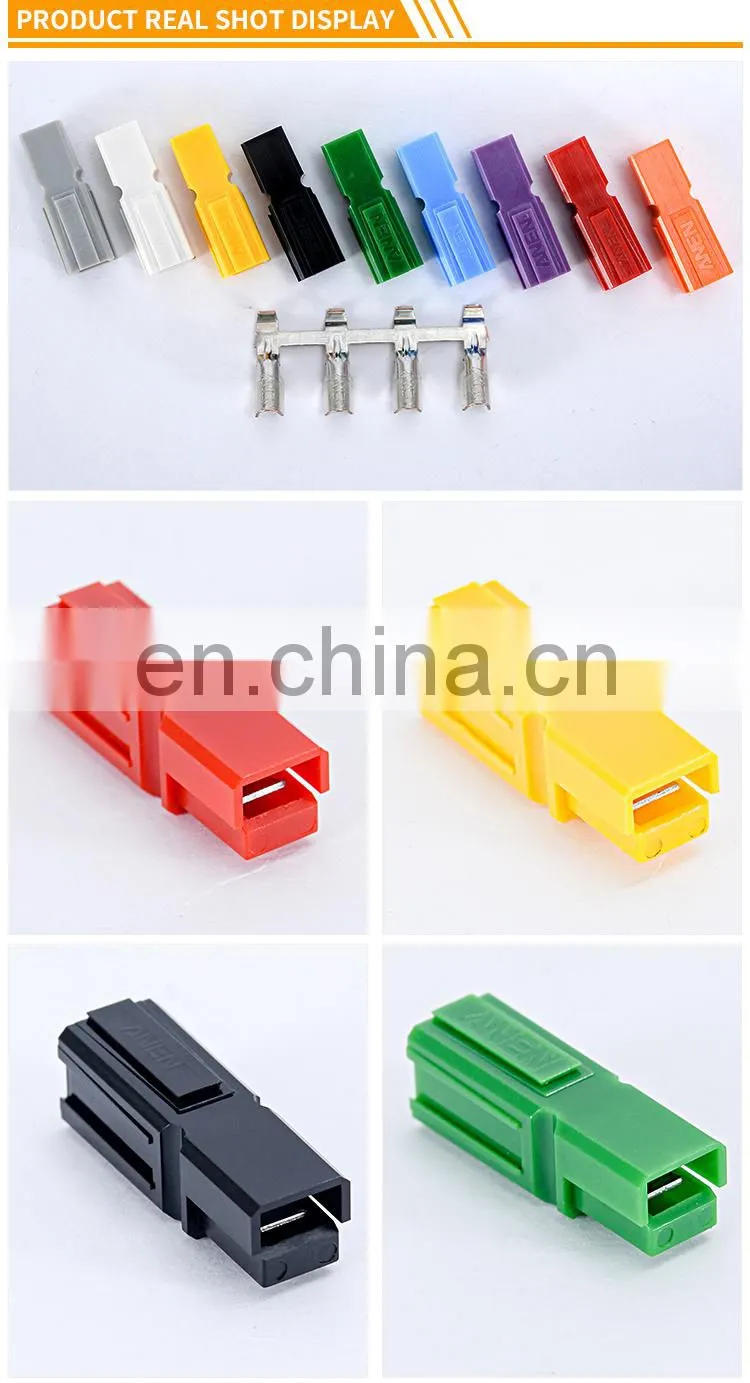

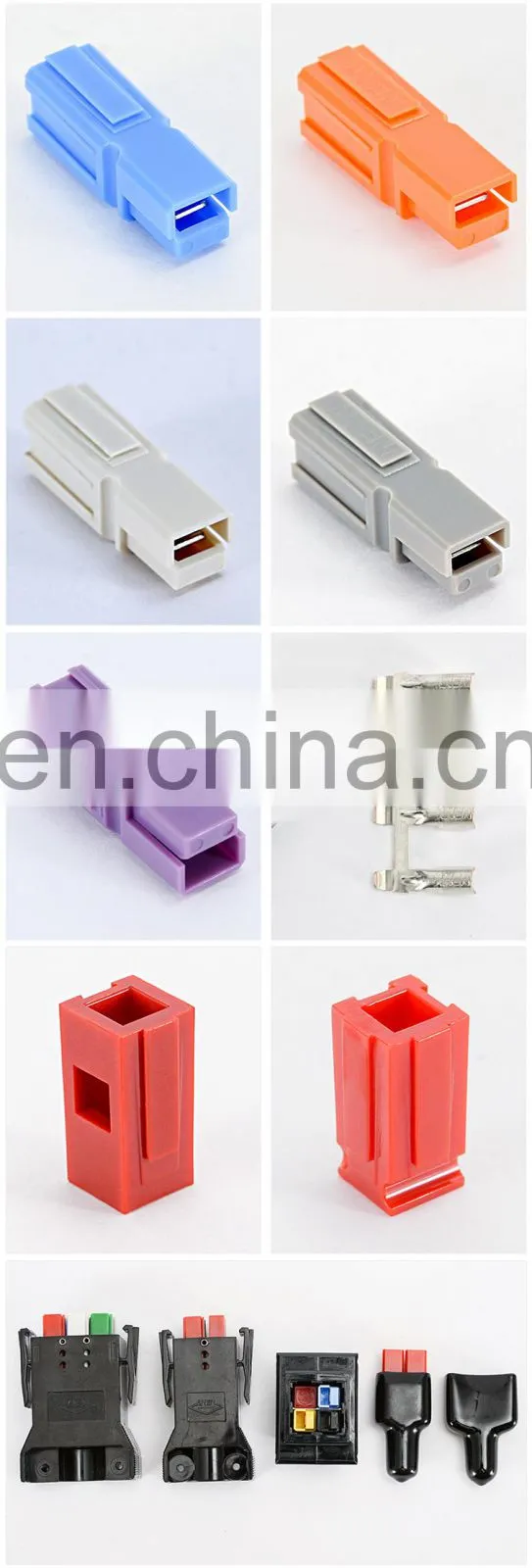

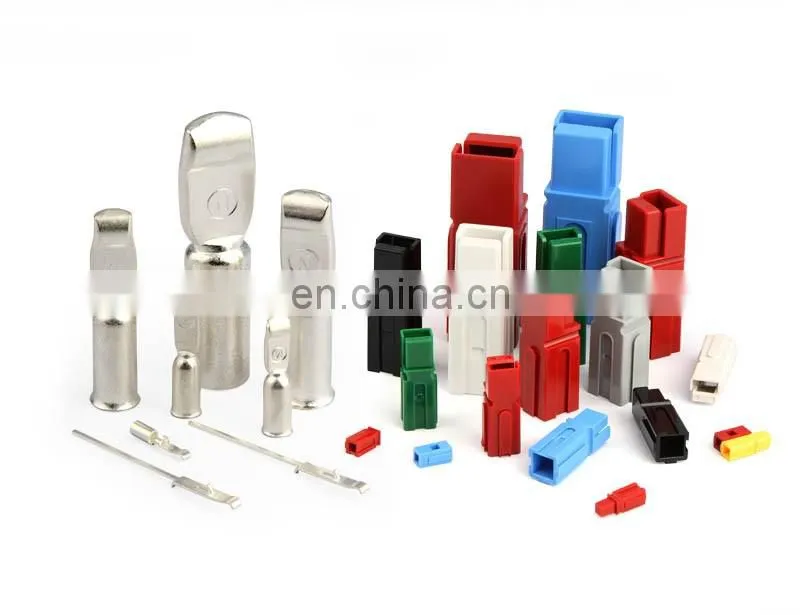

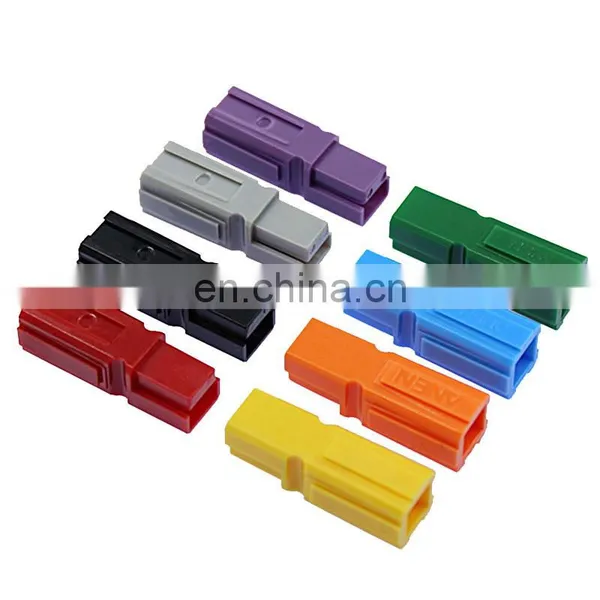

ANEN Power Product PA45 1 Pole 45A 600V Connector
Anen PA Series Power Connector provides cost-effective reliability, design flexibility and safety for your products' manufacture, installation and maintenance. The housings are modular and genderless. Anen PA connectors’ provide heavy duty reach 600 Volts continuous, AC or DC operation. Wire sizes range from 3/0 AWG 20 AWG. Contacts are available in reeled and loose piece designs to support all production needs from engineering prototype, low volume and high volumes products.
- Rated Current 45A
- Rated Voltage 600V
- Fingger Proof
-Flat Wiping Contact System
-Interchangeable Genderless Design
PA45 Connector Parameter
|
Item |
Value |
|
Rated Current |
45A |
|
Rated Voltage |
600V |
|
Wire Size (AWG) |
10-20 AWG |
|
Contact Materal |
Copper, Plated With Silver Or Tin |
|
Insulation Material |
PC |
|
Flammability |
UL94 V-0 |
|
Without Load, Contact/Disconnect Cycles |
To 10,000 |
|
With Load (Hot Plug 250 Cycles & 120V) |
20A |
|
Average Contact Resistance (Mico - Ohms) |
<500 |
|
Insulation Resistance |
1000 |
|
Average Connection/ Disconnect (N) |
15 |
|
Connector Holding Force (lbf) |
150N Min |
|
Environment Temperatures |
-20···+75 Degree |
PA45 Termianl Parameter
|
Item |
Value |
MOQ |
| PA261G2-T | 10/14 AWG |
2K/reel |
| PA261G1-T | 12/16 AWG |
2K/reel |
| PA262G1-T | 16 & 20 AWG |
2K/reel |
| PA1331-T | 12/16 AWG |
500 pcs |
| 30/45BBS | N/A | 500pcs |
PA45 Connector Application
This safety quick connect/disconnect connector kits are widely applied in various field. This kits always are equipped in Electrical, folk lift, electric folk truck, golf car, tour bus and many other power-driven tools to solve the power-out problem. The terminal pins are made of red copper coated by silver, which has a strong electrical conductivity and can reduce the resistance to make the current and voltage stable. The mark of positive and negative are printed in the connector to avoid the miss plug. In the kit, a couple of boot caps are included to protect this quick connect and disconnect kits from the dust.
PA45 Connector Installation
1. Strip the insulation to fit the terminal pins.
2. Insert the cable into the terminal pins.
3. Crimp the terminal pins.
4. Insert terminal pins in housing with notched side of tongue next to spring.
5. Final adjustment Push contacts and cable into housing until the notched tongue snaps over end of spring; tug slightly to make sure contact is locked into place.
