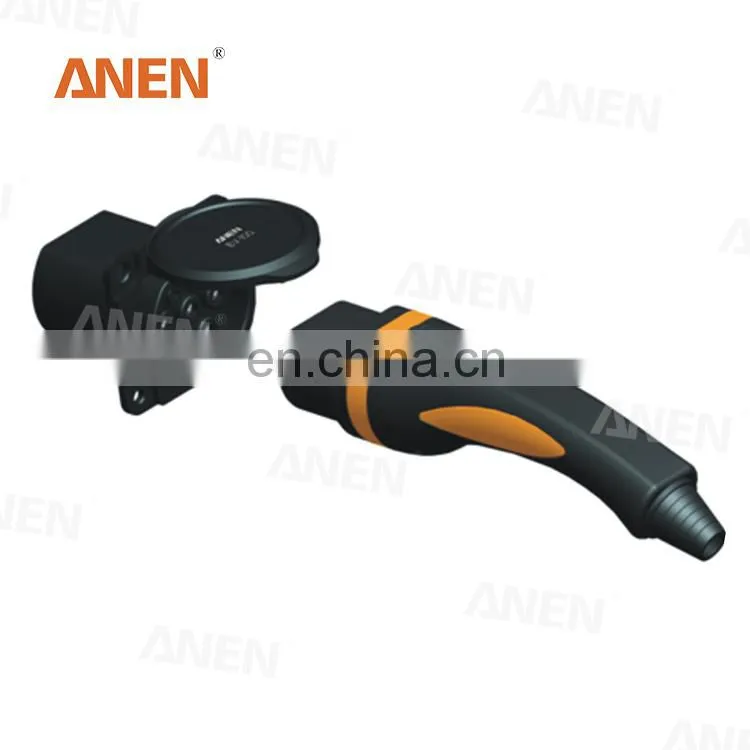

EV AC charger plug/EV charger connector/charging port connector plug
EV charger descriptions
EV charger Features
With automatic locking feature to prevent accidental disconnection while in charging effective use of personnel safety protection also the battery and car electronics;
Help prevent fingers from accidentally touching live contacts;
Thisproduce can set up many codes based on different voltage, prevent mis=assembly;
Resistance to harsh working conditions, Anti-UV;
This kind of products peer in the same products fully interchangeable;
Meets IEC62196,SAEJ1772 specification.
EV charger technical parameters
| Item | Value |
|
Rated Current |
Contact pinA:5A~30A Contact pinB:60A~100A Contact pinC:60A~100A |
| Insulation Resistance | 500Ω |
| Insulation Material | PA |
| Contact Materal | Copper, Plated With Silver |
| Actuating Force | ≤100N |
| Rated Voltage |
Contact pinA:48V DC Contact pinB:400V AC/DC Contact pinC:600V DC |
| Contact Resisitance |
Contact pinA:≤5mΩ Contact pinB:≤1mΩ Contact pinC:≤1mΩ |
| Flame class | UL94- V0 |
| Protection degree | IP65 |
|
Operation cycles |
10000 |
| Environment Temperatures | -40°C···+75 °C |

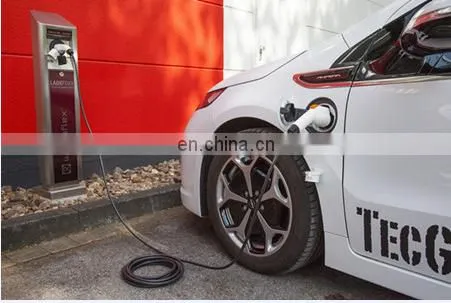

EV charger application
Professional applications with EV,PHEV and other electric vehicles. To help electric vehicles charging at home, work place and charging station.
Send Inquiry to This Supplier
