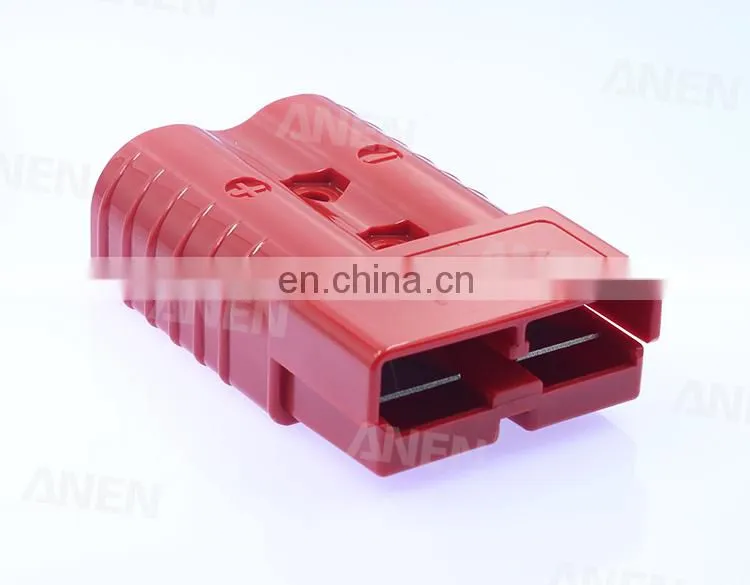

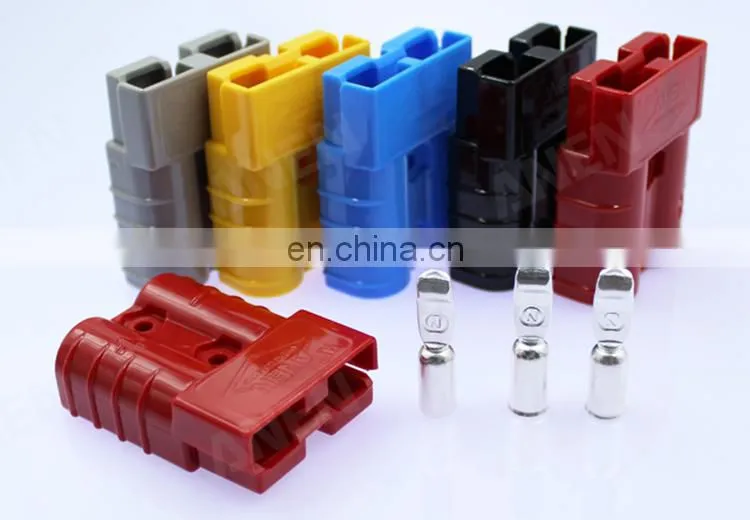

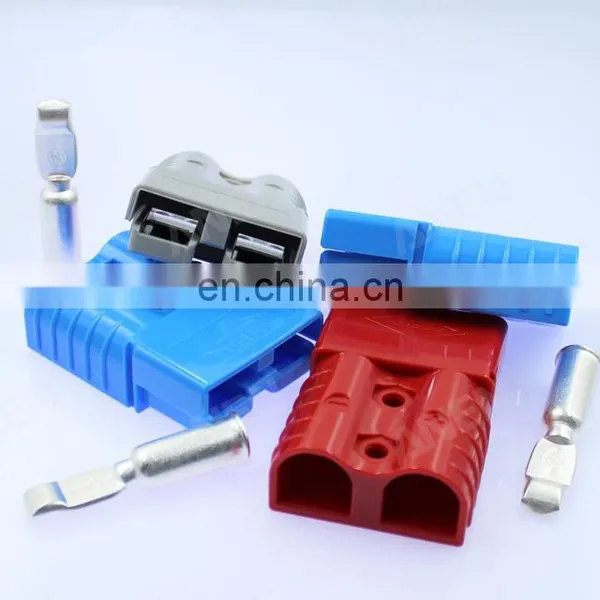

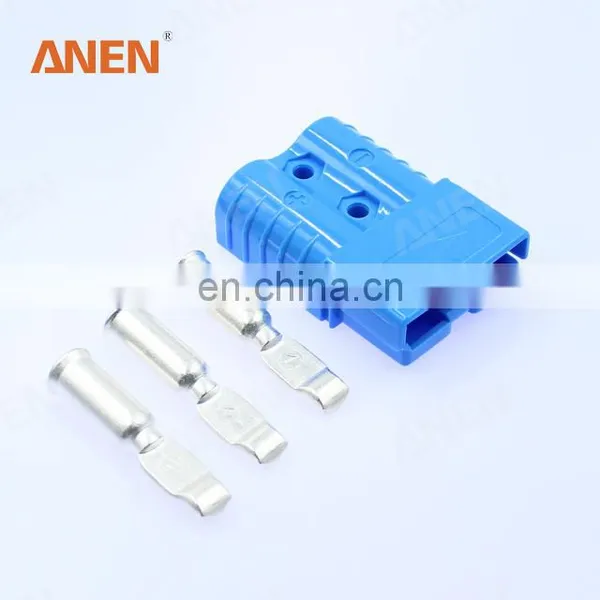

Help CenterAnen SA350 Automotive Power Supply Two Pins Electrical Connector With Terminals
Related Products
-
ANEN Compliance Forklift Truck Power Connector With 175A 600A 2 Pin Quick Connector Forklity Battery CableNegotiableMOQ: 1 -
Forklift Fast Connector Unplug Battery Power Connector With Terminal 350A Trucks SocketNegotiableMOQ: 1
-
45A 600V High Current 2pin Controller dc Power Jack Plug Connector With TerminalNegotiableMOQ: 1
-
Anen SA50 600V With Handle Power Connector Multipole Power Housing Connectors Ups Systems ConnectorNegotiableMOQ: 1
-
Anen SAE175 Power Connector Wholesale Battery Plug With Handle & Dustproof Cover + TerminalsNegotiableMOQ: 1
Anen DC Connector 350A 600V With UL Approved
Anen SA Series
Anen SA Series Power Connector provides cost-effective reliability, design flexibility and safety for your products' manufacture, installation and maintenance.
The housings are modular and genderless. Anen PA connectors’ provide 600 Volts continuous, AC or DC operation. Wire sizes range from 12AWG 16 AWG.
Contacts are available in reeled and loose piece designs to support all production needs from engineering prototype, low volume and high volumes products.
Anen SA Series finger proof is designed specifically for high voltage applications where personal safety is critical. the connector meets the accessibility requirements of UL and is recommended for applications range from 15 to 350 volts.
Interchangeable genderless design
makes assembly quick, easy and reduces number of parts stocked.
In addition to all the unique features of our standard SA350, we offer a "locking" version. the locking clips are attached to secure other product assemblies.
Anen SA Series AC Connector Parameter
| Item | Value |
| Rated Current | 350A |
| Rated Voltage | 600V |
| Wire Size (AWG) | 1/0-3/0AWG |
| Contact Materal | Copper, Plated With Silver |
| Insulation Material | PC |
| Flammability | UL94 V-0 |
| Life a.Without load (Contact/Disconnect Cycles) b.With load (Hot Plug 250 Cycles & 120V) |
To 10,000
75A |
| Average Contact Resistance (Mico - Ohms) | <40 |
| Insulation Resistance | 5000 |
| Average Connection/ Disconnect (N) | 280N |
| Connector Holding Force (lbf) | 500N Min |
| Environment Temperatures | -20℃~105℃ |
