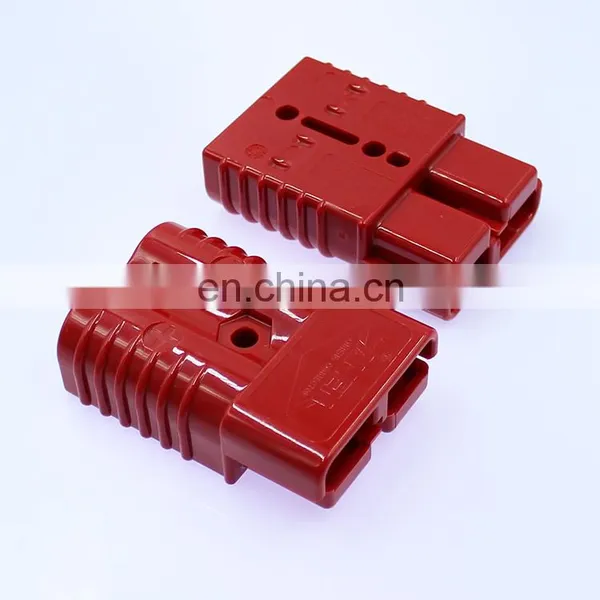

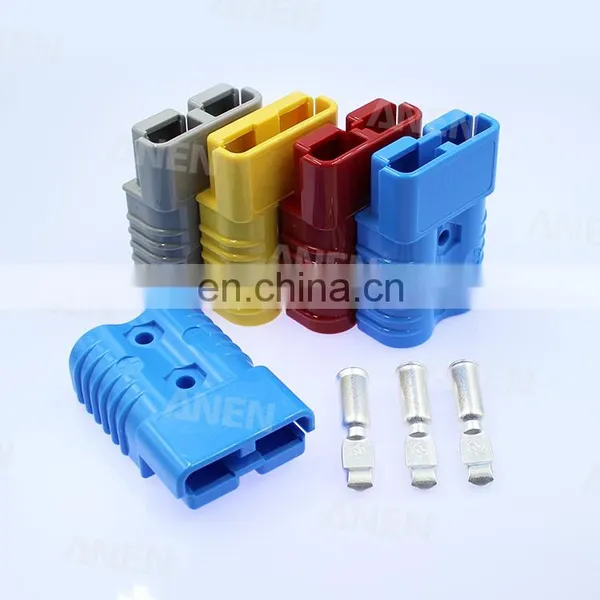

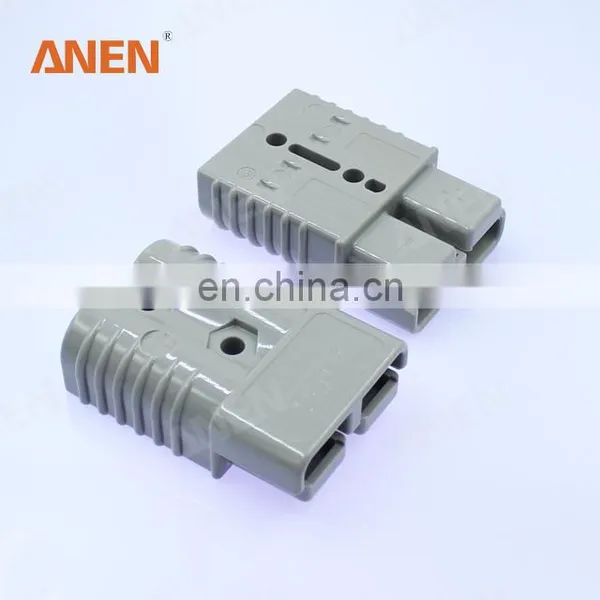

ANEN compliance Forklift Truck Power Connector
with 175A 600A with SGS/RoHS
Home>> All Series>>Connectors>>Single Pole Power Connectors>>SA
| ANEN SA Series
Anen SA Series Power Connector provides cost-effective reliability, design flexibility and safety for your products' manufacture, installation and maintenance.
The housings are modular and genderless. Anen PA connectors’ provide 600 Volts continuous, AC or DC operation. Wire sizes range from 12AWG 16 AWG.
Contacts are available in reeled and loose piece designs to support all production needs from engineering prototype, low volume and high volumes products.
Anen SA Series finger proof is designed specifically for high voltage applications where personal safety is critical. the connector meets the accessibility requirements of UL and is recommended for applications range from 15 to 350 volts.
| Connectors SA connectors Descriptions
· Fingger Proof
· Flat Wiping Contact System
· Molded-in Dovetails
· Interchangeable Genderless Design

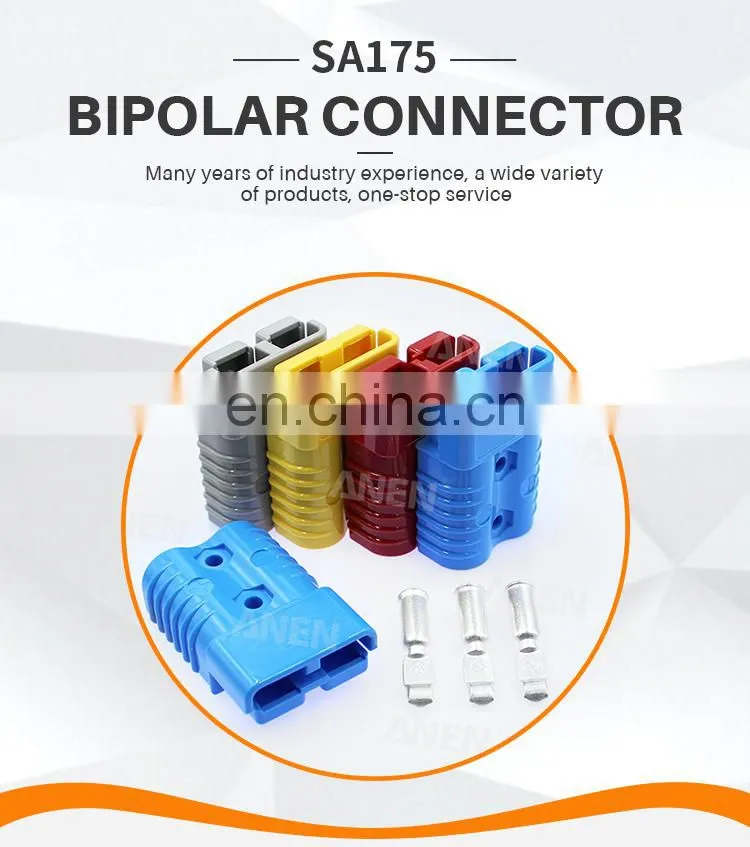

| Connectors SA175 Parameters
| Item | Value |
| Rated Current | 175A |
| Rated Voltage | 600V |
| Wire Size (AWG) | 06 - 12AWG |
| Contact Materal | Copper, Plated With Silver Or Tin |
| Insulation Material | PC |
| Flammability | UL94 V-0 |
| Without Load, Contact/Disconnect Cycles | To 10,000 |
| With Load (Hot Plug 250 Cycles & 120V) | 40A |
| Average Contact Resistance (Mico - Ohms) | <500 |
| Insulation Resistance | 5000 |
| Average Connection/ Disconnect (N) | 55 |
| Connector Holding Force (lbf) | 250N Min |
| Environment Temperatures | -20···+75 Degree |
