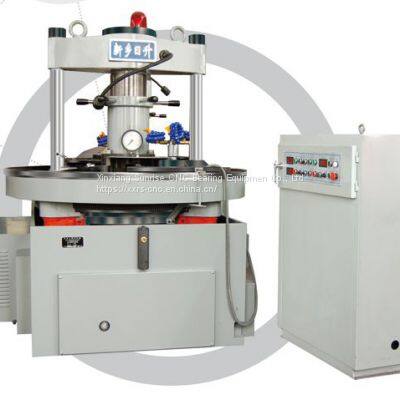

steel ball making machine

Main structural features

Vertical layout, large cycle machining;

         uitable for the finishing lapping process;

The rotation of main shaft and turntable adopt frequency conversion speed regulation;

Hydraulic drive pressure, mechanical pressure preservation by compression spring and constant pressure nut locking;

A spring equal distance compression structure is adopted to ensure the uniform compression of the steel balls between the two plates;

The main shaft bearing adopts the mechanical seal structure, which eliminates the hidden danger of the main shaft oil leakage;

The main drive adopts hard toothed surface bevel gear motor, and the reducer is low in heating and high in drive efficiency;

         After the gear motor is installed, the output shaft is facing upwards, thus eliminating the hidden danger of lubricating oil leakage;

         Adopt small cycle processing in accordance with the requirements (without turntable).
