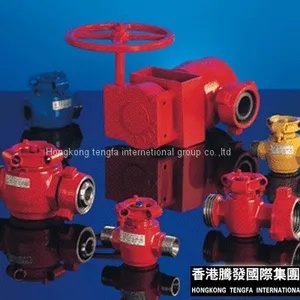

Petroleum Equipment Machinery High Pressure Fluid Control Products Plug Valve
Plug valves, forged of quality high strength alloy steel, are low torque valves based on the technologies introduced from SPM. 1",2"and 3" plug valves with rated working pressure of 6000,10000,15000 psi(42,70,105MPa) are available. They can work in normal temperature, low temperature or H2S environments.
The model of plug valve available: SF42-1"×2"、SF70-1"×2"、SF105-1"×2"、SF42-2"×2"、SF70-2"×2"、SF100-2"×2"、SF42-3"×3"、SF70-3"×3"、SF105-3"×3"，rated: 6000psi(42MPa)～15000psi(105MPa).
1. End connections of plug valves with sizes in English system may be union or male/female thread (LP,TBG), and they can be freely connected with products in international market;
2. Maintenance and repair of valve body can be done without removal, and no special tools are needed for removal; 3. The plugs have very good sealing performance；
4. Visible: There is a visible positioner where we can see if valve is open or closed. Brake spring will limit the position of valve;
5. 3"hand wheel opener is suitable for opening in low temperature. Valves can be opened freely and flexibly.
Model |
Spec. |
Working pressure(Mpa) |
Connection |
Mold |
Operating conditions |
|
NSSF-01-1502 |
1〞 |
105 |
2〞FIG1502(F×M) |
Manual |
Standard |
|
NSSF-01-1502D |
1〞 |
105 |
3〞FIG1502(F×M) |
Electric |
Standard |
|
NSSF-02-GZ |
2〞 |
70 |
Tr100×12(F×M) |
Manual |
Standard |
|
NSSF-02-GZD |
2〞 |
70 |
Tr100×12(F×M) |
Electric |
Standard |
|
NSSF-02-TBG |
2〞 |
70 |
2-3/8〞TBG |
Manual |
Standard |
|
NSSF-02-TBGD |
2〞 |
70 |
2-3/8〞TBG |
Electric |
Standard |
|
NSSF-02-1502 |
2〞 |
105 |
2〞FIG 1502(F×M) |
Manual |
Standard |
|
NSSF-02-1502D |
2〞 |
105 |
2〞FIG 1502(F×M) |
Electric |
Standard |
NSSF-03-1502 |
3〞 |
105 |
3〞FIG 1502(F×M) |
Manual |
Standard |
NSSF-03-1502D |
3〞 |
105 |
3〞FIG 1502(F×M) |
Electric |
Standard |
