hollow concrete block machine/cement brick making machine/fly ash brick forming machine price
1.Function
SL-ZJ-12 Full Automatic concrete block machine can produce various different hollow bricks and solid bricks by changing moulds.
2.Technology
SL-ZJ-12 Full Automatic hollow concrete block machine adopts vibration technology to assure the better quality, larger density and higher strength of blocks.

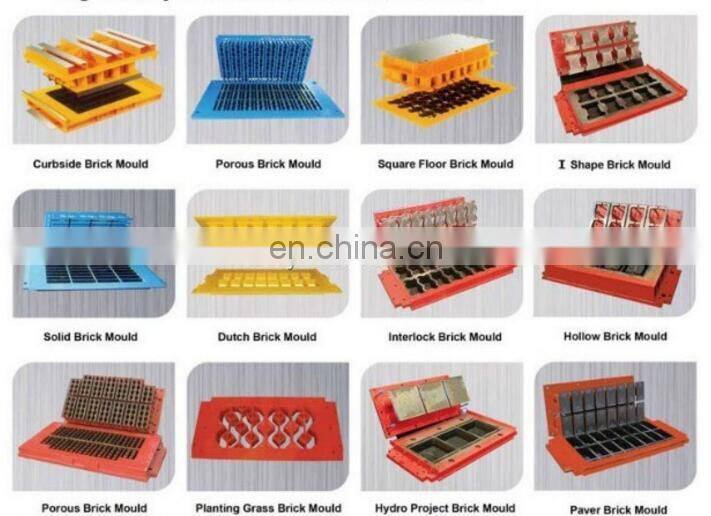

3.Mould
The brick moulds are made of 16# manganese steel. Besides the good raw material, precise line cutting technology and 900℃ carburizing heat treatment technology are all adopted in the process of the brick mould production. So the brick moulds have better performance and longer service time.
4.Capacity
SL-ZJ-12 is an automatic concrete block machine and shaping cycle is 15-20s. so the production efficiency is high with labor saving, it can produce 4320-40320 pieces blocks per day according block size.

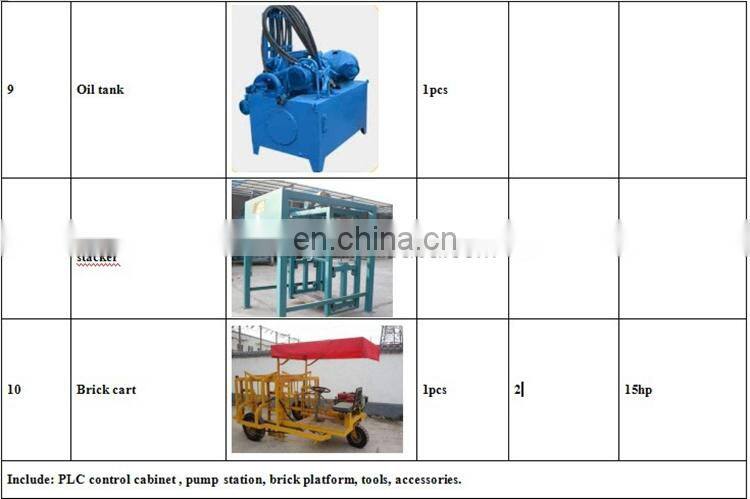

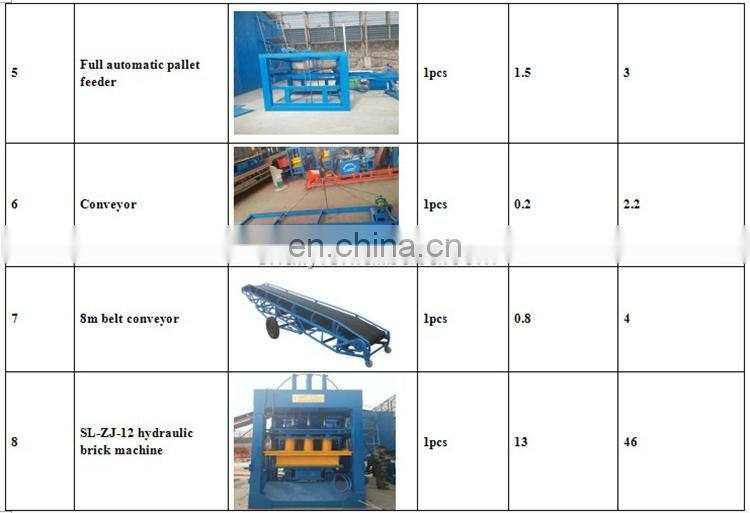

The configuration of concrete block machine:
Main parameter:
Cycle time (s) |
Pallet size(mm) |
Forming machine power (kw) |
Forming machine weight (t) |
Forming machine dimension (mm) |
Vibration frequency(r/min) |
15-20 |
1310×840×30 |
46 |
13 |
8200×2300×3000 |
4800-5100 |
Production capacity:
Item |
Dimension (mm) |
QTY per mold |
Capacity (pcs/h) |
Capacity (pcs/8h) |
Hollow brick |
390×190×190 |
12 |
2160 |
17280 |
Porous brick |
240×115×90 |
30 |
7200 |
57600 |
Standard brick |
240×115×53 |
60 |
14400 |
115200 |

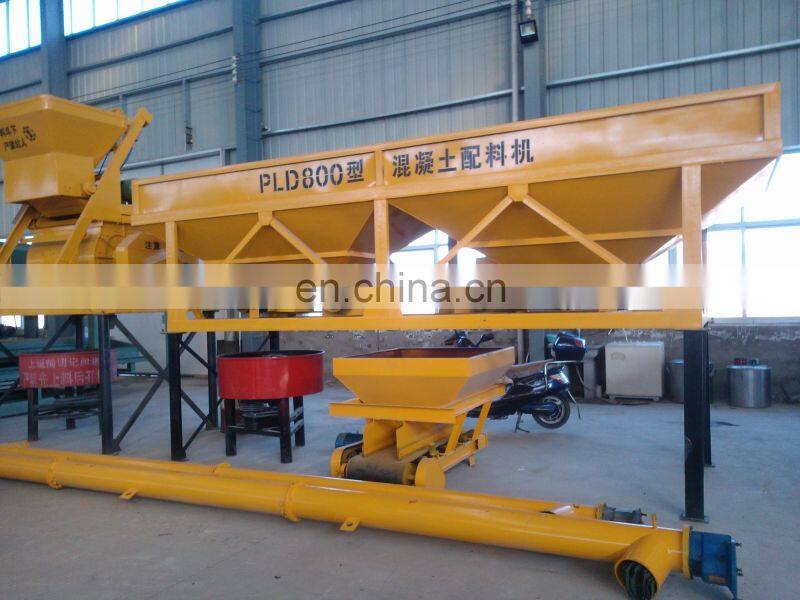

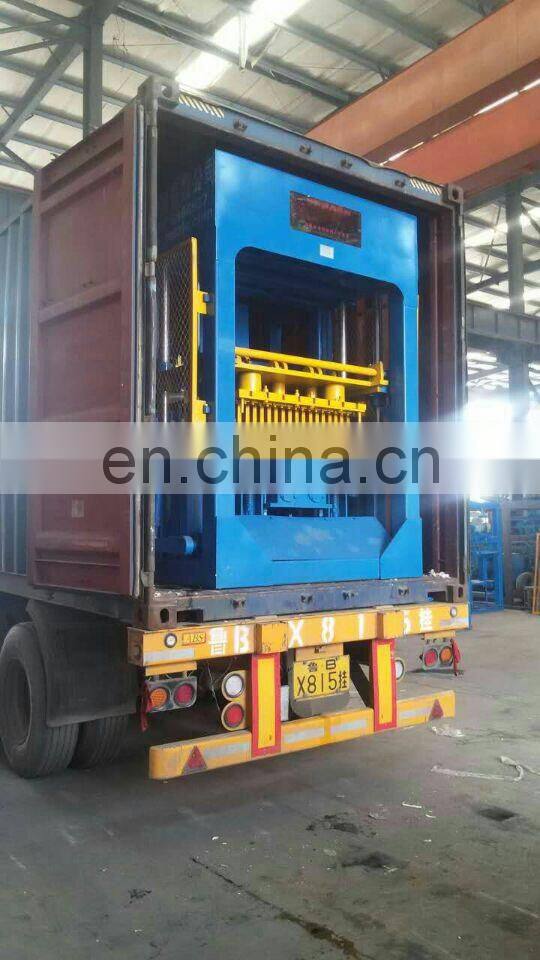

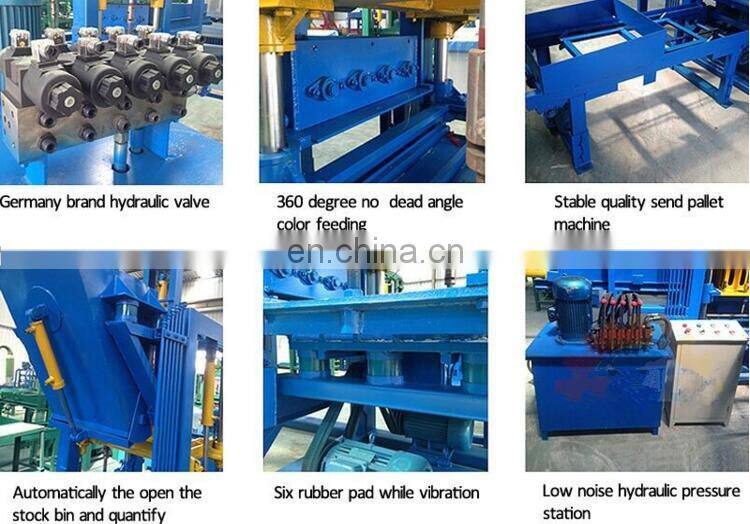

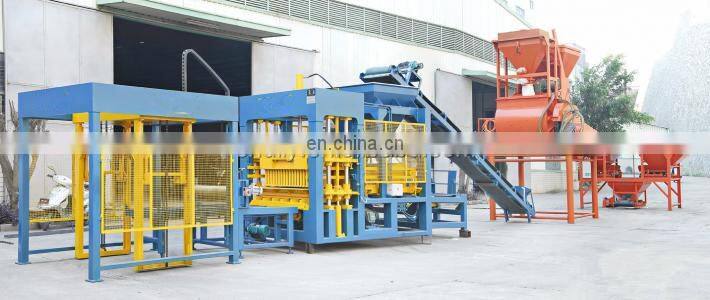

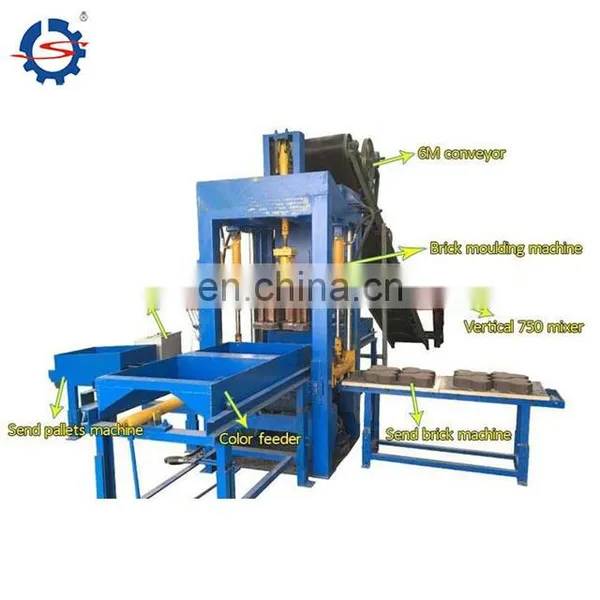

Detailed image:

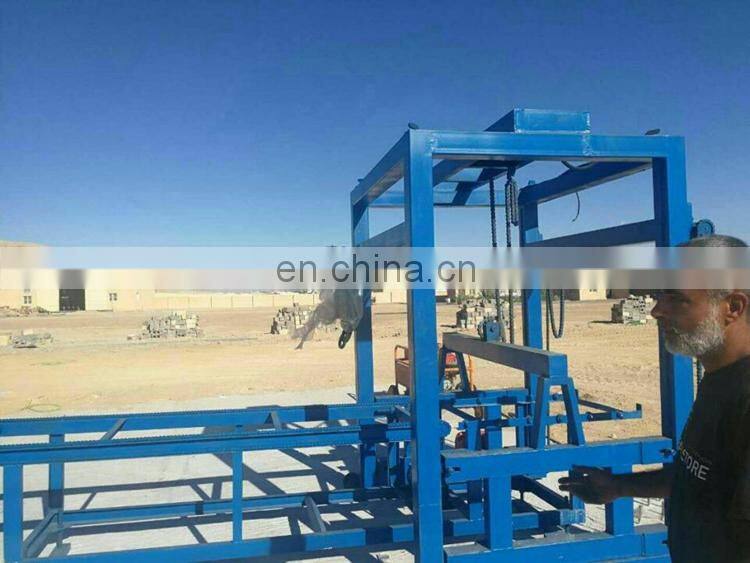

Install in UAE:

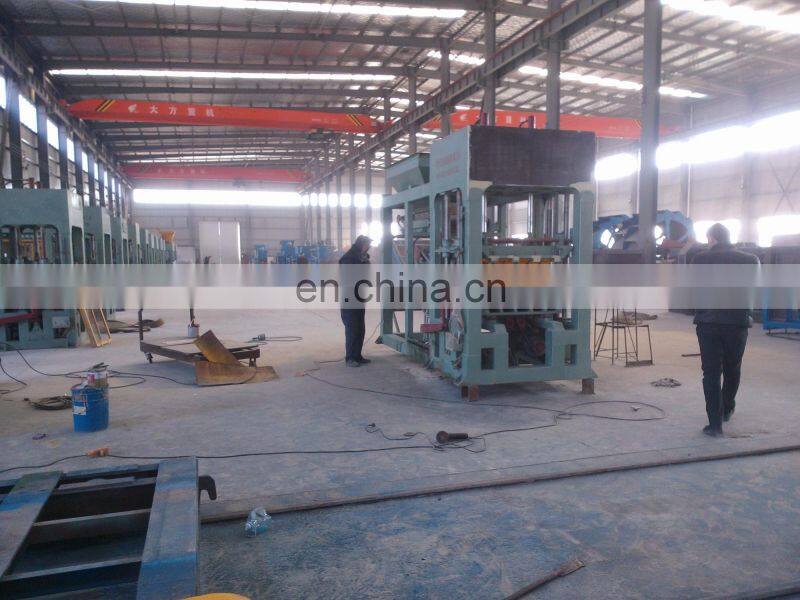

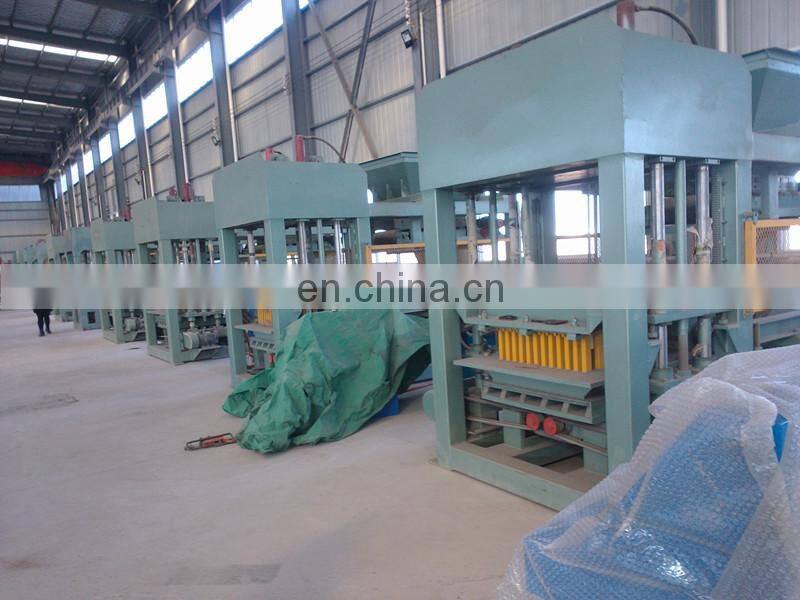

Our workshop:
Customers come to place order:
