Introduction

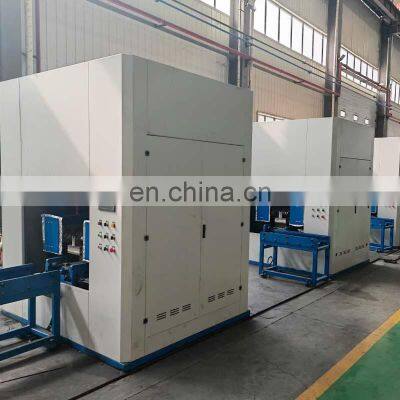

This flat vulcanizing machine is a new type of hydraulic flat vulcanizing machine, which can significantly improve the quality of the pressed parts and greatly improve the efficiency compared with the old pressure molding machine. Is plastic, rubber foam, bakelite products and various thermosetting processing auxiliary equipment.
1. The main engine adopts two structures of column type and frame plate type. Our factory also sells fully automatic models.
2. This machine is suitable for all kinds of silicone products and rubber accessories, including silicone cake molds, silicone insulation pads, various thermos cup sleeves, various seals, O-rings, silicone earplugs, silicone jewelry, silicone bracelets and other silicones Production and processing of complex silicone and rubber accessories such as kitchen utensils, multi-layer moldings, etc. Conductive rubber, industrial rubber accessories, sports equipment, fibers and other sclerotic raw materials and other bathroom products.
3. This machine is equipped with and is directly driven by the motor. The motor is started with a magnetic starter, and the built-in thermal relay is used for overload protection. When the motor is overloaded or encounters a fault, it will automatically stop, with low noise during use, long life and high efficiency. .
Parameter
|
Parameters/version |
XLB400*400*2 |
XLB500*500*2 |
XLB600*600*2/4 |
|
Mould closing force |
0.5 |
0.8 |
1.0 |
|
Hot plate spacing |
125 |
125 |
125 |
|
Hot plate layer |
2 |
2 |
2/4 |
|
Plunger stroke |
250 |
250 |
250/500 |
|
Heating way |
Electricity/steam |
Electricity/steam |
Electricity/steam |
|
Main motor power |
2.2 |
2.2 |
2.2 |
|
The thermal power |
3kw/board |
3kw/board |
7.5kw/board |
|
Size(l*w*h) |
1600*400*1440 |
1450*690*1818 |
1880*780*1660 |
|
Weight(kg) |
1500 |
1800 |
2500/3100 |
|
Platen unit area pressure |
3.13 |
2.52 |
2.78 |
