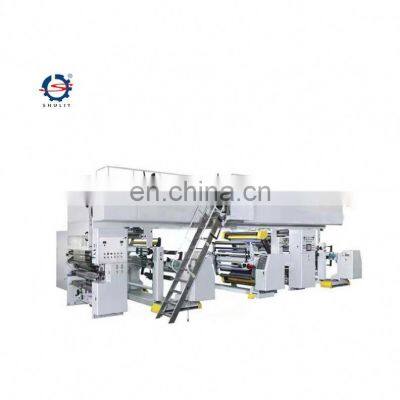

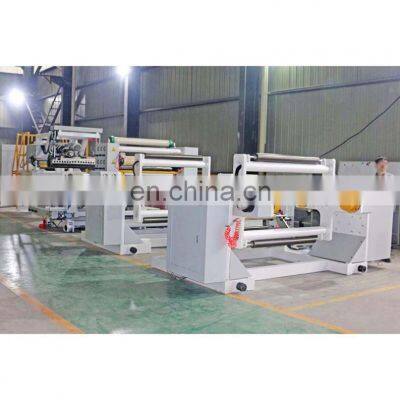

Kraft paper laminating machine double side Coating machine
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
PE PP Laminating Extrusion Machine Paper cardboard coating Aluminum Foil Kraft Paper
-
automatic laminating machine a4 a3 paper coating lamination machine roll
-
paper cup coating machine pe coating machine for paper
-
Fabric Laminating Machine Fully Automatic Laminator Machine Plastic Laminate Machine
-
High Speed Automatic PET PE PP BOPP Film Hot Roll Laminating Machine
-
Plastic lamination machine a3 Paper roll laminating machine
Product Description
Plastic lamination machine a3 Paper roll laminating machine
PRODUCT SPECIFICATIONS
Features of woven bag laminating machine:
1. The extruder adopts automatic temperature control, automatic material suction, and the die head adopts the proprietary die head of the proprietary manufacturer.
2. The unwinding part, compound part and rewinding part of the unit are automatically tensioned and synchronized.
3. The rewinding part adopts automatic device to realize large coil diameter and high rotation speed without stopping the coil change, and will not stop the machine and waste.
Fourth, the unit frequency conversion speed regulation, PLC man-machine interface operation, linkage control.
5. The unit is equipped with corona treatment machine, automatic deviation correction machine, finished product meter, adjustable edge trimming and edge suction device.
6. The equipment has novel structure, beautiful appearance, quick installation and convenient operation
1. The principle of laminating machine
Extrusion tape casting: plastic particles are plasticized by a screw and then extruded from a flat die in a linear shape. After stretching, they are attached to the surface of flexible substrates such as paper, film, non-woven fabric, and woven cloth. It is a composite material that combines the barrier properties and heat sealing properties of the plastic film layer, and the strength and toughness of the substrate and functional properties.
2. Composition of laminating machine
The whole machine is composed of feeding device, extruder host, die, unwinding mechanism, compounding mechanism, winding mechanism, edge position control device, trimming device, heating and cooling system, electrical measurement and control system and other parts. According to the needs of different products, the second unwinding mechanism, printing equipment, oven, substrate surface treatment device (corona machine, etc.), online thickness gauge and other components can be added. Pre-process equipment: granulator, printing press or other equipment; post-process equipment: slitting machine or other equipment.
Equipment List
Machine Composition | ||||
Model | Machine | Quantity | ||
1 | Double station unwinding system | 1 set | ||
2 | Vacuum screw feeder | 1 set | ||
3 | Hopper dryer | 1 set | ||
4 | Single screw extruder | 1 set | ||
5 | Single board single station filter | 1 set | ||
6 | Solution static mixer | 1 set | ||
7 | Laminating Special Mould | 1 set | ||
8 | Laminating composite molding system | 1 set | ||
9 | Online Infrared Detection System | 1 set | ||
10 | Correction device | 1 set | ||
11 | Fabric static elimination device | 1 set | ||
12 | Tractor | 1 set | ||
13 | Double station automatic winding system | 1 set | ||
14 | interface control system | 1 set | ||
Product Overview
