automatic laminating machine a4 a3 paper coating lamination machine roll
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
paper cup coating machine pe coating machine for paper
-
Fabric Laminating Machine Fully Automatic Laminator Machine Plastic Laminate Machine
-
High Speed Automatic PET PE PP BOPP Film Hot Roll Laminating Machine
-
Plastic lamination machine a3 Paper roll laminating machine
-
High Speed High Efficiency Automatic Plastic HDPE Pipe Extruding Machine
-
Plastic product processing line machinery PE PPR HDPE plastic pipe making line
Product Description
Plastic lamination machine a3 Paper roll laminating machine
PRODUCT SPECIFICATIONS
Features of woven bag laminating machine:
1. The extruder adopts automatic temperature control, automatic material suction, and the die head adopts the proprietary die head of the proprietary manufacturer.
2. The unwinding part, compound part and rewinding part of the unit are automatically tensioned and synchronized.
3. The rewinding part adopts automatic device to realize large coil diameter and high rotation speed without stopping the coil change, and will not stop the machine and waste.
Fourth, the unit frequency conversion speed regulation, PLC man-machine interface operation, linkage control.
5. The unit is equipped with corona treatment machine, automatic deviation correction machine, finished product meter, adjustable edge trimming and edge suction device.
6. The equipment has novel structure, beautiful appearance, quick installation and convenient operation
1. The principle of laminating machine
Extrusion tape casting: plastic particles are plasticized by a screw and then extruded from a flat die in a linear shape. After stretching, they are attached to the surface of flexible substrates such as paper, film, non-woven fabric, and woven cloth. It is a composite material that combines the barrier properties and heat sealing properties of the plastic film layer, and the strength and toughness of the substrate and functional properties.
2. Composition of laminating machine

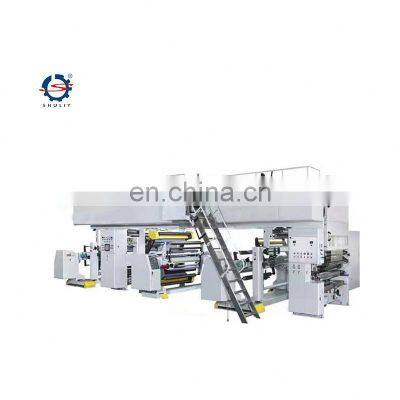

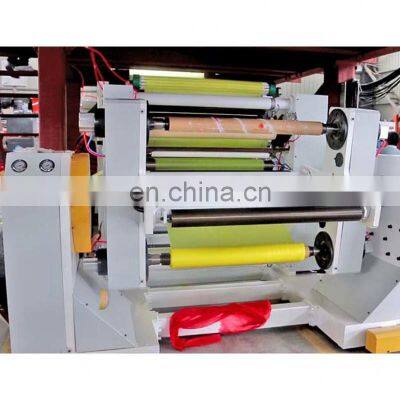

The whole machine is composed of feeding device, extruder host, die, unwinding mechanism, compounding mechanism, winding mechanism, edge position control device, trimming device, heating and cooling system, electrical measurement and control system and other parts. According to the needs of different products, the second unwinding mechanism, printing equipment, oven, substrate surface treatment device (corona machine, etc.), online thickness gauge and other components can be added. Pre-process equipment: granulator, printing press or other equipment; post-process equipment: slitting machine or other equipment.
Equipment List
Machine Composition | ||||
Model | Machine | Quantity | ||
1 | Double station unwinding system | 1 set | ||
2 | Vacuum screw feeder | 1 set | ||
3 | Hopper dryer | 1 set | ||
4 | Single screw extruder | 1 set | ||
5 | Single board single station filter | 1 set | ||
6 | Solution static mixer | 1 set | ||
7 | Laminating Special Mould | 1 set | ||
8 | Laminating composite molding system | 1 set | ||
9 | Online Infrared Detection System | 1 set | ||
10 | Correction device | 1 set | ||
11 | Fabric static elimination device | 1 set | ||
12 | Tractor | 1 set | ||
13 | Double station automatic winding system | 1 set | ||
14 | interface control system | 1 set | ||
Product Overview
SIMILAR PRODUCTS
Contact Us
Our Company
Zhengzhou Shuliy machinery Co., Ltd. was found in 2000. Our company specializes mainly produce plastic processing machine. We not only provides customers with cost-effective products, but also provides first-class service support and solutions. Our products have been exported to countries and regions such as Arabia, India, Russia, Central Asia, Africa and Mongolia. Perfect after-sales service system allows you to worry-free.
FAQ
Q1: Are you manufacturer or trade company?
A1:We are a professional manufacturer for producing machinery over 10 years.
Q2: How is the quality of your product?
A2: Our products are manufactured according to national and international standard, and we have a test on every machine before
delivery.
Q3: How about the price?
A3: We are a professional manufacturer and be able to provide you with the lowest price than market one. We will give you the best
quotation.
Q4:What if the machine is damaged?
A5:One year warranty and all-round after-sales service. After this deadline, we shall charge at low cost to keep after-sales
service.
A1:We are a professional manufacturer for producing machinery over 10 years.
Q2: How is the quality of your product?
A2: Our products are manufactured according to national and international standard, and we have a test on every machine before
delivery.
Q3: How about the price?
A3: We are a professional manufacturer and be able to provide you with the lowest price than market one. We will give you the best
quotation.
Q4:What if the machine is damaged?
A5:One year warranty and all-round after-sales service. After this deadline, we shall charge at low cost to keep after-sales
service.
