Biomass Rotary Dryer Bagasse Drying Equipment For Sale

Biomass Rotary Dryer Bagasse Drying Equipment For Sale thumbnail-1
Biomass Rotary Dryer Bagasse Drying Equipment For Sale thumbnail-2
Biomass Rotary Dryer Bagasse Drying Equipment For Sale thumbnail-3
Biomass Rotary Dryer Bagasse Drying Equipment For Sale thumbnail-4
Biomass Rotary Dryer Bagasse Drying Equipment For Sale thumbnail-5
Biomass Rotary Dryer Bagasse Drying Equipment For Sale photo-1
Biomass Rotary Dryer Bagasse Drying Equipment For Sale photo-2
Biomass Rotary Dryer Bagasse Drying Equipment For Sale photo-3
Biomass Rotary Dryer Bagasse Drying Equipment For Sale photo-4
Biomass Rotary Dryer Bagasse Drying Equipment For Sale photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Buying Office
Year Established:
2011
Annual Export Value:
US$2.5 Million - US$5 Million
Contact Supplier Request Quote Chat Now
Zhengzhou Dingli New Energy Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Product Description

Product Introduction

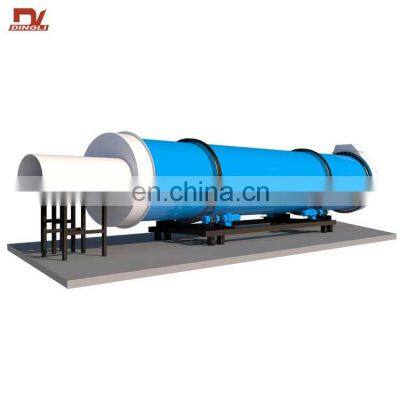

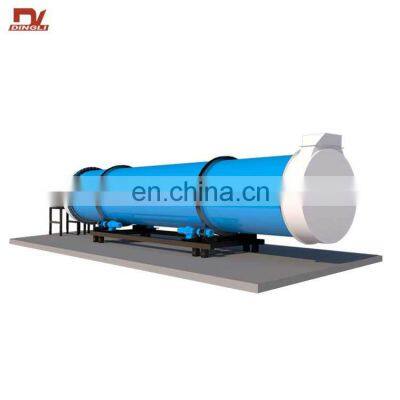

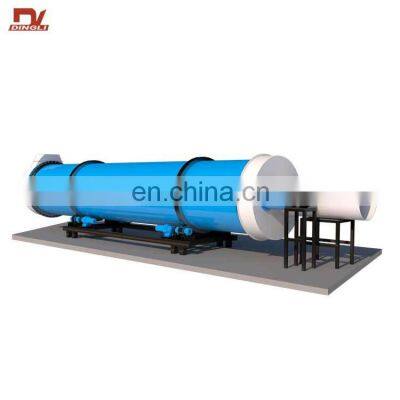

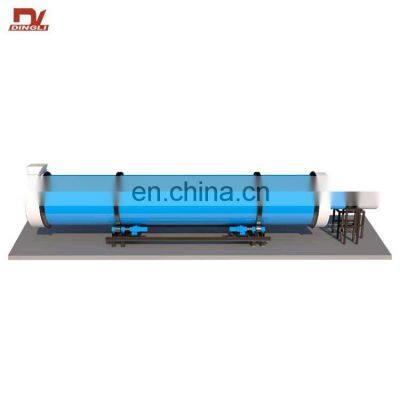

The rotary dryer is used for biomass waste, argicultural waste, etc. Wet materials are continuously sent into the drum through screw conveyer and then get separated and pushed by the high-speed hot flow. The moisture in wet materials is taken away in this process and then we get powder or pellet dry materials.

Product Configuration

Rotary dryers are consist of heating furnace, feeding port, drum, filter drum, conveying pipe, cooling drum and discharging port.

Main Features

1) PLC smart control & high automaticity. The performance of rotary dryer and moisture content of dry materials is automatically controlled in stable states.
2) High heat efficiency. The design of multiple circumferential flights combination and flow rate adjustment devices ensure the control of drying period and temperature distribution. The effect of insulation is as high as 70% and raise the heat efficiency by 20%.
3) Four wheel drive, more steady and stable.
4) Save 50% space compared with traditional dryers and reduce 50% civil investment.
5) Convenient variable frequency control systems. Customer could change the material flow rate and product moisture based on their need.
6) Environmental and safe. Modular configuration of dust collection and purification systems.
7) More choice for novel air furnace with high efficiency, convenient manipulation and energy control, which could reduce 30% energy cost and 20% electric cost.
Working Principle
Below is Drying Process
Below is Working Principle
Technical Parameters
Model(DLSG)
1409
1615
2008/3
2010/3
2210/3
2510/3
2512/3
2912/3
Input Capacity(t/h)
1.53
2.89
5.20
6.63
7.24
8.91
10.50
12.14
Output Capacity(t/h)
1.08
2.03
3.67
4.68
5.11
6.29
7.41
8.57
Vaporization(t/h)
0.45
0.85
1.53
1.95
2.13
2.62
3.09
3.57
Early Moisture(%)
40±5%
Final Moisture(%)
15%(adjustable)
Drying Temperature(°C)
280±30℃
Total Power(KW)
34
45
78
90
105
125
140
155
Total Weight(T)
22
28
40
45
50
60
68
76
Plant Area(m*m)
5*15
6*22
8*16
8*18
8*20
10*20
10*24
10*24
Except above models, we also can supply special model according to your requirements.
Packing & Delivery

Below is Dingli Group Packaging & Shipping:

Your device will be packed well in container and suit for long ocean shipping.

Below is Dingli Group Service Items:

Pre-sale
1. According to your needs, select right model for you.
2. According to your special requirements, design customized solution and manufacture customized products for you.
3. Welcome your visit.
Sale
1. Sign contract, pay deposit, we arrange production.
2. Product acceptance.
3. Help you formulate construction scheme.
After-sale
1. Assign engineer service for you on-site freely.
2. Install and adjust device, train how to operate.
3. After installation, leaving 1-2 technical staff to help you on-site production, until achieve customer satisfaction.

Company Information

Dingli Main Products

Biomass Pellet Production Line

Wood Sawdust Dryer

Cassava Residue Dryer

Brewer Grain Dryer

Slime Coal Dryer

Chicken Manure Dryer

Coconut Fiber Dryer

Coconut Coir Dryer

Beer Yeast Dryer


Below are Dingli Group Factory & Sales Team:


Below are Dingli Group Honors & Certificates & Patents:

Buyer & Project Case

Below are Dingli Customers Visiting:

Dingli Dryer Production Line has exported to over 30 countries with 300 foreign partners, such as Germany, Britain, United States, Italy, Israel, Chile, Thailand, Russia, Vietnam, India, Cambodia, Indonesia, Malaysia, Thailand etc.

Below are Installation Sites of Our Customers:

After reach deals, Dingli Engineer will fly to your address, install and adjust machine for you freely.
Also train you operation skills, until you are satisfied.
