Energy Saving Briquette Making Machine Sawdust Biomass Machine
1.Product Description of biomass briquettes making plants
Raw materials: they are some agro-forestry wastes and biomass wastes, such as sawdust, crop straw, wood branches, rice hull, bamboo sawdust, peanut shell, coconut shell, sunflower shell, furfural dregs, cotton stalks, corn stalks, sesame straw, corncob and so on. The raw materials diameter should be below 3-5mm, and the moisture should be 8%-12%.
Working principle : using screw propeller's high pressure and heating ring's high temperature, compress and extrude loose biomass into high density and small volume wood briquettes.
Finished wood briquettes are hollow quadrangular, hexagonal or cylindrical 50-80 mm diameter rod shape, with 15-20 mm hole in it. It can used as fuel, boiler heating, cooking, and other field. Especially after carbonized, not only it has long burning time, but also smokeless, smelless, clean, widely used in barbecue market.

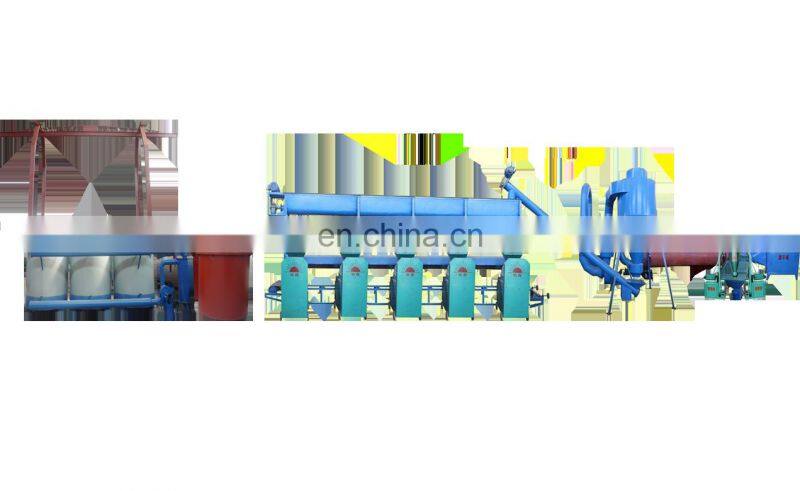

Complete production line: Raw materials----Crusher----Conveyor----Dryer----Conveyor----Biomass briquette machine----Carbonization furnace (oven)
Briquette machine types and the detail parameter information as follows:
Model |
Capacity kg/h |
Power kw |
Material temperature |
Weight kg |
Packing dimension mm |
ZBJ50-9 |
100-200 |
18.5 |
8-12% | 550 |
1680×720×1250 |
ZBJ50-C |
350-420 |
22 |
8-12% | 750 |
2700×700×1550 |
ZBJ60-9 |
220-240 |
18.5 |
8-12% |
620 |
1680×700×1250 |
| ZBJ70-9 | 280-350 | 18.5 | 8-12% | 680 | 2400×700×1400 |
| ZBJ80-9 | 320-380 | 22 | 8-12% | 750 | 1960×720×1320 |

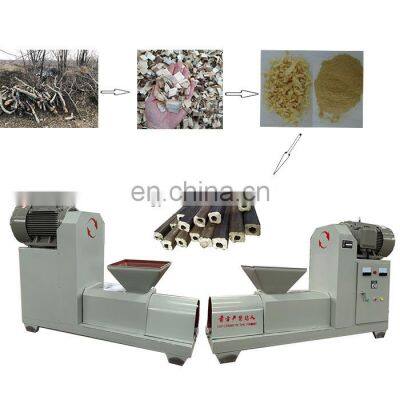

Raw material
Final briquettes

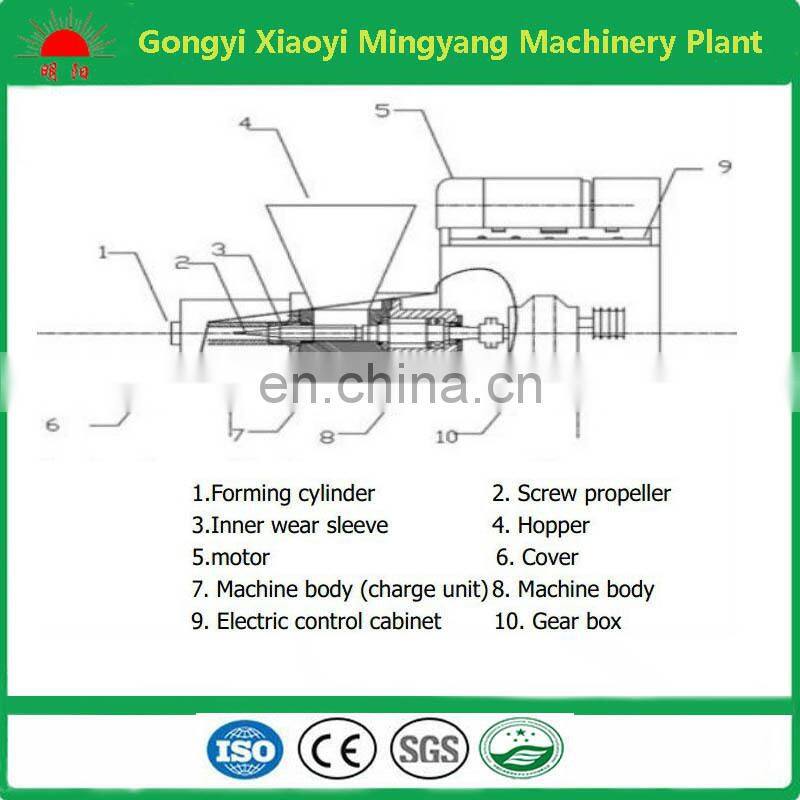

Working principle
Complete production line
1. Crush the raw material into small pieces (size is about 3-5mm), if your raw material size is big;
2. Dry the material by the dryer machine or dried it in the sun, till the moisture is less than 8%- 12%; if your raw material moisture content is higher than 8-12%;
3. Put the dried material into feeding inlet of briquette machine by worker or by screw conveyor;
4. Produce the briquette from the dried material without any additive by the wood briquette machine;
5. Carbonized the briquette and become charcoal briquette.

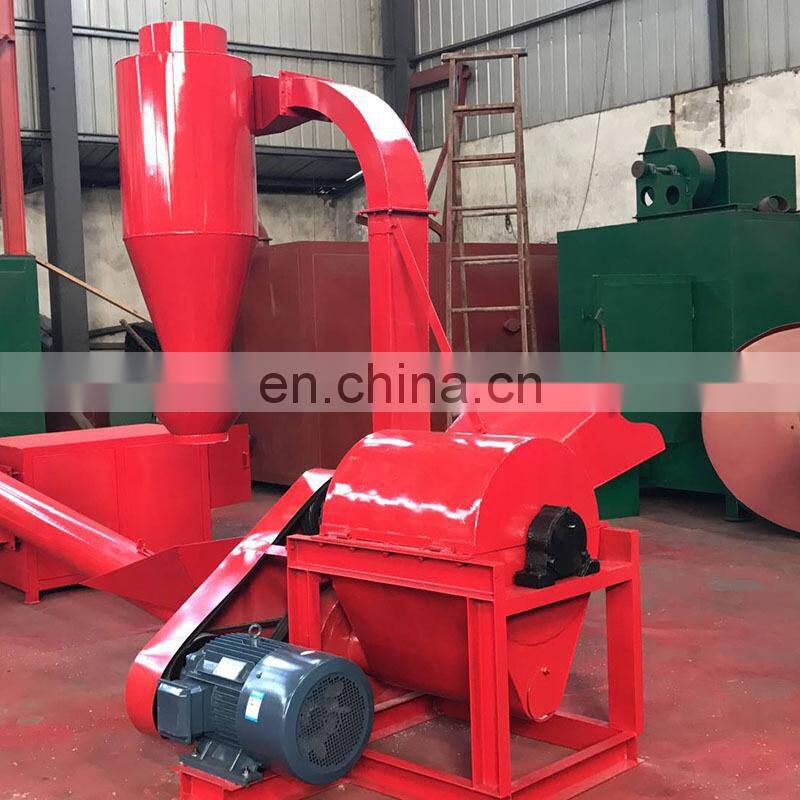

Crusher

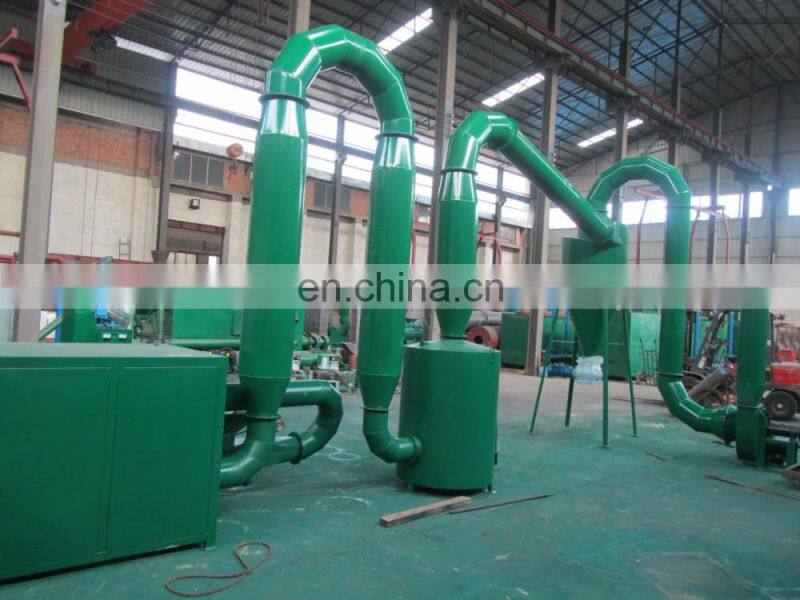

Dryer
If you raw material is too wet, you can use our double -port dryer
Carbonization furnace (oven)
For one set we packed in standard container.For more sets machines, we pack them in the standard container.
Gongyi Xiaoyi Mingyang Machinery plant is located in Zhengzhou.Henan province. Our machineryplant is specialize in WOOD BRIQUETTE MACHINE 26 years.
There have production line of makingwood charcoal briquette(including crusher , dryer , wood briquette machine, carbonization stove) ,
production line of making wood pellet (including crusher, dryer , wood pellets machine , dust separation plant and packaging machine)
production line of making coal ball briquette(includingvertical crusher, mixing machine, coal briquette pressing machine and dryer machine for coal briquette)
and other equipment such as screw conveyor, belt conveyor, scrap conveyor , sawdust carbonization stove, floating fish feed machine and so on.
Our machines have the best quality and we have got many certification such as CE, ISO, BV.
