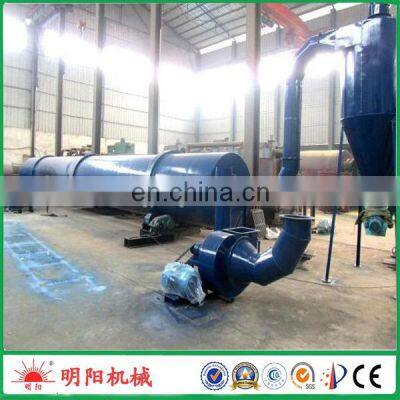

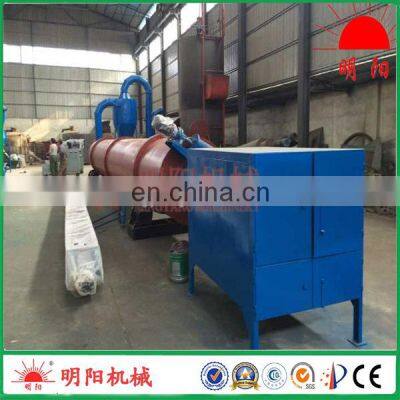

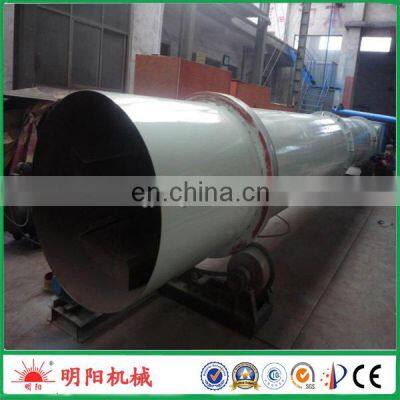

High Capacity Wood Drying Machine/Sawdust Dryer Price/Biomass Rotary Dryer
1, It is professionally designed for drying different kinds of wood sawdust
2, has a reasonable structure, well-produced, high yield, and low consumption, the advantages of operating convenience
3, Then water will be separated from the materials by hot air-flow and changed into vapor to be discharged into the atmosphere. Then the materials would be dried.
4, High degree of mechanization, large production capacity, continuous option
5, Simple and excellent structure, material running smoothly through the cylinder, operating convenience
6, With reliable performance, that high efficiency on heat power, Uniform on dry, less time on cleaning machine.
7, Strong resistance to overload, operating smoothly and high reliability
3. The specifciations of the Wood Drying Machine
Model |
GT630 |
GT800 |
GT1000 |
GT1200 |
GT1500 |
Capacity kg/h |
600-800 |
800-1000 |
1200-1500 |
1500-2000 |
2000-2500 |
Main Power |
5.5kw |
7.5kw |
7.5kw |
11kw |
15kw |
Air lock power |
1.1kw |
1.5kw |
2.2kw |
2.2kw |
2.2kw |
Weight |
2600kg |
2800kg |
3800kg |
4500kg |
5000kg |
Diameter of roller |
630mm |
800mm |
1m |
1.2m |
1.5m |
Length of roller |
9m |
10m |
10m |
12m |
12m |
Total length |
9+4m |
10+5m |
10+5m |
12+6 |
12+8m |
Wood waste consumption |
15-20kg/h |
20-25kg/h |
30-40kg/h |
40-50kg/h |
50-60kg/h |
Moisture |
From 40-70% to 8-12% |
||||
Model |
Capacity (kg/h) |
Power (kw) |
Weight (kg) |
Output moisture |
Input moisture |
QHJ-4 |
200-350 |
4 |
1000 |
8-12% |
20-50% |
QHJ-6 |
400-500 |
5.5 |
1500 |
||
QHJ-8 |
600-700 |
11 |
2500 |
For the single machine, we use the plywood cases for packing, and for the whole container machine, we will ask the shipping company send one container to our factory and we will loading ourself, to make sure the machine are carefully loading and delivery
| Note |
|
Before we give you the professional recommendation, please confirm the following information: Requirement and specification: 1. name of the raw material ? 2. size&moisture of the raw material? 3. how many raw material you have one day? 4. how many hours you want to working per day? 5. what's the output you need? 6. what's the kind of the final product you need? ( the shape, diameter, length) 7. the usage of the final product ? 8. electrical supply in your place?
|
