Large Capacity Home Used Wood Waste Crusher Grind Machine Wood Crushing Machine
- 1000 per Month
- T/T Credit Card
- Industrial Wood Chipper Sawdust Making Machine In Malaysia Low Noise Branch Shredder Machine
- Tree Branch Shredder Chipper Wood Chipper Crusher Blades Knife Wood Chipper Crushing Machine
- Multi Functional Wood Shredder Wood Chipper Crusher Find Complete Details About Wood Chipper Crusher
- Diesel Driven Forest Equipment Hydraulic Feeding Heavy Duty Wood Chipper With CE
- Wood Chipper Sawdust Machine Branch Crushing Machine Logs Crushing Machinery
- Low Noise Branch Shredder Machine Template Chipper Scrap Wood Pallet Drum Chipper
Product Description

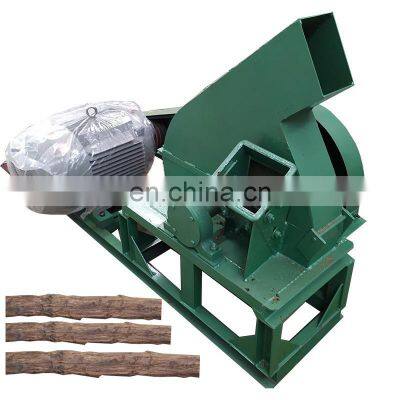

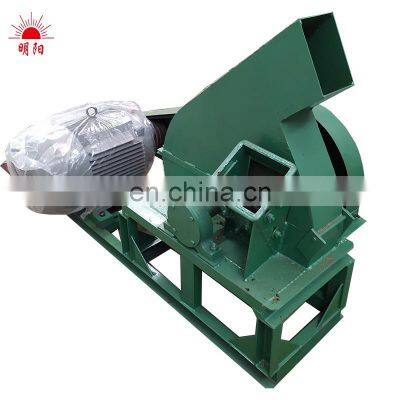

Large Capacity Home Used Wood Waste Crusher Grind Machine Wood Crushing Machine
1.Product Description of wood chipper machine
1.Wood chipper machine is to process logs or branches into 30mm.
2.Wood chipper machine is suitable for wood ball, textile, papermaking and other industries.
3.Wood chipper machine is a leather-making, pulping and wood-based panel industry.
4.Wood chipper machine has no special requirements for raw materials, so it can process logs, peeled twigs, bamboo, board, etc.
5.Wood chipper machine produces the sawdust with uniform length and minimal wear of sawdust disc, and the qualified rate is more than 97%.
Model | Capacity | Power | Weight | Main shaft speed | Blade qty | Blade diameter | Feeding inlet size |
MY-400 | 0.8-1.0t/h | 7.5-11kw | 160kg | 650r/min | 3pieces | 400mm | 150*150mm |
MY-600 | 1.5-2t/h | 15kw | 380kg | 600r/min | 3pives | 600mm | 180*150mm |
MY-800 | 3-6t/h | 22-30kw | 520kg | 550r/min | 4pieces | 800mm | 200*200mm |
MY-950 | 5-8t/h | 30-37kw | 950kg | 550r/min | 4pieces | 900mm | 230*250mm |
MY-1150 | 8-10t/h | 55-75kw | 2000kg | 500r/min | 4pieces | 1100mm | 330*300mm |
MY-1410 | 15-16t/h | 110kw | 2600kg | 500r/min | 4pieces | 1400mm | 400*400mm |
MY-1500 | 15-25t/h | 132kw | 3500kg | 500r/min | 4pieces | 1500mm | 480*450mm |
Raw material and final of wood chipper machine
Raw material could be wood log wood tree branch etc.
1. Crush the raw material into small pieces (size is about 3-5mm), if your raw material size is big;
2. Dry the material by the dryer machine or dried it in the sun, till the moisture is less than 8%- 12%; if your raw material moisture content is higher than 8-12%;
3. Put the dried material into feeding inlet of briquette machine by worker or by screw conveyor;
4. Produce the briquette from the dried material without any additive by the wood briquette machine;
5. Carbonized the briquette and become charcoal briquette.
Dryer:Dry the material by the dryer machine or dried it in the sun, till the moisture is less than 8%- 12%; if your raw material moisture content is higher than 8-12%;
Carbonization stove:If you want to make wood charcoal , you can use our carbonization stove .
3. working principle of wood chipper machine
The wedge adjustment block is filled into the bottom of the blade to adjust its shape.The rear blade is an adjustable pad for adjusting the compensation length of the worn blade. Interconnecting chip gaps on the other side of the blade are evenly distributed outside the disc, generating air to blow out the wood chips. After screening, put the big wood into the wood crusher a second time. The pieces of wood are of the same length.
Gongyi Xiaoyi Mingyang Machinery plant is located in Zhengzhou.Henan province. Our machineryplant is specialize in WOOD BRIQUETTE MACHINE 26 years.
There have production line of makingwood charcoal briquette(including crusher , dryer , wood briquette machine, carbonization stove) ,
production line of making wood pellet (including crusher, dryer , wood pellets machine , dust separation plant and packaging machine)
production line of making coal ball briquette(includingvertical crusher, mixing machine, coal briquette pressing machine and dryer machine for coal briquette)
and other equipment such as screw conveyor, belt conveyor, scrap conveyor , sawdust carbonization stove, floating fish feed machine and so on.
Our machines have the best quality and we have got many certification such as CE, ISO, BV.
If you need our product , you can communication with me in any way as follows.
If you need our product, please click"send".
