28 awg 4 core 4mm pvc cable blindado kabel shielded cable

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

28 awg 4 core 4mm pvc cable blindado kabel shielded cable

PRODUCT DESCRIPTION

KINGYEAR Cable is one of the leading cable products production enterprise in China,our mainly products are electrical wire,power cable, control cable,bare conductor (AAC/AAAC/ACSR),ABC Aerial Bundled Cable

28 awg 4 core 4mm pvc cable blindado kabel shielded cable

Applications:
Electrical wires is suitable for use in power installations, fixed wiring and flexible
connections for electrical appliances like lighting, electronic equipment, instrument
and communication equipment with rated voltage 450/750V or less
Advantages
1. Excellent electric and mechanical characteristics
2. Best Resistance chemical corrosion and heat-ageing,environment stress and flame-retardant
3. Simple in structure,Convenient to use
4. Reduce costs

Electrical wires types
Model	Name
BV	Copper Core PVC Insulation Wire
BLV	Aluminum Core PVC Insulation Wire
BVR	Copper Core PVC Insulation Flexible Wire
BVV	Copper Core PVC Insulation PVC Sheath Round Wire
BVVB	Copper Core PVC Insulation PVC Sheath Flat Wire
BLVVB	Aluminum Core PVC Insulation PVC Sheath Flat Wire
BV-90	Copper Core Heat-resistance 105oC PVC Insulation

Technical data of Electrical wire, any customized is available.
Nominal sectional area mm2	Conductor No/Dia. mm	Nominal Insulated thick mm	Max overall Dia. mm	Condcutor Resistance at 20			Min insulated resistance at 70MΩ/km	Weight Kg/km
Nominal sectional area mm2	Conductor No/Dia. mm	Nominal Insulated thick mm	Max overall Dia. mm				Min insulated resistance at 70MΩ/km		Cu	Al	Cu	Al
0.5	1/0.8	0.6	2.4	36.0		0.015	8.41
0.75	1/0.97	0.6	2.6	24.5		0.012	10.6
1	1/1.13	0.6	2.8	18.1		0.011	14.5
1.5	1/1.38	0.7	3.3	12.1	-	0.011	19.2	-
1.5	7/0.52	0.7	3.5	12.1	-	0.010	20.6	-
2.5	1/1.78	0.8	3.9	7.41	11.8	0.010	30.8	15.0
4	1/2.25	0.8	4.4	4.61	7.39	0.0085	45.5	21.0
6	1/2.76	0.8	4.9	3.08	4.91	0.0070	65.0	29.0
10	7/1.35	1.0	7.0	1.83	3.08	0.0065	110.0	52.0
16	7/1.70	1.0	8.0	1.15	1.91	0.0050	170.0	70.0
25	7/2.14	1.2	10.0	0.727	1.20	0.0050	270.0	110.0
35	7/2.52	1.2	11.5	0.524	0.868	0.0040	364.0	150.0
50	19/1.78	1.4	13.0	0.387	0.641	0.0045	500.0	200.0
70	19/2.14	1.4	15.0	0.268	0.443	0.0035	688.0	269.0
95	19/2.52	1.6	17.5	0.193	0.320	0.0035	953.0	360.0
120	37/2.03	1.6	19.0	0.153	0.253	0.0032	1168.0	449.0
150	37/2.25	1.8	21.0	0.124	0.206	0.0032	1466.0	551.0
185	37/2.52	2.0	32.5	0.099	0.164	0.0032	1808.0	668.0

COMPANY PROFILE

HENAN KINGYEAR GROUP was founded in 2006,located in the Gongyi industry area of Henan Province.Occupies more than 1200,000 square meters,more than 800 employees.Our company consists of 3 main subsidiaries,Business specialized in development,manufacture and distribution of aluminum and cable products.Mainly including aluminum plate,aluminum coil,bare aluminum conductor,aerial bundled cable,Low voltage and medium voltage power cable,Electrical wire,control cable,etc... _{CLICK MORE}

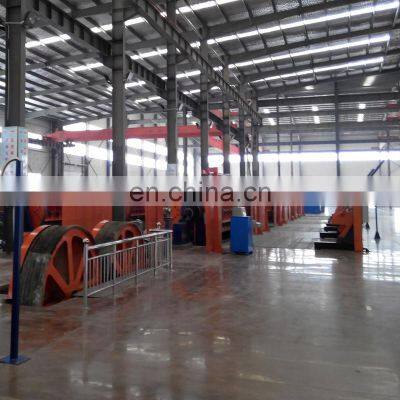

PLANT AND OFFICE SHOWN:

3 workshops and 1 office building of international trade.

TESTING MACHINE SHOWN:

CERTIFICATE SHOWN:

ISO,CE,CCC,ROHS,UL,VDE of 28 awg 4 core 4mm pvc cable blindado kabel shielded cable

CUSTOMER

After more than 20 years of development, our customers have spread to more than 40 countries and regions around the world, And more than 50% are old customers.The power cable,control cable,ABC cable,bare conductor(AAC/AAAC/ACSR) are more favorited by them.We are proud of our good quality---KINGYEAR CABLE.

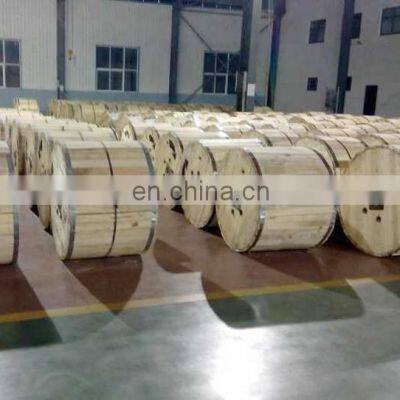

PACKAGE

PACKAGING FLOW of 28 awg 4 core 4mm pvc cable blindado kabel shielded cable

FAQ

Q:I didn't find the cable which I need in this page?

A:If you didn't find the species of cables you need, please contact us directly, we will reply you quickly.

Q:What's your minimum order quantity?

A:It is not so sure, you can confirm it with us. Normally, it will be 1000 meters.

Q:What's your delivery time?

A:It depends on whether we just has the stock for your type.Normally,it takes about 7-15days to achieve production.

Q:How can I get a sample from your company? Is the sample free?

A:If you need the sample to check the quality, please contact us,we will send you the free sample, but the freight charge should be paid.

Q:How to ensure quality ?

A:For any quality problems, we will arrange the technical personnel to solve or return the goods as soon as possible, and bear the corresponding customer losses.

Q:What if the cable which we need have some differences on specifications from yours?

A: Any difference, we can design and produce according to your requests, which include cable, color, material, processing requirement etc.
