400kv High Voltage 240mm XLPE Insulated PVC Sheathed Power Cable High Voltage Cable 400kv

Name: 400kv High Voltage 240mm XLPE Insulated PVC Sheathed Power Cable High Voltage Cable 400kv
Price: Negotiable

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Description

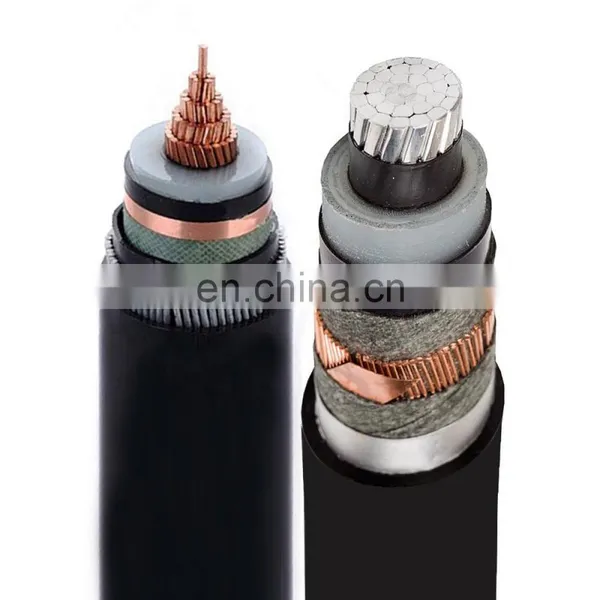

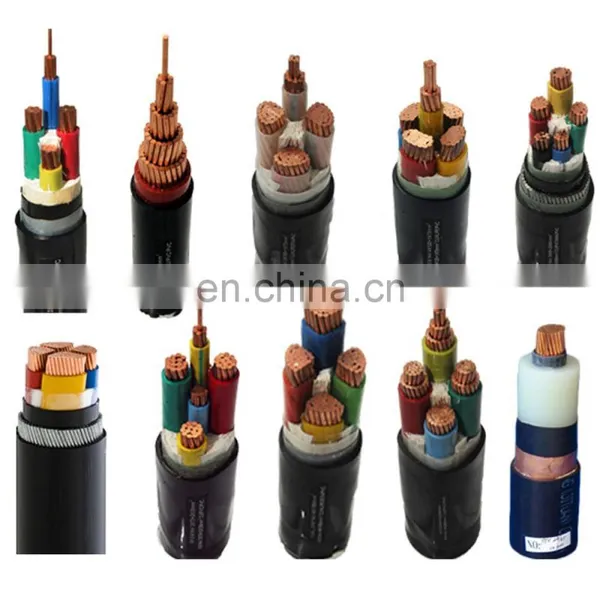

400kv High Voltage 240mm XLPE Insulated PVC Sheathed Power Cable High Voltage Cable 400kv

WHY CHOOSE US

PRODUCT DESCRIPTION

KINGYEAR Cable is one of the leading cable products production enterprise in China,our mainly products are electric wire,power cable, control cable,bare conductor (AAC/AAAC/ACSR),ABC Aerial Bundled Cable

Regards the 400 kv High Voltage 240mm XLPE Insulated PVC Sheathed Power Cable.

Applications:
PVC insulated power cable is suitable for laying fixed in power transmission and distribution lines with A.C. 50HZ and rated voltage of 0.6/1kV.
XLPE insulated power cable has a number of advantages compared with paper insulated and PVC insulated cables. XLPE cable has high electric property, mechanical property, heat aging performance, environmental stress crack resistance, chemical corrosion resistance, and it also has simple structure, convenient operation and it is not restricted by laying in large difference of level. It can be applied in high temperature of 90 degree for a long time.
Technology property of 400 kv High Voltage 240mm XLPE Insulated PVC Sheathed Power Cable:
1. Max temperature for Long-time working:≤90°C
2. Installing temperature: ≥0°C
3. Max short-circuit (Not more than5 Sec) temperature: 250°C
4. Unable be laid without the limit of fall with enough mechanical pull,Single core cable can not be laid in iron tube or fixed by circled iron tools around cables

The detail technical data of 400 kv High Voltage 240mm XLPE Insulated PVC Sheathed Power Cable as below for reference,any customized is available.
Rated Voltage, No. of Core and Range of Sectional Area
Rated voltage (kv) Sectional area (mm2) No. of core	1st class	0.6/1	1.8/3	3.6/6	6/10	8.7/15	12/20	18/30	21/35
Rated voltage (kv) Sectional area (mm2) No. of core		2nd class	1/1	3/3	6/6	8.7/10	12/15	18/20	-	26/35
1 Core		1.5-800	25-800	25-1200	25-1200	35-1200	50-1200	50-1200	50-1200
2 Core		1.5-185	25-185
3 Core		1.5-400	25-400	25-400	25-400	35-400	50-400	50-400	50-400
4 Core		2.5-400	25-400
5 Core		2.5-400	25-400

DC resistance: conductor resistance of finished cable at 20ºC per kilometer is not more than the following values.
Nominal section area (mm2)	Copper core	Aluminum core	Nominal section area (mm2)	Copper core	Aluminum core
1.5	12.1	18.1	95	0.193	0.32
2.5	7.41	12.1	120	0.153	0.253
4	4.61	7.41	150	0.124	0.206
6	3.08	4.61	185	0.099	0.164
10	1.83	3.08	240	0.0754	0.125
16	1.15	1.91	300	0.0601	0.1
25	0.727	1.2	400	0.047	0.778
35	0.524	0.868	500	0.0366	0.0605
50	0.387	0.641	630	0.0283	0.0469
70	0.268	0.443	800	0.0221	0.0367

COMPANY PROFILE

HENAN KINGYEAR GROUP was founded in 2006,located in the Gongyi industry area of Henan Province.Occupies more than 1200,000 square meters,more than 800 employees.Our company consists of 3 main subsidiaries,Business specialized in development,manufacture and distribution of aluminum and cable products.Mainly including aluminum plate,aluminum coil,bare aluminum conductor,aerial bundled cable,Low voltage and medium voltage power cable,Electrical wire,control cable,etc... _{CLICK MORE}

PLANT AND OFFICE SHOWN:

3 workshops of 400 kv High Voltage 240mm XLPE Insulated PVC Sheathed Power Cable.

TESTING MACHINE SHOWN: 400 kv High Voltage 240mm XLPE Insulated PVC Sheathed Power Cable testing :

CERTIFICATE SHOWN:

ISO,CE,CCC,ROHS,UL,VDE of 400 kv High Voltage 240mm XLPE Insulated PVC Sheathed Power Cable.

CUSTOMER

After more than 20 years of development, our customers have spread to more than 40 countries and regions around the world, And more than 50% are old customers.The power cable,control cable,ABC cable,bare conductor(AAC/AAAC/ACSR) are more favorited by them.We are proud of our good quality---KINGYEAR CABLE.

PACKAGE

PACKAGING FLOW of 400 kv High Voltage 240mm XLPE Insulated PVC Sheathed Power Cable.

Some of our products packaging records shown:

They are 400 kv High Voltage 240mm XLPE Insulated PVC Sheathed Power Cable.

FAQ

Q:I didn't find the cable which I need in this page?

A:If you didn't find the species of cables you need, please contact us directly, we will reply you quickly.

Q:What's your minimum order quantity?

A:It is not so sure, you can confirm it with us. Normally, it will be 1000 meters.

Q:What's your delivery time?

A:It depends on whether we just has the stock for your type.Normally,it takes about 7-15days to achieve production.

Q:How can I get a sample from your company? Is the sample free?

A:If you need the sample to check the quality, please contact us,we will send you the free sample, but the freight charge should be paid.

Q:How to ensure quality ?

A:For any quality problems, we will arrange the technical personnel to solve or return the goods as soon as possible, and bear the corresponding customer losses.

Q:What if the cable which we need have some differences on specifications from yours?

A: Any difference, we can design and produce according to your requests, which include cable, color, material, processing requirement etc.
