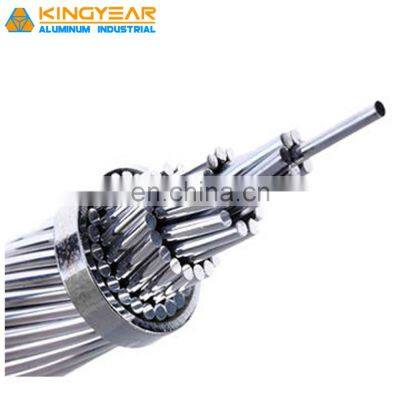

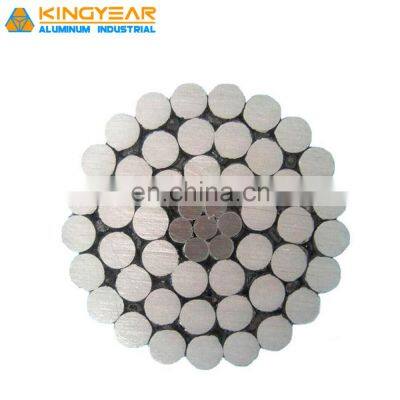

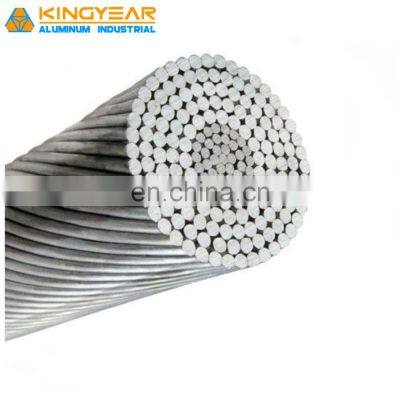

ACSR 120/20 conductor cables and wires
PRODUCT DESCRIPTION
KINGYEAR Cable is one of the leading cable products production enterprise in China,our mainly products are electric wire,power cable, control cable,bare conductor (AAC/AAAC/ACSR),ABC overhead cable.
The technical data of ACSR 120/20 conductor cables and wires as below for reference, any customized is available.
ACSR ASTM B232 |
||||||||||
Code Name |
Size |
No./Dia.of Stranding Wires |
Approx. Overall Dia. |
Approx. Weight |
||||||
Nominal |
Aluminum |
Steel |
||||||||
AWG or MCM |
No./mm |
No./mm |
mm |
kg/km |
||||||
Turkey |
6 |
6/1.68 |
1/1.68 |
5.04 |
54 |
|||||
Swan |
4 |
6/2.12 |
1/2.12 |
6.36 |
85 |
|||||
Swanate |
4 |
7/1.96 |
1/2.61 |
6.53 |
100 |
|||||
Sparrow |
2 |
6/2.67 |
1/2.67 |
8.01 |
136 |
|||||
Sparate |
2 |
7/2.47 |
1/3.30 |
8.24 |
159 |
|||||
Robin |
1 |
6/3.00 |
1/3.00 |
9 |
171 |
|||||
Raven |
1/0 |
6/3.37 |
1/3.37 |
10.11 |
216 |
|||||
Quail |
2/0 |
6/3.78 |
1/3.78 |
11.34 |
273 |
|||||
Pigeon |
3/0 |
6/4.25 |
1/4.25 |
12.75 |
343 |
|||||
Penguin |
4/0 |
6/4.77 |
1/4.77 |
14.31 |
433 |
|||||
Waxwing |
266.8 |
18/3.09 |
1/3.09 |
15.45 |
431 |
|||||
Partridge |
266.8 |
26/2.57 |
7/2.00 |
16.28 |
546 |
|||||
Ostrich |
300 |
26/2.73 |
7/2.12 |
17.28 |
614 |
|||||
Merlin |
336.4 |
18/3.47 |
1/3.47 |
17.5 |
544 |
|||||
Linnet |
336.4 |
26/2.89 |
7/2.25 |
18.31 |
689 |
|||||
Oriole |
336.4 |
30/2.69 |
7/2.69 |
18.83 |
784 |
|||||
Chickadee |
397.5 |
18/3.77 |
1/3.77 |
18.85 |
642 |
|||||
Brant |
397.5 |
24/3.27 |
7/2.18 |
19.61 |
762 |
|||||
Ibis |
397.5 |
26/3.14 |
7/2.44 |
19.88 |
814 |
|||||
Lark |
397.5 |
30/2.92 |
7/2.92 |
20.44 |
927 |
|||||
Pelican |
477 |
18/4.14 |
1/4.14 |
20.7 |
771 |
|||||
Flicker |
477 |
24/3.58 |
7/2.39 |
21.49 |
915 |
|||||
Hawk |
477 |
26/3.44 |
7/2.67 |
21.79 |
978 |
|||||
Hen |
477 |
30/3.20 |
7/3.20 |
22.4 |
1112 |
|||||
Osprey |
556.5 |
18/4.47 |
1/4.47 |
22.35 |
899 |
|||||
Parakeet |
556.5 |
24/3.87 |
7/2.58 |
23.22 |
1067 |
|||||
Dove |
556.5 |
26/3.72 |
7/2.89 |
23.55 |
1140 |
|||||
Contact Us If the other standard you request:(IEC 61089 / BS 215 / Din 48204 / CAS C49). |
||||||||||
Applications: ACSR 120/20 conductor cables and wires is used for overhead ground wires, river crossings, installations involving extra long span and many other applications. ACSR conductors have a higher corona limit can be acquired causing huge advantages on high as well as extra high voltage overhead lines. |
||||||||||

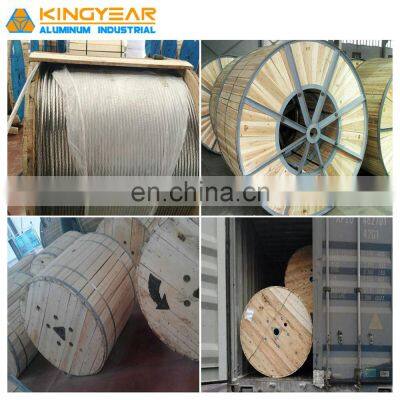

PACKAGE
PACKAGING FLOW of ACSR 120/20 conductor cables and wires as below, customized is accepted.
Some of our products packaging records shown:
RELATED PRODUCTS
Similar Products（Different structure; Different size）
AAC(All Aluminum Conductor)
AAAC(All Aluminum Alloy Conductor)
ACSR(Aluminun Conductor Steel Reinforced)
ACSR/AW ACSR/AS ACSR/AC
AACSR TACSR TACSR/AW
ACAR(Aluminum Conductor Aluminum Alloy Reinforced)
ACCC(Aluminum Composite Core Conductor)
Galvanized Steel Wire /Strand(GSW,SC/GZ)
Aluminum Clad Steel Wire(Alumoweld,ACS,SC/AC)
Aluminum Rod
AAAC(All Aluminum Alloy Conductor)
ACSR(Aluminun Conductor Steel Reinforced)
ACSR/AW ACSR/AS ACSR/AC
AACSR TACSR TACSR/AW
ACAR(Aluminum Conductor Aluminum Alloy Reinforced)
ACCC(Aluminum Composite Core Conductor)
Galvanized Steel Wire /Strand(GSW,SC/GZ)
Aluminum Clad Steel Wire(Alumoweld,ACS,SC/AC)
Aluminum Rod
CUSTOMER
After more than 20 years of development, our customers have spread to more than 40 countries and regions around the world, And more than 50% are old customers.The power cable,control cable,ABC cable,bare conductor(AAC/AAAC/ACSR) are more favorited by them.We are proud of our good quality---KINGYEAR CABLE.
COMPANY STRENGTH
COMPANY PROFILE
HENAN KINGYEAR GROUP was founded in 2006,located in the Gongyi industry area of Henan Province.Occupies more than 1200,000 square meters,more than 800 employees.Our company consists of 3 main subsidiaries,Business specialized in development,manufacture and distribution of aluminum and cable products.Mainly including aluminum plate,aluminum coil,bare aluminum conductor,aerial bundled cable,Low voltage and medium voltage power cable,Electrical wire,control cable,etc... CLICK MORE
PLANT AND OFFICE SHOWN:
3 workshops and 1 office building of international trade.
TESTING MACHINE SHOWN:
CERTIFICATE SHOWN:
ISO,CE,CCC,ROHS,UL,VDE
FAQ
Q:I didn't find the cable which I need in this page?
A:If you didn't find the species of cables you need, please contact us directly, we will reply you quickly.
Q:What's your minimum order quantity?
A:It is not so sure, you can confirm it with us. Normally, it will be 1000 meters.
Q:What's your delivery time?
A:It depends on whether we just has the stock for your type.Normally,it takes about 7-15days to achieve production.
Q:How can I get a sample from your company? Is the sample free?
A:If you need the sample to check the quality, please contact us,we will send you the free sample, but the freight charge should be paid.
Q:How to ensure quality ?
A:For any quality problems, we will arrange the technical personnel to solve or return the goods as soon as possible, and bear the corresponding customer losses.
Q:What if the cable which we need have some differences on specifications from yours?
A: Any difference, we can design and produce according to your requests, which include cable, color, material, processing requirement etc.
