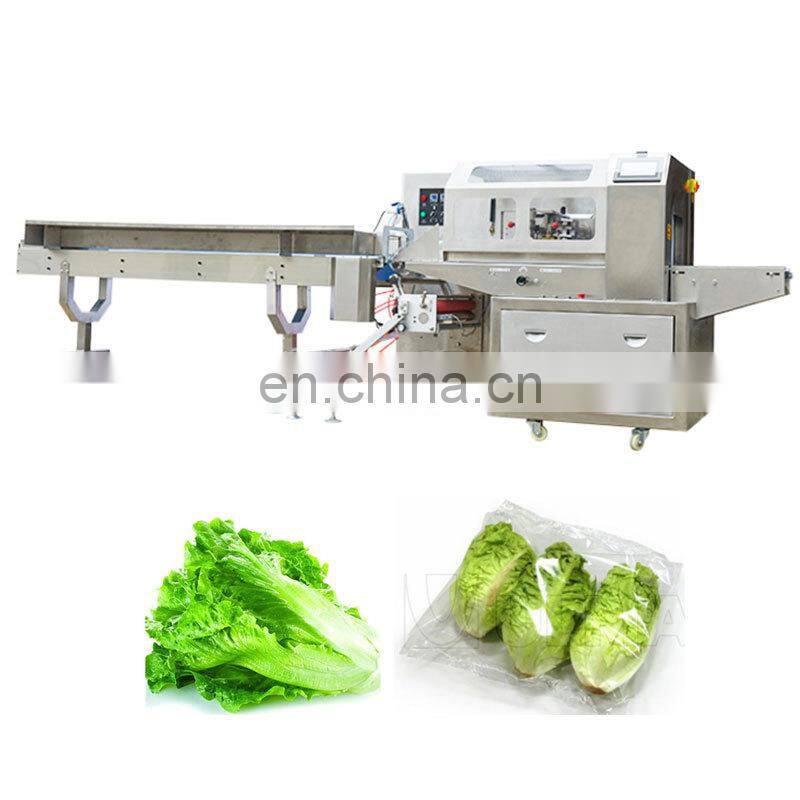

Fresh Vegetables Fruit Packaging Machine Introduction:
1. Packaging products: leafy vegetables, roots and stems (cucumber, carrot, eggplant, yam, lotus root, celery, corn, etc.).
2. Recommended model: THB-600 vegetable packaging machine + punching machine (punching 16 holes).
3. The maximum film width is 600mm, and the maximum bag width is 280mm. The film width of different sizes can be changed according to different size products.
4. Packaging materials: anti-fog film, composite film, single-layer OPP, and other heat-sealable packaging materials.
5. Optional matching: weighing and labeling machine, finished product turntable, laser printing, punching machine, ink wheel coding machine, etc.
6. Packaging benefits: It can prevent customers from picking and throwing and damage, and has a fresh-keeping effect. After packaging the product, the appearance is clean and hygienic. There is a brand to check, and it has a long-term brand promotion effect.
Fresh Vegetables Fruit Packaging Machine Machine Features:
1. The use of optical fiber sensors can automatically identify the length of the material, and the length of the material does not need to be fixed (variable length);
2. It can automatically detect whether there are materials, stop when there is no material, and the anti-air bag anti-cutting material;
3. Cylinder-type cutter adopts servo control, which has higher controllability, more precision, simple operation, convenient maintenance and affordable price;
4. Compact structure, stable performance, quiet and stable operation;
5. Adopting touch man-machine interface, parameter setting is convenient and quick fault self-diagnosis function, fault display is clear at a glance;
6. High-sensitivity photoelectric eye color mark tracking to make the sealing and cutting position more accurate;
7. Independent PID control of temperature, better suitable for coating of various materials;
8. Positioned stop function, no sticking to the knife, no waste of film;
9. The rotating system is simple, the work is more reliable, and the maintenance is more convenient.
Fresh Vegetables Fruit Packaging Machine Technical parameter and price :
|
Type |
THB-600 |
|
Film width |
< 600mm |
|
Bag Length |
50-100mm |
|
Bag width |
100-280mm |
|
Product high |
less than 150mm |
|
Film roll diameter |
320mm |
|
Packing speed |
20-120bag/min |
|
Power |
220V,50/60HZ,3.6KVA |
|
Machine size |

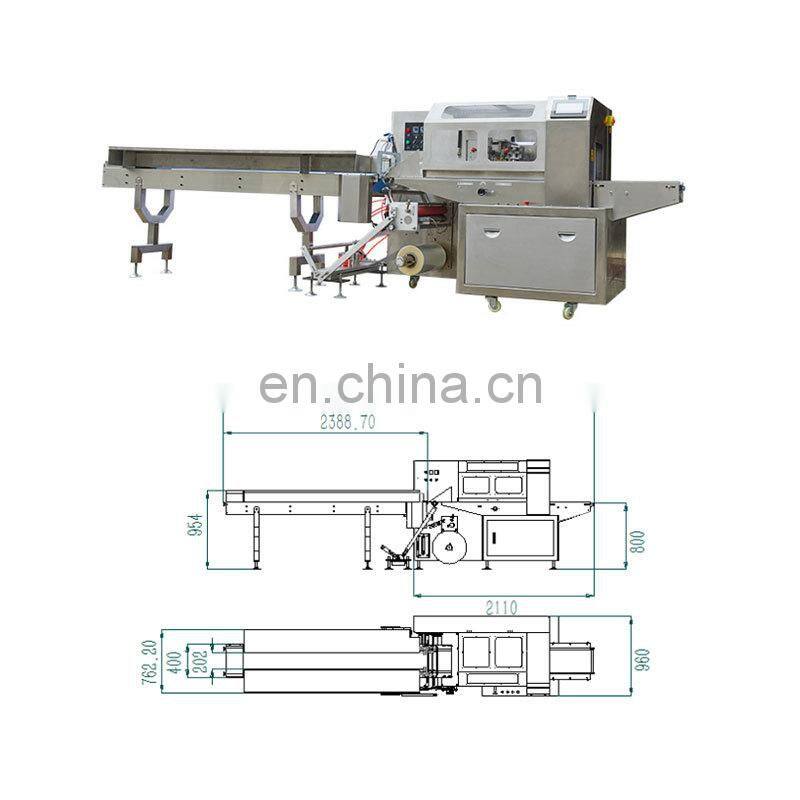

(L)4340×(W)960×(H)1350 |
|
Gross weight |
800Kg |
Machine's details of Fresh Vegetables Fruit Packaging Machine
01.Servo control knife end seal
The height of the cutter can be adjusted according to the height of different vegetables

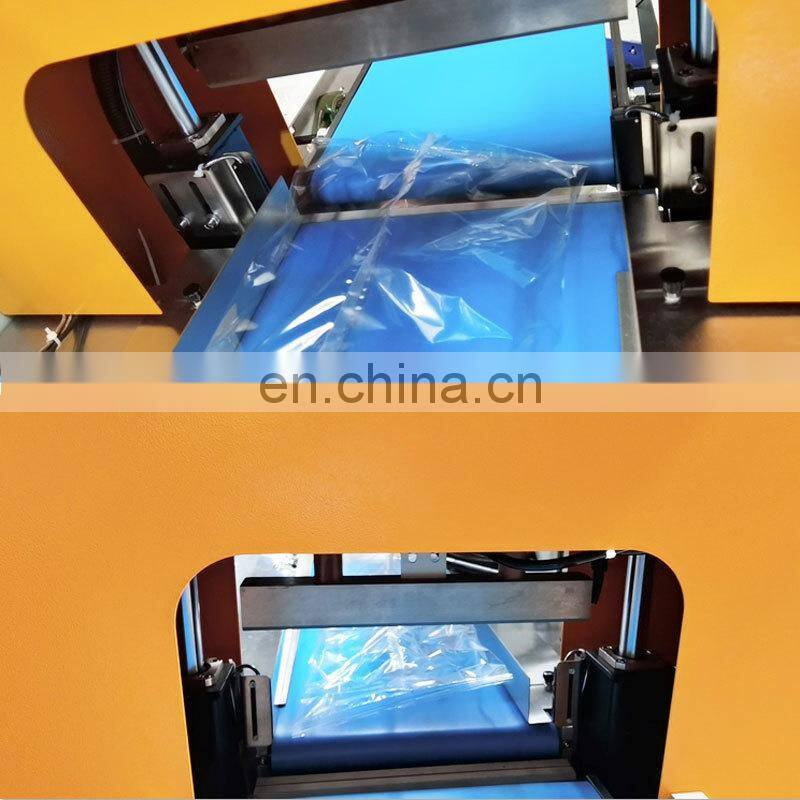

02. A device to prevent vegetables from being clamped and Device to prevent film breaking

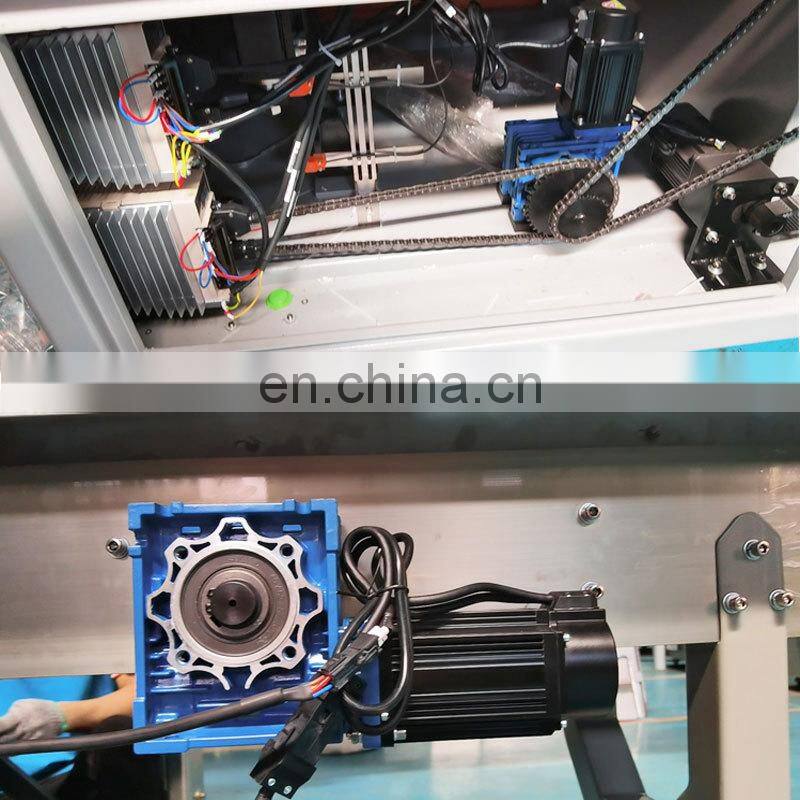

03. Three servo motors
Precise positioning,
high speed operation,
stable operation, no noise
