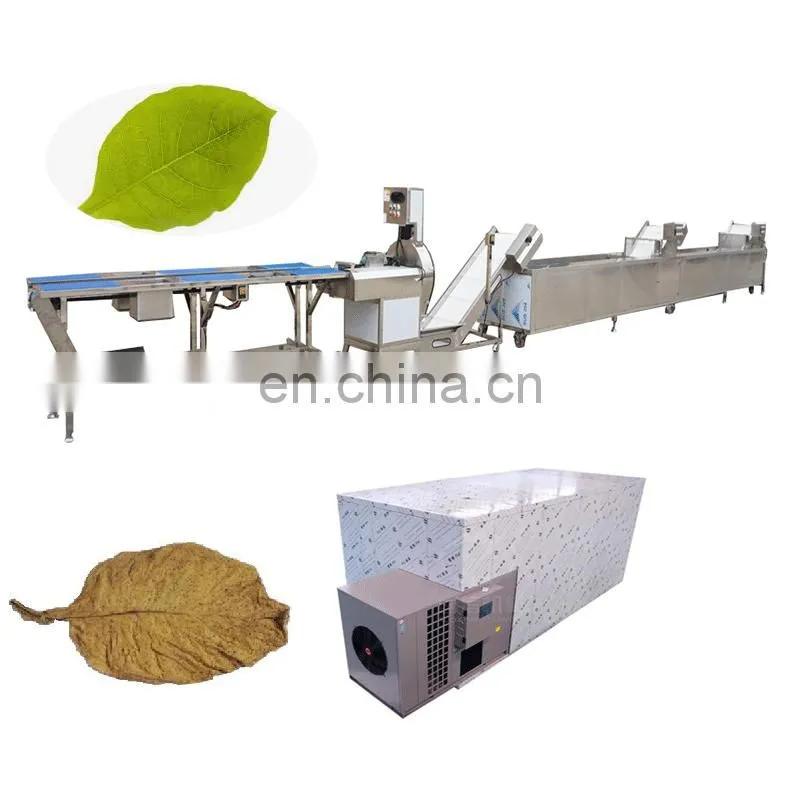

Lettuce leaf Vegetables Spinach Cutting Washing Drying Full Automatic Processing Machine Line

 leaf Vegetables Cutting Washing Drying  Full Automatic Machine Line (Cutting Split Blanching And Drying)

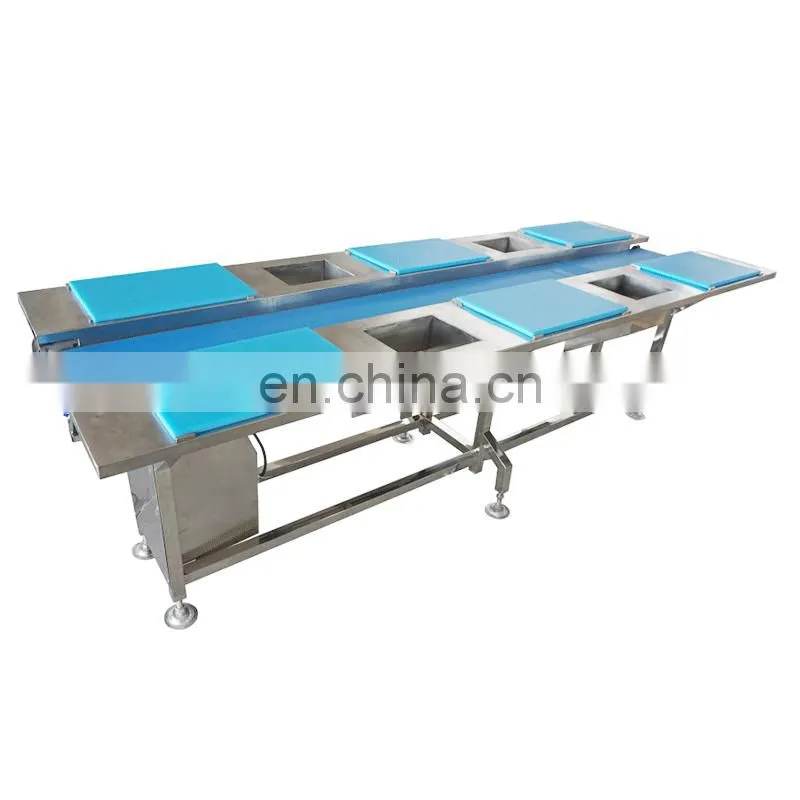

--Sorting and conveying Workbench

Used for primary picking and segmentation of fruit and vegetable materials.
The whole machine adopts detachable design and is equipped with waste collection device. The number of stations can be customized according to the actual needs of customers.

Product model: ZH-TS1
Product material: 304 stainless steel
Power supply: 380V
Power: 0.75KW
Size: 1800*800*1300mm

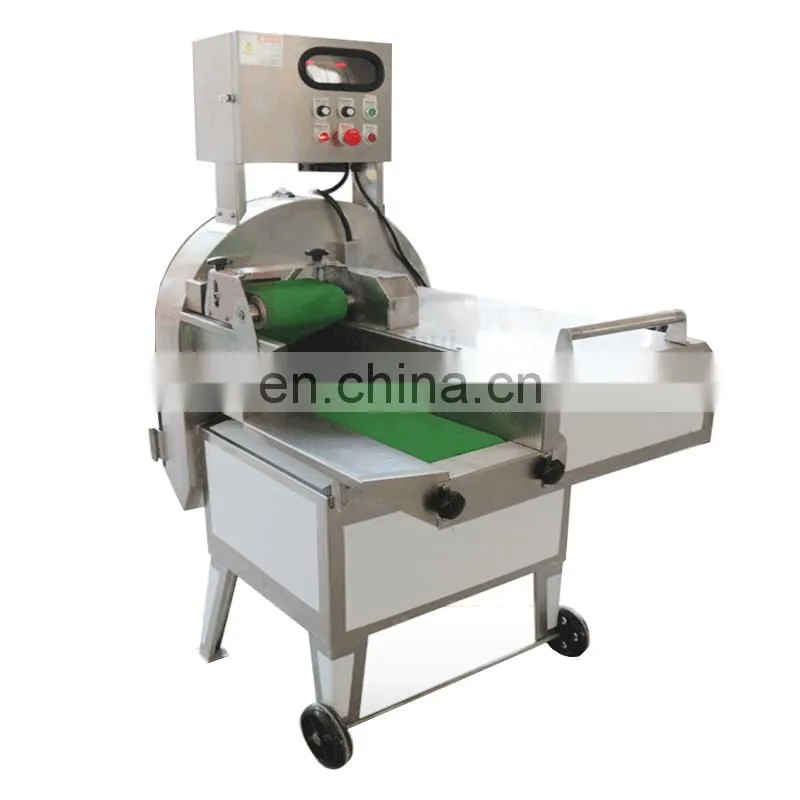

--Large vegetable cutter
Product function: It can cut leafy vegetables, such as long onions, garlic sprouts, leeks, celery, cabbage, green vegetables, etc. It can also cut strips of fruits, such as bananas, radishes, cucumbers, peppers, eggplants, etc.
Product advantages: can be sliced, cut into sections, and cut into strips (length and length can be adjusted). The speed of the conveyor belt and the speed of the rotating knife are independently adjusted by the frequency converter. One machine has multiple functions, powerful functions, high output, convenient replacement and cleaning of cutter heads, and simple operation.

Product model: ZH-Q303L
Specification: 1000*620*1550mm
Voltage: 220V
Power: 2.4KW
Belt width: 165mm
Output: 500-1000Kg/h
Cutting specifications: 1-60mm adjustable

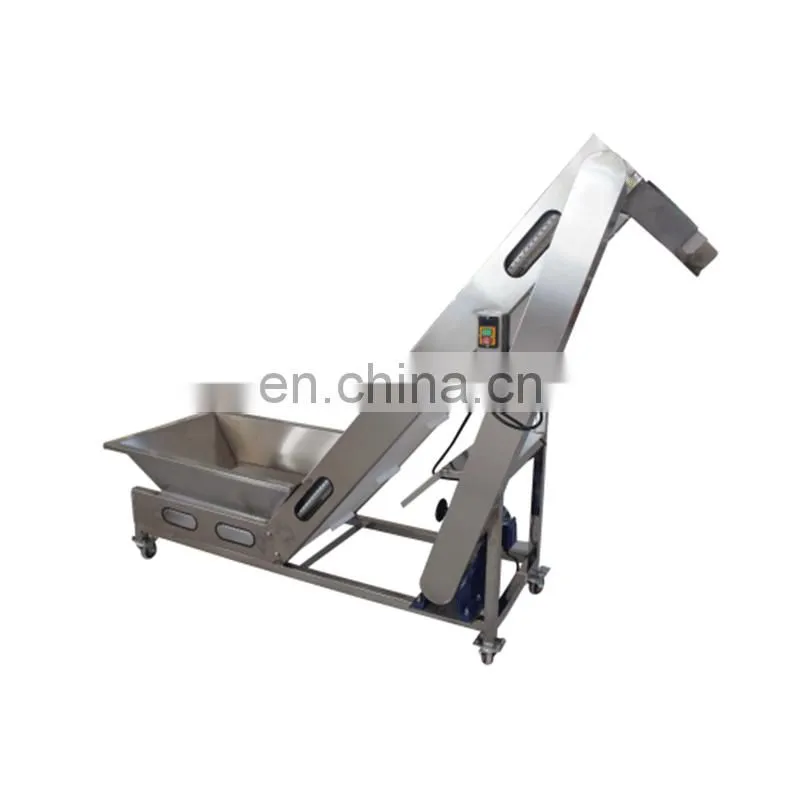

--Lifting conveyor

It is suitable for the lifting and conveying of leafy vegetables and various fruits. Conveyors play the role of conveying and can solve the problem of manual feeding difficulties. In the production line, this equipment is usually used with other equipment with high feeding inlet requirements to meet the needs of production automation, easy to disassemble, and easy to clean.

Product model: ZH-TS1
Product material: 304 stainless steel
Power supply: 380V
Power: 0.75KW
Size: 1800*800*1300mm

--4.2m vegetable washing machine

High-pressure gas is used to generate bubbling, which can be added to the circulating water pump for surfing and lifting high-pressure spray water for triple cleaning. Effectively separate the mud and impurities on the vegetables.
Uses: Suitable for cleaning, removing impurities and conveying materials such as stems and leafy vegetables and Chinese herbal medicines. Suitable for large-scale vegetable processing industry, staff canteens, food distribution centers, etc.

"Model: ZH-QX4200
Product material: 304 stainless steel
Power supply voltage: 380V
Total power: 4.1kw
Dimensions: 4200*850*1350mm
Processing capacity: 500-1000 kg/h
Remarks: standard ozone + circulating water function"

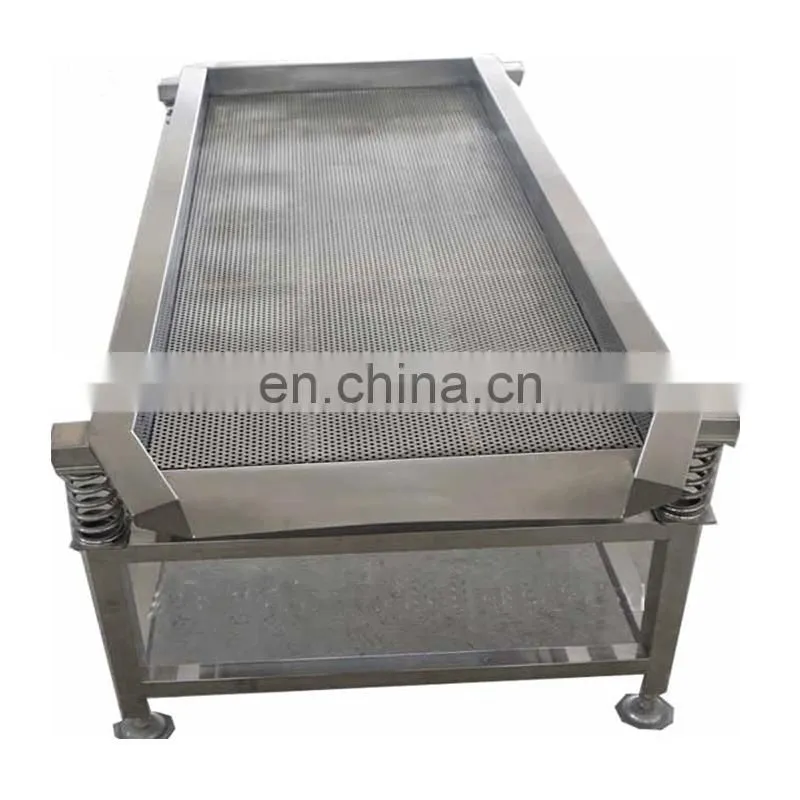

--Vibration drainer It is suitable for air-drying and dehydrating leafy vegetables and various melons and fruits. It is suitable for groups such as clean vegetable processing plants, large food distribution centers, large canteens, etc.
This machine is used to support continuous production with a bubble cleaning machine. The main purpose is to use a vibrating screen to remove a large amount of residual water on the vegetables conveyed by the bubble cleaning machine, so as to achieve a flat and even effect.

"Model: ZH-LS1800
Product material: 304 stainless steel
Voltage: 380V
Power: 0.18kw
Weight: 150KG
Size: 1850*900*900MM"

--Heat pump dryer

Parameters and price list:
Model WSRB-6
Capacity 500kg/batch
Voltage 220V,single phase,60Hz
Number of Trolley 4
Number of Plate 208
maximum power 3kw
Drying temperature 10~80℃
Size of machine 1760*1060*1280mm
Weight 285kg
Suggest drying plant size 5000*3000*2000mm
