N95 Mask Production Line Mask Making Machine
Description

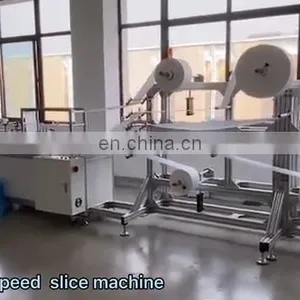

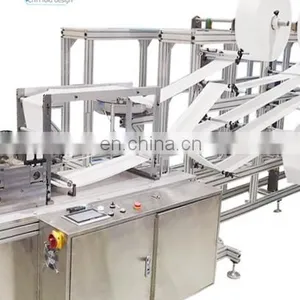

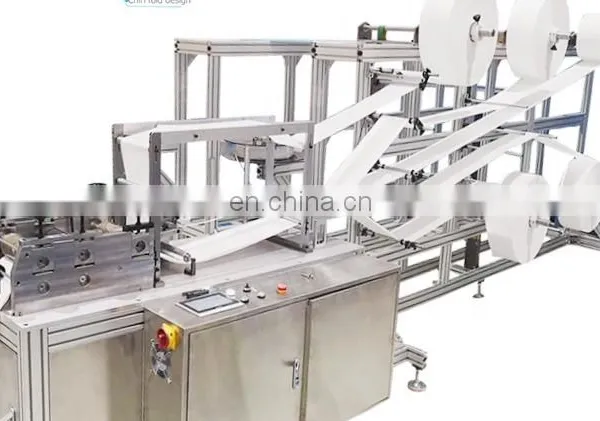

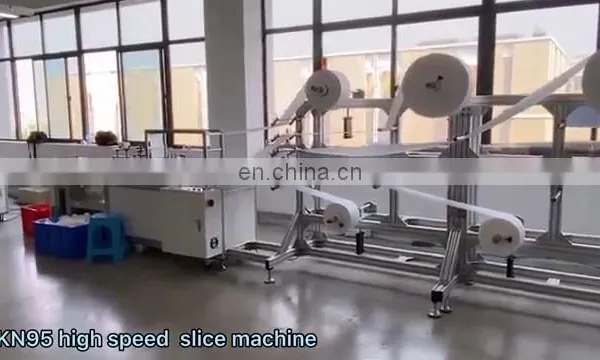

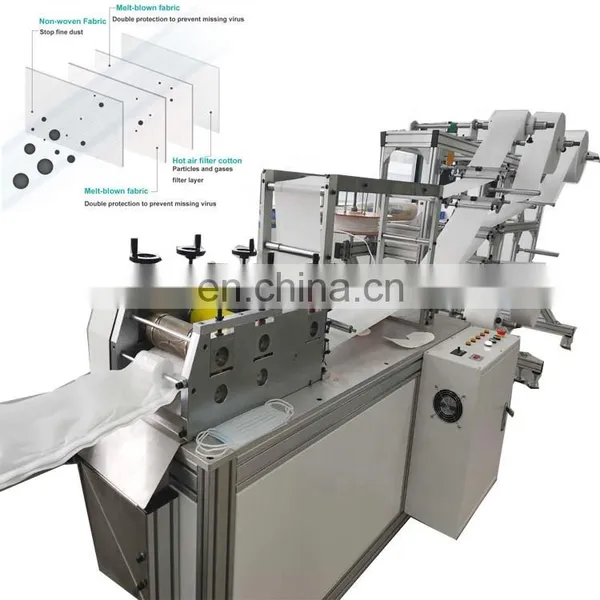

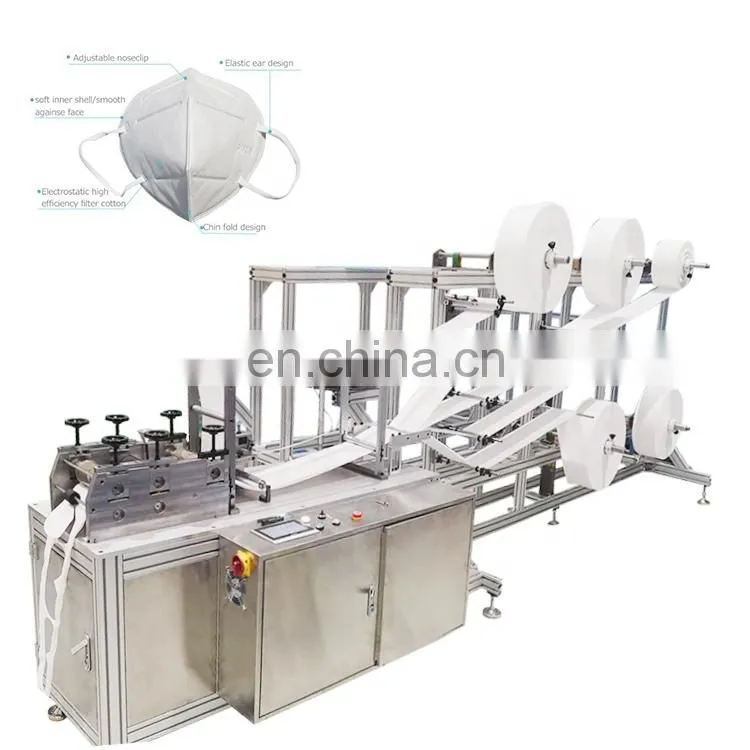

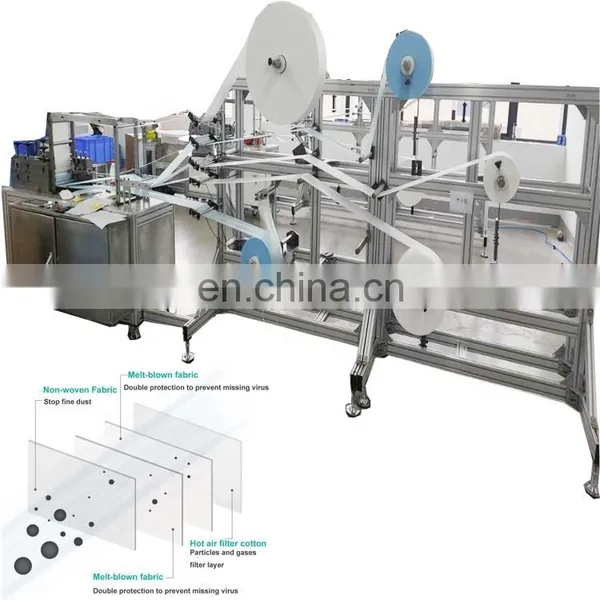

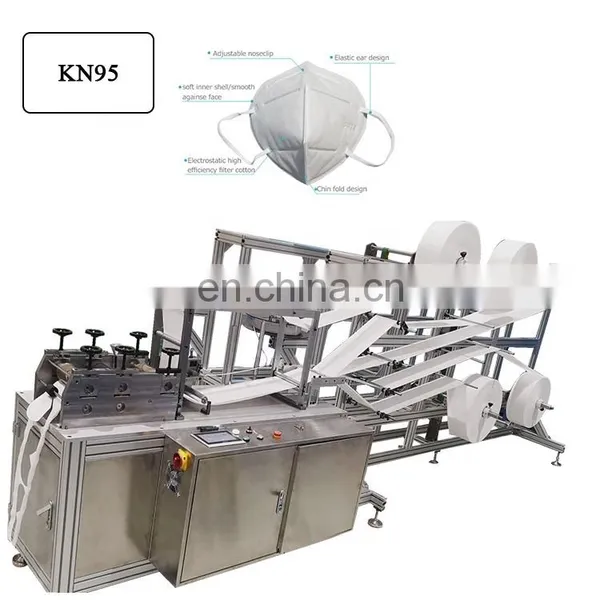

1.KN95 semi-automatic high-speed film machine
The high-speed film machine adopts ultrasonic welding technology to automatically produce 2-5 layers of butterfly mask body (such as 3M company's 9001, 9002 series masks). Automatically complete the operation, manual feeding and automatic feeding; the included processes include coil feeding, nose beam feeding, mask pattern welding, mask cutting, and main body cutting.
The equipment produces the main body of the butterfly mask through the cooperation of the feeding system, the fabric forming system, and the nose beam forming and cutting system. In order to meet the market demand, the mold can be simply replaced to adapt to the production of various types of butterfly mask bodies .
|
Main technical parameters of KN95 high-speed tablet machine |
|
|
Model |
FZY-KN95-MCM |
|
Weight |
About 400KG |
|
Size |
6200mm(L)X1000mm(W)X1600mm(H) |
|
Working power |
220VAC±5%,50HZ |
|
Equipment power |
4KW rated power: about 4KW |
|
Compressed air |
No |
|
Use environment |
Temperature 10-35 ℃, temperature 5-35% HR, no dust (cleanness not less than 100,000) |
|
Productivity |
80-100PCS/min |
|
Nose bridge method |
Built-in nose bridge |

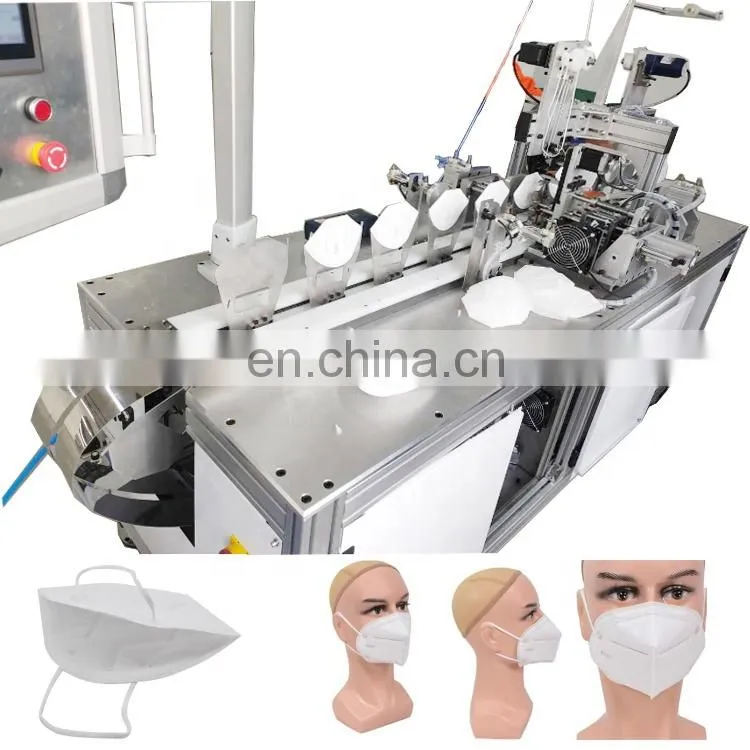

2.KN95 High speed ear belt welding machinery
1.The equipment adopts double-position ultrasonic welding technology, which has high efficiency, high cost performance and high stability.
2.Only one person is needed to operate one device, reducing labor cost.
3.Manual feeding, automatic cutting, automatic welding and automatic blanking are safe and convenient.
4 Automatic welding of butterfly mask lugs can quickly replace positioning fixture to adapt to the production of various types of butterfly masks.
|
Main specification |
|
|
Model |
FZY-KN95-HEBWM |
|
Weight |
500KG |
|
Dimension |
2400mm(L)X800mm(W)X1700mm(H) |
|
Power supply |
220VAC±5%,50HZ |
|
Power |
3KW |
|
Compressed air |
Pressure:0.6Mpa ,Flow rate:200L/min |
|
Working environment |
Temperature10-35℃,Humidity5-35%HR, clean class more than 100,000 grade . |
|
Speed |
25-35PCS/min |

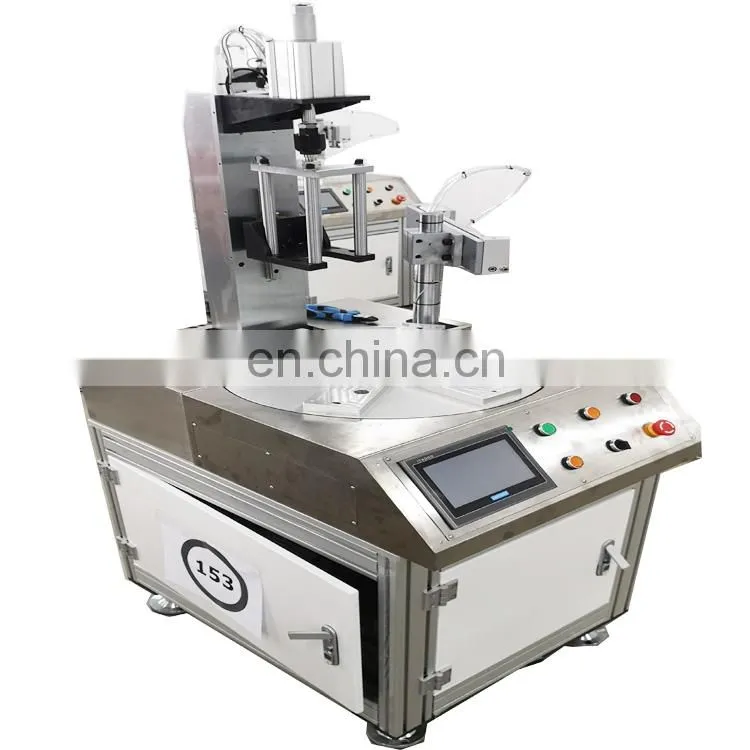

3.KN95 High-Speed Automatic Edge Bonding Machine
1.The equipment adopts 6-position automatic rotating platform, with ultrasonic automatic welding technology and automatic edge sealing of mask.
2.The main process includes manual loading, ultrasonic welding and edge sealing, and automatic unloading.
3.Automatic completion of welding process, convenient operation & high yield rate.
4.It can quickly change the positioning fixture to adapt to the production of various types of butterfly masks .
|
Main Specifications |
|
|
Model |
FZY-KN95-EWM |
|
Weight |
About 100KG |
|
Demension |
1200mm(L)X800mm(W)X1800mm(H) |
|
Working Power |
220VAC±5%,50HZ |
|
Equipment Power |
Rated Power 3.5KW |
|
Compressed Air |
Pressure:0.6Mpa -0.7Mpa |
|
Environment |
Tempreture10-35℃,Humidity5-35%HR,Non dust(Cleanliness greater than class100K) |
|
Capacity |
25-30PCS/min |

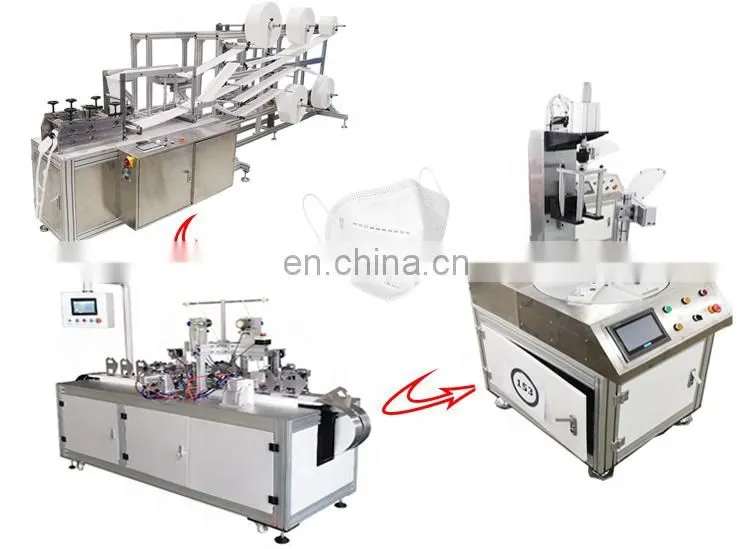

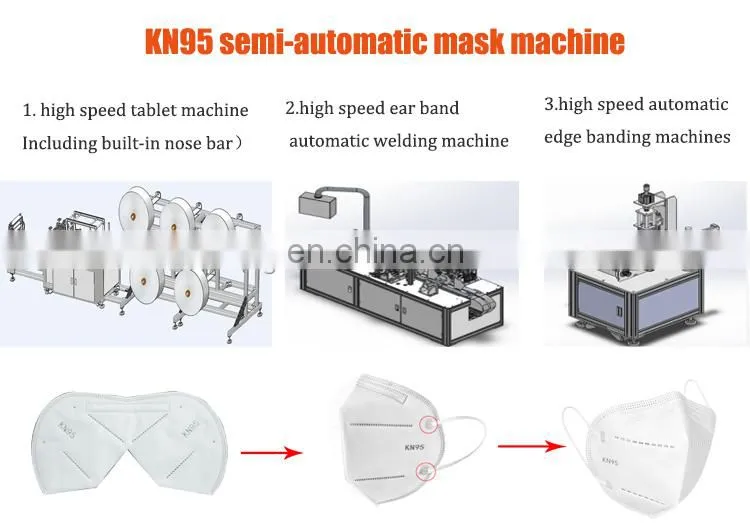

Complete equipment composition
one high speed tablet machine
two high speed ear band automatic welding machine
two high speed automatic edge banding machines
Note: customers can flexibly increase the specific equipment according to their actual production needs.
