Sweet Corn Puff Machine Snack Bar Screw Extruder Puffed Corn Chips Snacks Food Making Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
1990
Annual Export Value:
US$1 Million - US$1.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Performance Snack Productie Puffed Corn Snack Making Machine Cheetos Puffs Process LineNegotiableMOQ: 1 -
Food Extruder Inflating Corn Snack Making Machine Cereal Bar Making Extruder Machine PriceNegotiableMOQ: 1
-
China Manufacturer Corn Extruder Machine Corn Puffs Flavoring Tumbler Making MachineNegotiableMOQ: 1
-
Double Drum Food Flavoring Machine Corn Sticks Puff Snack Food Processing LineNegotiableMOQ: 1
-
Small Scale Cruls Corn Puff Snack Extruder Machine Corn Stick Extruder Food ExtruderNegotiableMOQ: 1
Product Description
The production of puffed food mostly uses corn, wheat, whole wheat, oats, rice and other grains, snow peas, red beans, chickpeas and other beans, as well as potatoes, sweet potatoes, purple potatoes and other potatoes as the main raw materials, and then add a certain proportion Made of seasonings and edible oil. Puffed foods give coarse grains a refined way of eating.The protein-rich plant materials are extruded and expanded in a short time at high temperature, the protein is completely denatured, and the tissue structure becomes porous, which is conducive to contact with human digestive enzymes, thereby improving the utilization and digestibility of protein; products are not easy to produce Retrograde phenomenon. In the process of storage of cereals, retrogradation is a common problem. Due to retrogradation, the taste of the product becomes rough and the digestibility is greatly reduced.

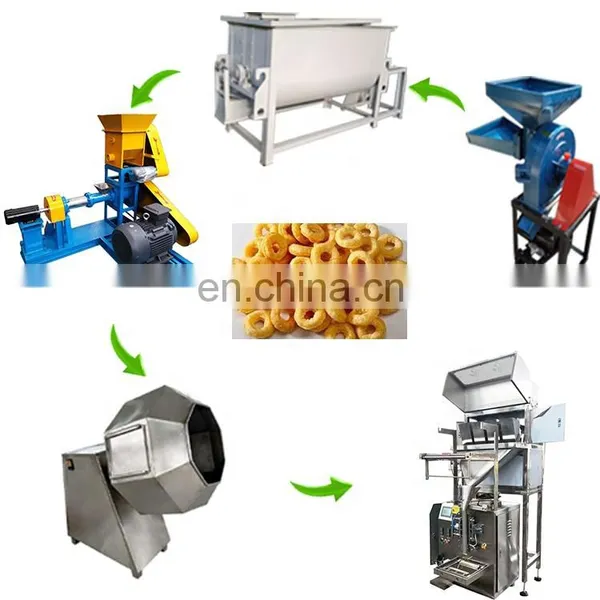

Working Process
一、Mini model grinder machine
1.The all purpose home mini flour making machine is mainly for independent use, but can also be used in small flour mill plant.The grains that can be processed are oat, almond, potato, yam, chili, pepper, sorghum, cassava, bean, maize etc. It is widely used and easy operating. Even can be used for rice, electric wheat flour mill milling machine. It is a basic, but high efficient equipment. It is compact in structure. It has the advantage of low energy-consumption, low noise, good performance and high efficiency.
Model |
Power |
Output (kg/h) |
Weight (kg) |
||
GMEC-160 |
1.5kw /220v,50hz |
4HP |
50-200 kg/h |
40 kg |
|
GMEC-200 |
2.2kw /220v,50hz |
5HP |
150-360 kg/h |
60 kg |
|
GMEC-280 |
3kw /220v,50hz |
6hp |
250-500kgh |
80kg |
|
GMEC-300 |
4kw /380v,50hz |
8HP |
350-800 kg/h |
188 kg |
|
GMEC-320 |
7.5kw /380v,50hz |
12HP |
450-1200kgh |
210kg |
|
GMEC-360 |
11kw /380v,50hz |
15HP |
400-1800 kg/h |
280 kg |
|
GMEC-500 |
22kw /380V,50hz |
30HP |
1000-3000 kg/h |
720 kg |
|
GMEC-600 |
30kw /380v,50hz |
1100-3200 kg/h |
800 kg |
||
GMEC-800 |
55kw /380v,50hz |
2000-8000 kg/h |
1200 kg |
||

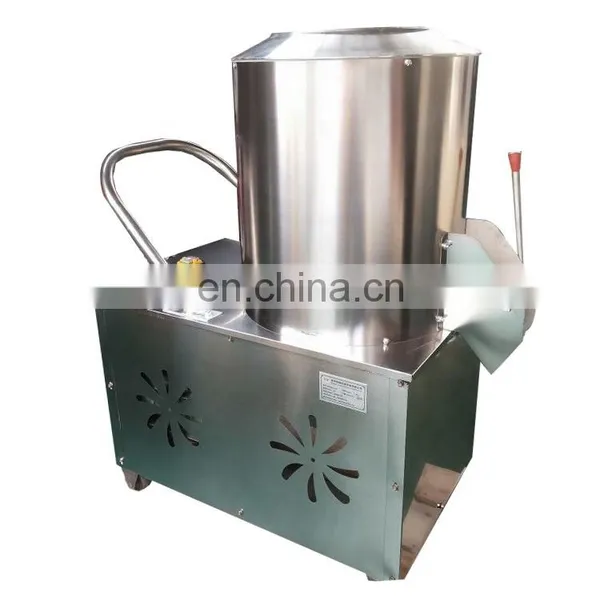

二、 Mixer
Working principle: for the mixing of raw material, making every kind of raw material and water mixed together. The whole machine is made of stainless steel. High efficiency, easy operation！
Working principle: for the mixing of raw material, making every kind of raw material and water mixed together. The whole machine is made of stainless steel. High efficiency, easy operation！
Model |
Capacity |
Motor |
Weight |
Dimension |
WSX-15（SS） |
15 kg/8min |
1.5 kw |
70 kg |
950*400*940mm |
WSX-25（SS） |
25 kg/8min |
2.2 kw |
85 kg |
800*650*1200mm |
WSX-80（Carton steel) |
80 kg/8min |
4 kw |
130 kg |
900*850*1200mm |
WSX-350(Carton steel) |
350 kg/8min |
5.5 kw |
490 kg |
1200*1100*1400mm |
三、Snack Extruder
1.Using the unequal-distance non-standard screw system of the extruder, the gas in the material is discharged and quickly filled with the material.
2.The material is backflowed by the shearing force, which increases the pressure in the chamber. The friction between the pile and the chamber makes the materials fully mixed, squeezed, heated, glued, and gelatinized to produce organizational changes. The original structure is destroyed. 3.At the same time, the mechanical energy is converted into heat energy through the friction of the materials in the chamber, so that The material becomes a gel state with flowing properties.
4.When the material is squeezed to the outlet, the pressure changes from high pressure to normal pressure instantaneously, and from high temperature to normal temperature instantaneously, causing water to quickly evaporate from the tissue structure, causing countless microstructures to form inside. 5.The hole structure is then cut and cooled by a cutting device to expand and shape.
4.When the material is squeezed to the outlet, the pressure changes from high pressure to normal pressure instantaneously, and from high temperature to normal temperature instantaneously, causing water to quickly evaporate from the tissue structure, causing countless microstructures to form inside. 5.The hole structure is then cut and cooled by a cutting device to expand and shape.
Model |
WSSH-40 |
WSSH-50 |
WSSH-60 |
WSSH-70 |
Motor power |
5.5kw |
11kw |
15kw |
18.5kw |
Output |
30-40kg/hour |
60-100kg/h |
110-120kg/h |
180-200kg/h |
Rotated speed |
500-600rp/min |
500-600rp/min |
440-550r/min |
440-550r/min |
Weight |
220kg |
280kg |
300kg |
420kg |
Size |
1100*1080*1250mm |
1150*1100*1250mm |
1180*1120*1250mm |
1500*1400*1250mm |

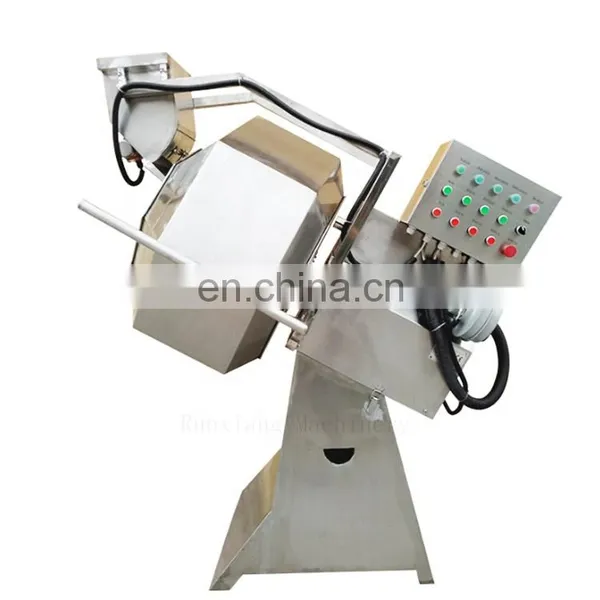

四、Seasoning Machine
Star anise seasoning machine food mixing barrel: It is a special purpose for mixing the late seasoning powder of food or powder coating and blending of raw materials. The structure is simple and practical. The barrel is a stainless steel octagonal equipment, which avoids the ball mixing barrel. The disadvantage of not turning the raw materials and uneven mixing can make the food materials to be processed and the required seasonings be fully mixed in a relatively short period of time. It is mainly suitable for powdering and mixing lumps, flakes and granular foods in the food production process.
Star anise seasoning machine food mixing barrel: It is a special purpose for mixing the late seasoning powder of food or powder coating and blending of raw materials. The structure is simple and practical. The barrel is a stainless steel octagonal equipment, which avoids the ball mixing barrel. The disadvantage of not turning the raw materials and uneven mixing can make the food materials to be processed and the required seasonings be fully mixed in a relatively short period of time. It is mainly suitable for powdering and mixing lumps, flakes and granular foods in the food production process.
Model |
Power(KW) |
Voltage |
Capacity(kg/h) |
Weight(kg) |
sizw(mm) |
||||||
RX-700 |
0.75KW |
220/380V |
200 |
70 |
1100*670*1450 |
||||||
RX-800 |
1.1KW |
220/380V |
300 |
90 |
1200*770*1550 |
||||||
RX-1000 |
1.5KW |
220/380V |
400 |
120 |
1500*920*1700 |
||||||
五、Packing Machine
This machine is intelligent weighing and automatic quantitative packing machine, with four scales and microcomputer control. This machine is used to pack granule material (such as sugar, salt,nut,spice, rice, tea granule,potato chips,snacks,bean,peanut,date,coffee , etc.)
This machine is intelligent weighing and automatic quantitative packing machine, with four scales and microcomputer control. This machine is used to pack granule material (such as sugar, salt,nut,spice, rice, tea granule,potato chips,snacks,bean,peanut,date,coffee , etc.)

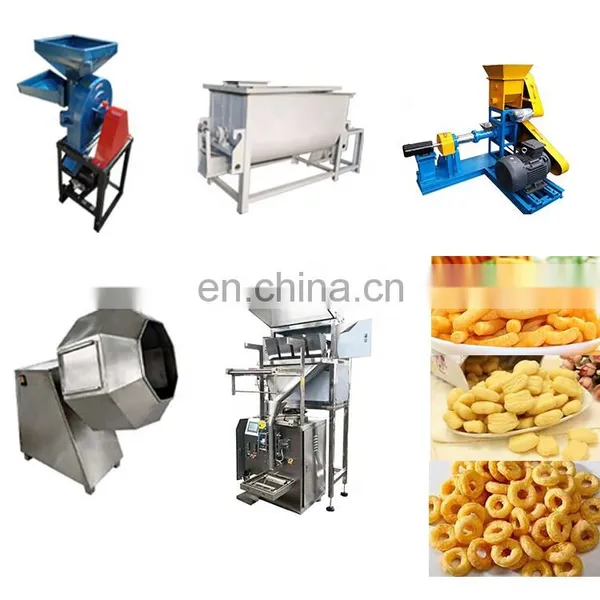

Product display
