Good performance Macadamia Nuts Fruits Snack Bars Peanut Chikki Making Machines

Name: Good performance Macadamia Nuts Fruits Snack Bars Peanut Chikki Making Machines
Price: Negotiable

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Description

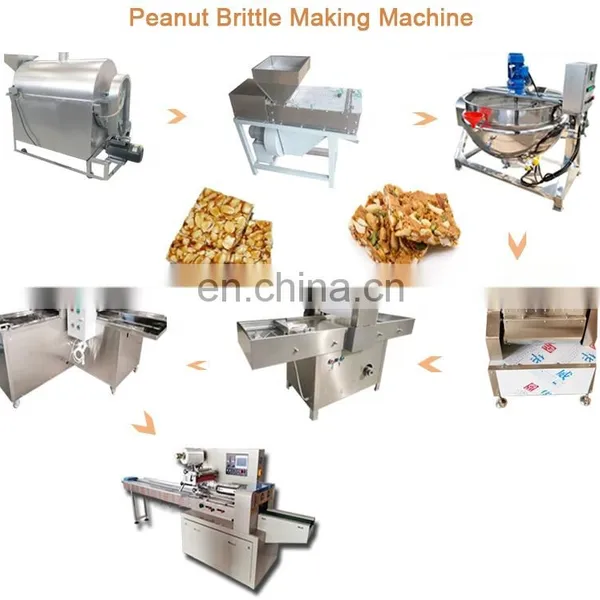

The peanut brittle production line needs six machines, which are baking machine, peanut peeling machine, sugar boiling machine, mixer, roller molding machine, cutter machine and pillow packing machine.You can make delicious peanut cakes, millet cakes, sesame chips and so on. Complete set of production equipment is equipped with frequency conversion speed regulation control, reasonable structure, simple operation, easy maintenance, with the advantages of good block forming, adjustable length, large production, etc., is the ideal equipment for food manufacturers to produce peanut sugar, rice flower sugar, sesame sugar.

Working Process

1.The main control circuit adopts imported single chip microcomputer, human-machine interface, frequency conversion control,convenient and quick parameter setting, centralized and intuitive operation, and fully realizes humanized automatic operation control;
2.High sensitive electronic eye automatic and accurate tracking, accurate feedback information, minimal error;
3.Stable operation, automatic shaping, automatic conveying and automatic cutting of materials;
4.Simple operation and low labor intensity;Continuous production with high output;
5.The mechanical transmission system has compact structure and reasonable layout;

The circuit is clear and clear without direct maintenance.

Peanut sugar making process:
Roasting→ boil sugar → mixing → flating → cutting → cooling → packaging. Rice candy production process:
Puffing → boil sugar → mixing → flating → cutting → cooling → packaging.
Sesame sugar production process:
Cleaning and peeling → boil sugar → mixing → flating → cutting → cooling → packaging.

1.Peanut roast machine

It is very convenient for roasted seeds and nuts to get in and out of the pot. You only need to press the forward and reverse
switch, and the motor drives the drum to reverse, and the roasted seeds and pebbles will come out of the pot together and separate
automatically.

2.Peanut peeling machine

This machine adopts the method of roller differential speed rolling to peel the peanuts. It has the advantages of stable and reliable performance, long service life, good peeling effect, high productivity and good quality.

3.Jacketed pot

The equipment is used for open concentration, mainly for decocting and concentration of liquids in industries of pharmaceutical
industry, food industry, chemical industry and light industry etc. Contact area of the equipment with materials is made of
stainless steel SUS304,which has perfect corrosion-proof performance

4.Mixing tank

The mixing tank is double layer, has the function of temperature keeping
It can mix rice,sugar,nuts different material together .match with cereal bar machine, high efficiency and high capacity

Mixer is suitable for mixing Rice Candy, Crispy Egg Cake, Crispy Corn Cake, Melon Seed Cake and Black Rice Cake.

5.Compactor machine

The product surface is flat, the density is moderate, and the thickness is uniform. It is truly automated and intelligent; the machine adopts frequency conversion technology

6.Compactor machine

The conveyor belt speed can be adjusted About the same width product,can adjust length and thickness. About the other width
product,just change the knife shaft.

This machine is very easy to control and operate.
Occupy small space, convenient to move different place.
Many kinds of fuel can be used, such as, coal, gas, electricity, etc.

7.Pillow packing machine

Suitable for biscuits, packaging of all kinds of objects with regular solid state, such ,as bread ,speed wheaten food, moon ,cake
,candy ,medicines, dailynecessities, five metalspart, paper carton or the tray , etc.

Simple transmission system, more reliable work and more convenient maintenance.

Specification

Peanut Brittle Production Line
No.	Name	Capacity	Power	Dimension
1	Peanut Roaster	60-80Kg/h	1.1KW	200013001600mm
2	Peanut Peeler	80-150Kg/h	1.5KW	12005001200mm
3	Sugar Melting Pot	100L	3KW	154011151050mm
4	Peanut Brittle Flatting and Forming Machine	50-100Kg/h	1.5KW	188011201160mm
5	Peanut Brittle Cutting Machine	50-100Kg/h	1.1KW	32006001000mm

Product Feature

This machine is mainly used for the molding of snack foods such as peanut candy, peanut crisps, chima crisps, etc. It has continuous feeding pre-compression and automatic molding by multi-roll rollers. The product surface is flat, the density is moderate, and the thickness is uniform. It is truly automated and intelligent; the machine adopts frequency conversion technology, and each action is controlled by PLC to coordinate and accurately. Adjust the speed and thickness for different products and processes to achieve excellent product molding results.

Final product

Frequency conversion, put material, leveling, cutting by one molding.
With multiple leveling structure, pressing flat, thickness uniformity.
Cutting size can be adjusted, to meet your needs of different products.
Automatic cutting, saving time and labor, more economic and convenient.

Product display

Packing & Delivery

wooden case packing
