Ginger Grape Gas Food Drying Dehydrator Machine
This is hot air food dehydrators for sale, suitable for drying or dehydrating, dewatering
- Food processing industry
- Fruit and vegetable processing industry,
- Agricultural farming and sideline industry,
- Seafood processing industry,
- Medicinal pharmaceutical industry,
- Chemical industry, aquatic product, light industries, heavy industries and other industries.
Raw material can be: powder, particle, crude drug, herbal medicine of Chinese traditional medicine,plaster, drinking agent, pill, packing bottle, pigment, dyestuff, de-watering vegetable, dried fruit slices, sausage, plastic, resin, electric component, baking varnish and etc.
|

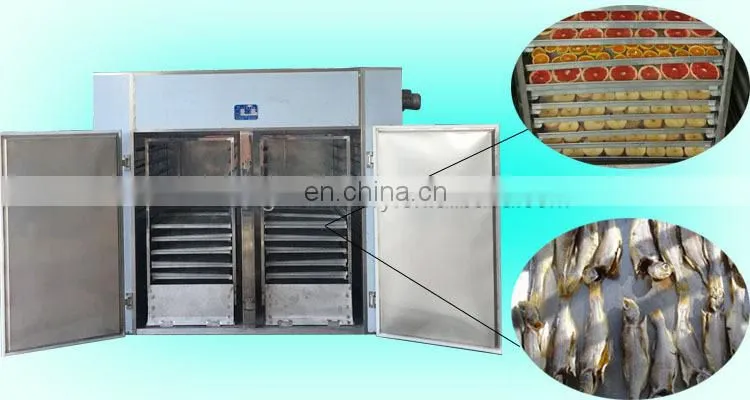

Dried fruits like: apple, lemon, berry, banana, plantain chips, kiwi, figs, pear, peach, pineapple, mango, jujube, plums. Dried vegetables like: mushroom, pepper, carrot, cabbage, red chilli, onion, tomato, potato, sweet potato, garlic, ginger, etc. Dried nuts and seafood like: cashew nuts, walnuts, peanuts, sea cucumber, fish, sardines, shrimp, etc. |
Working principle of this Ginger Grape Gas Food Drying Dehydrator Machine
It adopts noise elimination and thermal stable axial flow fan and automatic temperature control system. The entire circulation system is fully enclosed to make the drying efficiency of the tray dryer increase from 3-7% of the traditional tray dryer to 35-45%, the highest heat efficiency can be up to 50%.
Specification for Ginger Grape Gas Food Drying Dehydrator Machine
| Model | Number of Trolley |
Number of Plate |
Motor | Area of the plates | Productivity (fresh) |
Dimension (m) |
| WSHG-1 | 1 | 24 | 9kw | 5.76m² | 50kg/batch | 1.55*0.8*2.2 |
| WSHG-2 | 2 | 48 | 15kw | 11.52m² | 100kg/batch | 2.1*1.1*2.3 |
| WSHG-4 | 4 | 96 | 30kw | 23.04m² | 200kg/batch | 2.1*2*2.3 |
| WSHG-6 | 6 | 144 | 45kw | 34.56m² | 300kg/batch | 2.6*2.1*2.3 |
| WSHG-8 | 8 | 192 | 60kw | 46.08m² | 400kg/batch | 4.2*2.3*2.62 |
This Ginger Grape Gas Food Drying Dehydrator Machine has two types
- Made of carbon steel outside and stainless steel inside
- Made of stainless steel both outside and inside.

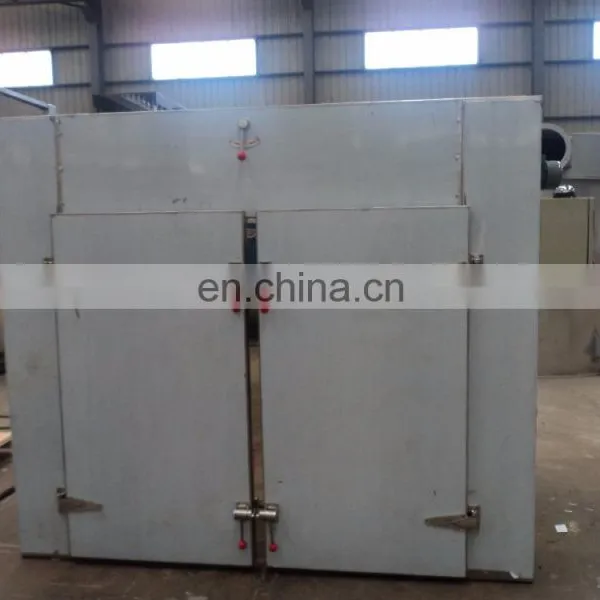

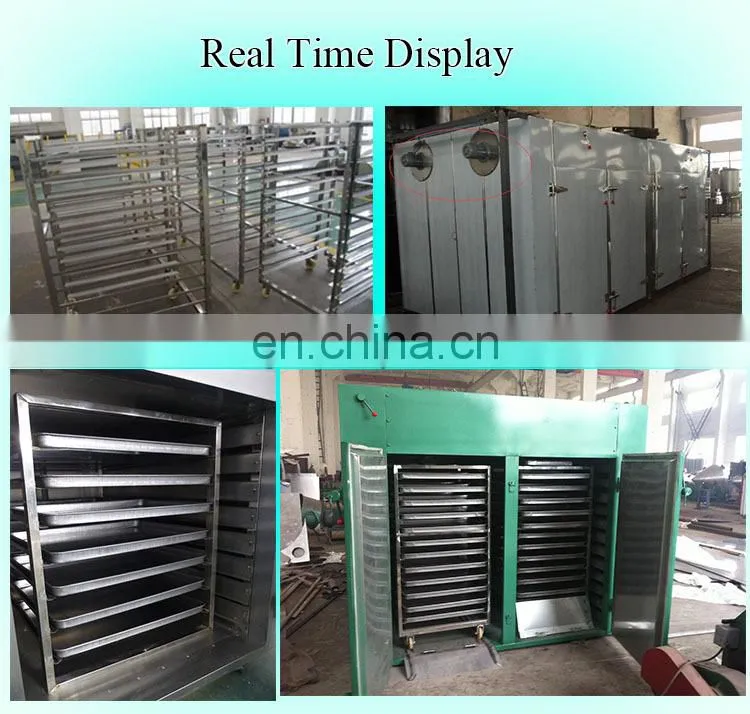

The picture above is made of stainless steel, with protective film outside.

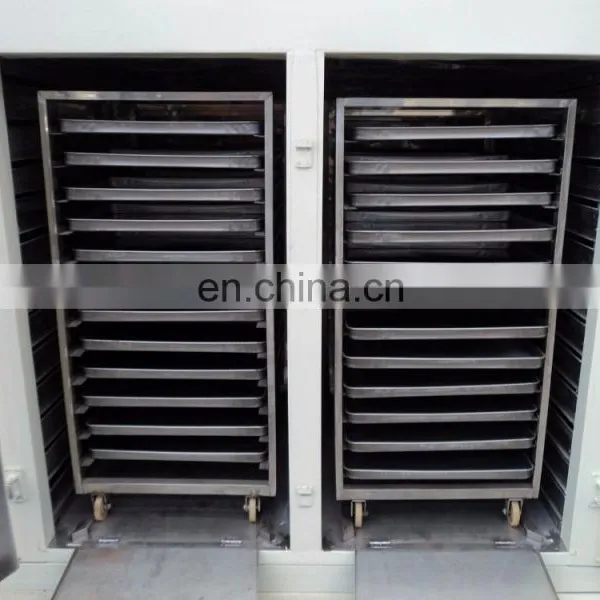

- The mobile trolleys and trays are all made of stainless steel.

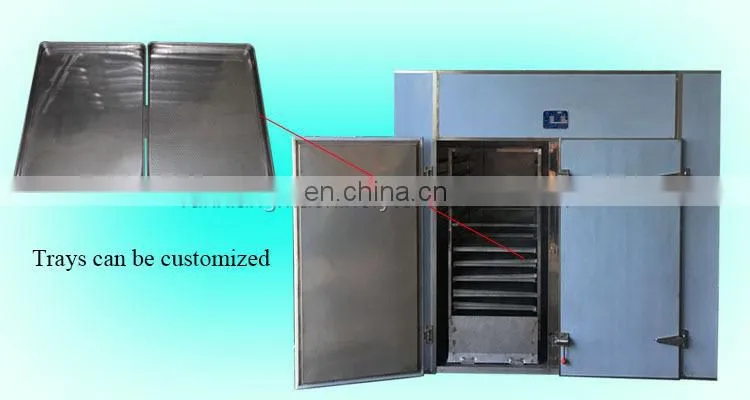

- There are holes on the trays to increase the hot air contact area, thus improving the drying efficiency.
- There are temperature controller for customer to set drying temperature. All the instructions are marked clearly on the controller.
Drying time of this Ginger Grape Gas Food Drying Dehydrator Machine
- It will vary by different materials, moisture content, sugar content, local climate, etc.
- Fruits can be dried whole, or as slices, such as mango, papaya, kiwi, etc. Alternatively they can be chopped after drying, made into pastes, or concentrated juices.
- Dried fruit is widely used by the confectionery, baking and sweets industries.
- Food manufacturing plants use dried fruit in various sauces, soups, marinades, puddings, etc.
Zhengzhou Runxiang Machinery Equipment Co.,Ltd, mainly engaged in a wide range of machinery and equipment business, especially in the food machinery, animal feed processing machinery, coal mining machinery, and packaging machinery.
Our company has always been adhering to the "Quality first, service first, develop together with customers" purpose. We have passed SGS, ISO,CE, etc. Runxiang Machinery pursues the :principle, responsibility, sincerity, cooperation, fairness, forward-looking" values, wholeheartedly look forward to your cooperation!
1. This fish drying equipment will be packaged by standard wooden case
2. It will be delivered within 15-20 days after receiving the deposit.
1. What is the heat source available?
| Heat source: electricity, steam, gas, steam+electricity |
2. The temperature range can be set?
| Operation temperature: The steam heating temperature is from50℃ -150℃. Electricity heating temperature is from 50℃-350℃. Customer should steam boiler or furnace if choose steam heating or gas heating. |
3. Can the voltage be customized based on clients' need?
| Voltage can be customized. So please kindly confirm _phase, _V, _Hz when send inquiry. |
If any interests or needs about our fish drying equipment, please feel free to send inquiry below:
| Contact info: | Grace grace(at) grace(at) Mobile/WhatsApp:0086 17737312676 Skype:grace(at) Address: 1:No 99th,guoji road,jinshui zone,zhengzhou city. 2:No. 177, Unit 2, Bldg. 3, No. 10, Yulan St., High-Tech Industrial Development Zone,Zhengzhou city,Henan province,China Website: Website: |
