Industrial hot air dried mango fruit vegetable used gas food dehydrator

Industrial hot air dried mango fruit vegetable used gas food dehydrator

This is hot air small gas food dehydrator, which adopts noise elimination and thermal stable axial flow fan and automatic temperature control system. The entire circulation system is fully enclosed to make the drying efficiency of the tray dryer increase from 3-7% of the traditional tray dryer to 35-45%, the highest heat efficiency can be up to 50%.

Specification of all models small fruit drying machine

• This small fruit drying machine is suitable for material and product hot solidification and dry or dehydrating dewatering in the food processing industry, fruit and vegetable processing industry, agricultural farming and sideline industry, seafood processing industry, medicinal pharmaceutical industry, chemical industry, aquatic product, light industries, heavy industries and other industries.
• The raw material can be: powder, particle, crude drug, herbal medicine of Chinese traditional medicine,plaster, drinking agent, pill, packing bottle, pigment, dyestuff, de-watering vegetable, dried fruit slices, sausage, plastic, resin, electric component, baking varnish and etc.

Dried fruits: apple, lemon, berry, banana, plantain chips, kiwi, figs, pear, peach, pineapple, mango, jujube, plums.

Dried vegetable:mushroom, pepper, carrot, cabbage, red chilli, onion, tomato, potato, sweet potato, garlic, ginger, etc.

Dried nuts:cashew nuts, walnuts, peanuts, etc.

Dried seafood:sea cucumber, fish, sardines, shrimp, etc.

Dried beans: Cocoa beans, black beans, red beans, peas, etc.

There are two types of 50kg gas food dehydrator

• Carbon steel outside and 304 stainless steel inside drying oven machine

• Fully stainless steel both outside and inside drying oven machine

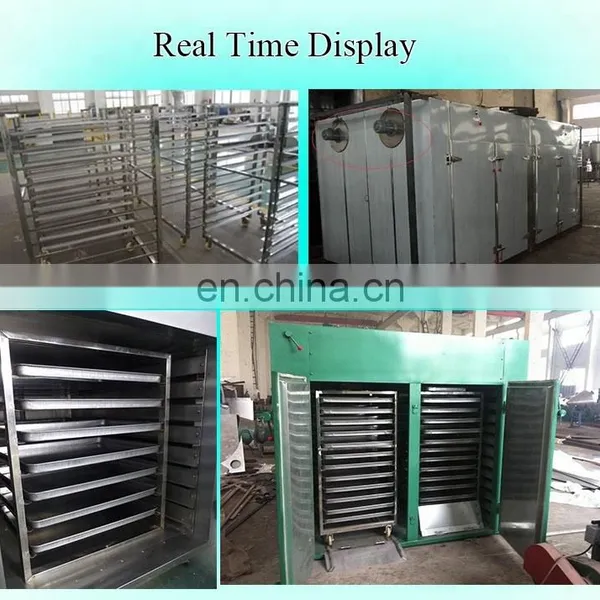

Below are the stainless steel trolley and trays inside the machine

• There are wheels on the bottom of the trolleys so that people can move it in and out easily.

• There are wholes on the trays to increase the hot air contact area. We can customize different trays based on customers' need.

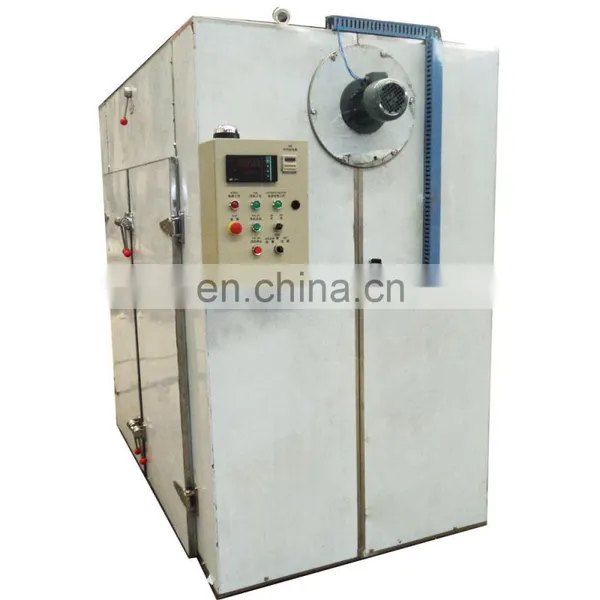

Temperature controller and axial flow fan

• Customers can set the drying temperature according to different materials' requirement. All the instructions are marked clearly in the controller.

1. What is the heat source available?

Heat source: electricity, steam, gas, steam+electricity

2. The temperature range can be set?

Operation temperature: The steam heating temperature is from50℃ -150℃. Electricity heating temperature is from 50℃-350℃. Customer should steam boiler or furnace if choose steam heating or gas heating.

3. Can the voltage be customized based on clients' need?

Voltage can be customized. So please kindly confirm _phase, _V, _Hz when send inquiry.

√ If you need other models of gas food dehydrator, please click the following pictures to get more related information

100/batch dryer	200 kg/batch dryer	300kg/batch dryer	400kg/batch dryer

The drying time of this gas food dehydrator will vary by different materials, moisture content, sugar content, local climate, etc.

1. Fruits can be dried whole, or as slices, such as mango, papaya, kiwi, etc. Alternatively they can be chopped after drying, made into pastes, or concentrated juices.

2. Dried fruit is widely used by the confectionery, baking and sweets industries.

3. Food manufacturing plants use dried fruit in various sauces, soups, marinades, puddings, etc.

1. This gas food dehydrator will be packaged by standard wooden case

2. It will be delivered within 15 days after receiving the deposit.
