Precast Concrete Connection Full Grout Fill Sleeve Rebar Coupler Metal Building Materials

Precast Concrete Connection Full Grout Fill Sleeve Rebar Coupler Metal Building Materials thumbnail-1
Precast Concrete Connection Full Grout Fill Sleeve Rebar Coupler Metal Building Materials thumbnail-2
Precast Concrete Connection Full Grout Fill Sleeve Rebar Coupler Metal Building Materials thumbnail-3
Precast Concrete Connection Full Grout Fill Sleeve Rebar Coupler Metal Building Materials thumbnail-4
Precast Concrete Connection Full Grout Fill Sleeve Rebar Coupler Metal Building Materials thumbnail-5
Precast Concrete Connection Full Grout Fill Sleeve Rebar Coupler Metal Building Materials photo-1
Precast Concrete Connection Full Grout Fill Sleeve Rebar Coupler Metal Building Materials photo-2
Precast Concrete Connection Full Grout Fill Sleeve Rebar Coupler Metal Building Materials photo-3
Precast Concrete Connection Full Grout Fill Sleeve Rebar Coupler Metal Building Materials photo-4
Precast Concrete Connection Full Grout Fill Sleeve Rebar Coupler Metal Building Materials photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
2004
Annual Export Value:
Below US$1 Million
Contact Supplier Request Quote Chat Now
Chongqing Grace Trading Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Product Description

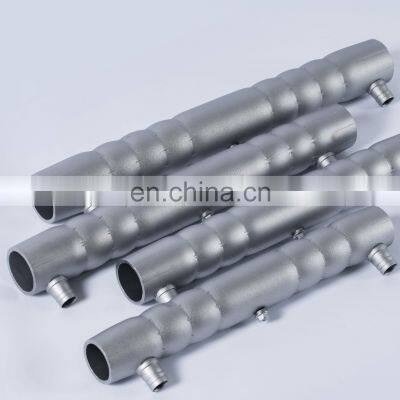

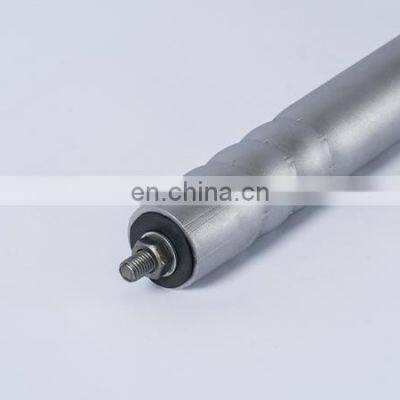

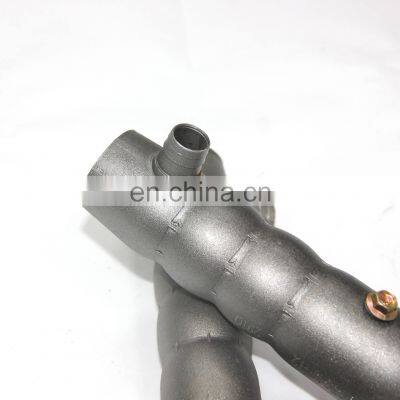

Full Grout Rebar Coupler
Product name
Precast Concrete Connection Grout Fill Sleeve Rebar Coupler Metal Building Materials
Project Solution Capability
Total solution for projects
Fit For Rebar Diameter
Φ12mm-40mm
Market
South&north America/Europe/ Asia/ Australia/Africa and etc.
Application
metal frame, profiled bar, wall mounting, sole plate, bracket, machines, beam, angle iron, track etc
Trade Term
FOB/CIF/CFR/CNF/EXW/DDU/DDP
Our advantage
One-stop shopping; High quality; Competitive price; Timely delivery; Technical support;
Customized
OEM/ ODM
Parameters Of Full Grouting Sleeve For Steel Bar Connection-Building Specification（mm）
Grout Sleeve Model
Bar Diameter
Outer Diameter
Inner Diameter
Length
Grout Hole Center Position
The Hole Location Of The Outflow Slurry
On-site Construction Reinforcement Insertion Depth
Factory Installed Rebar Insertion Depth
GTQ4J-12
Φ12
39
28
245
28
220
96-116
96-116
GTJQ4-14
Φ14
41
30
275
30
245
112-132
112-132
GTJQ4-16
Φ16
43
32
310
35
280
128-148
128-148
GTJQ4-18
Φ18
46
35
340
35
310
144-164
144-164
GTJQ4-20
Φ20
48
37
370
40
340
160-180
160-180
GTJQ4-22
Φ22
50
39
405
40
375
176-196
176-196
GTJQ4-25
Φ25
52
39
450
40
420
200-220
200-220
GTJQ4-28
Φ28
61
48
500
40
460
224-244
224-244
GTJQ4-32
Φ32
66
50
565
40
525
256-278
256-278
GTJQ4-36
Φ36
78
60
630
40
590
288-308
288-308
GTJQ4-40
Φ40
89
70
700
40
660
320-340
320-340
Note: 1. The bottom dimension in the table is the value of the sleeve raw material that meets the mechanical performance
requirements of No. 45 steel in GB/T699-2015 (the measured yield strength and ultimate strength should not be less than J355-2015
Rebar Sleeve Grouting Connection Application Technology The standard specified in the regulations), the minimum size that can be
selected when the sleeve manufacturer has a good level of quality control. 2. The minimum size of the measured sleeve should be
measured in at least two directions, and the minimum value should be used for judgment. 3. The customer's special customized
sleeve must meet the mechanical performance parameters (strength requirements) of the sleeve as a premise, and the size can be
flexibly controlled.
Parameters of fully grouted sleeve for reinforcement connection - bridge connection（mm）
Grout Sleeve Model
Bar Diameter
Outer Diameter
Inner Diameter
Length
Grout Hole Center Position
The Hole Location Of The Outflow Slurry
On-site Construction Reinforcement Insertion Depth
Factory Installed Rebar Insertion Depth
GTQ4J~16
Φ16
42
32
328
30
305
128-148
128-148
GTQ4J~18
Φ18
46
36
355
35
325
144-164
144-164
GTQ4J~20
Φ20
55
44
408
40
378
160-180
160-180
GTQ4J~22
Φ22
57
46
420
40
390
176-196
176-196
GTQ4J~25
Φ25
60
48
510
40
480
225-250
225-250
GTQ4J~28
Φ28
64
51
570
40
540
252-280
252-280
GTQ4J~32
Φ32
70
55
650
100
620
207-320
207-320
GTQ4J~36
Φ36
78
60
730
110
700
324-360
324-360
GTQ4J~40
Φ40
89
70
810
120
780
360-400
360-400
Application
Specification
item
value
Warranty
1 Year
After-sale Service
Online technical support
Chemical Composition
Steel
Alloy Or Not
Is Alloy
Secondary Or Not
Non-secondary
Project Solution Capability
total solution for projects
Application
Apartment
Design Style
Industrial
Place of Origin
Chongqing, China
Brand Name
Grace
Model Number
Full Grouting Sleeves
Product name
Full Grouting Sleeves
Material
Quality Carbon Structure Steels 45
Color
Silvery
Shape
Strip
Size
12-40mm
MOQ
1000PCS
Packing & Delivery
cartons,normal wooden cases,normal wooden plate or according to your requests; Customized Wholesale Building Materials 12-50mm Parallel Thread Rebar Connection
