Help CenterChina Professional LH-1209 High Throughput Liquid Handler
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
2014
Annual Export Value:
Above US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Smart Liquid Handling System Automatic 96-384NegotiableMOQ: 1 -
96 Well Pipetting System Liquid Handling SystemNegotiableMOQ: 1
-
Automatic Pipetting Automated System Liquid HandlingNegotiableMOQ: 1
-
Automated Pipetting System Liquid Handling RobotNegotiableMOQ: 1
-
Pipetting System Automated Liquid Handler Liquid Handling Robot PipettingNegotiableMOQ: 1
Product Description
Width x Depth x Height (cm) | 110 ×75×88 | ||
Weight (kg) | about 200 | ||
Deck Capacity | 25 | ||
Power supply | AC220V，50Hz，650W | ||
Sample throughput | 96-192 | ||
Pipetting Head | 96-channel | ||
Volume range | 2μL -180μL | ||
Pipetting Tips | 250μL | ||
Temp Conditioner | 4-75℃ | ||
Shaker | 100-2000 rpm | ||
Pipetting Accuracy ≤（%） | 10μL | 3.0% | |
50μL | 1.0% | ||
150μL | 0.5% | ||
Pipetting precision ±（%） | 10μL | 6.0% | |
50μL | 2.0% | ||
150μL | 1.5% | ||
<<< CLICK HERE TO VIEW MORE PRODUCTS NOW
AMTK® LH-1209 is an automatic liquid handler used for nucleic acid extraction and purification based on magnetic bead. It has features of high throughput, high accuracy, high integration, low cost and high compatibility. The system is mainly composed of 96-channel pipetting head, magnetic bead separator, cooler & heater, shaker and control software. It can be widely used in third-party medical laboratories, blood stations, hospitals, Centers for Disease Control (CDC) , research institutes and other fields.
Advantages
Precise and reliable pipetting
√Three-dimensional mechanical arm, the accuracy of positioning is 0.1 mm
√The system has a wide range of suction and dispense rate
√According to different liquid viscosity, Liquid Class value can be adjusted to achieve accurate suction and dispense volume
√Software built-in various suction and dispense method to meet various application
√Excellent pipetting precision ,1 µL CV ≤ 5%
In-depth understanding of customer needs to solve their problems
√We establish the professional application team and perfect service system for our customers.

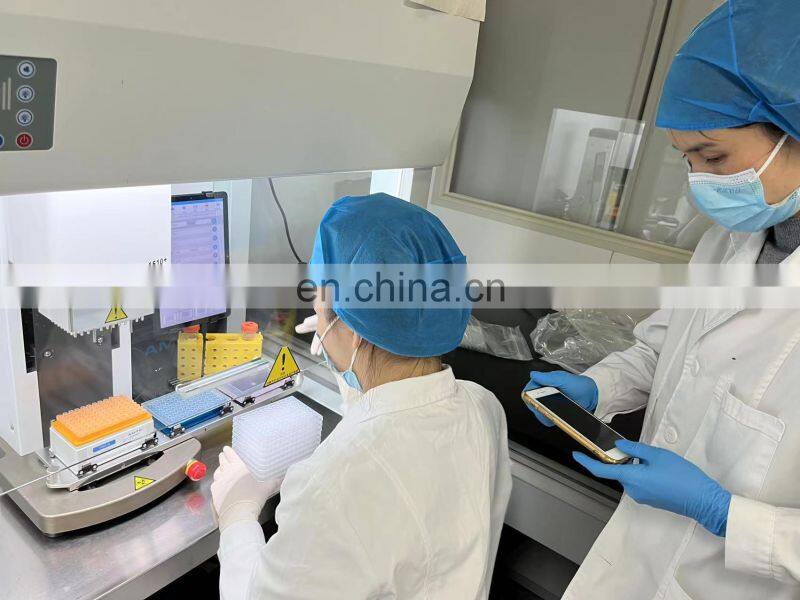

√We provide Demo testing and training services in our lab in Suzhou, Jiangsu China.
Independent research and development
√The R&D leader has more than 30 years of experience in medical product development
√Customized development of hardware and software according to customer requirements.

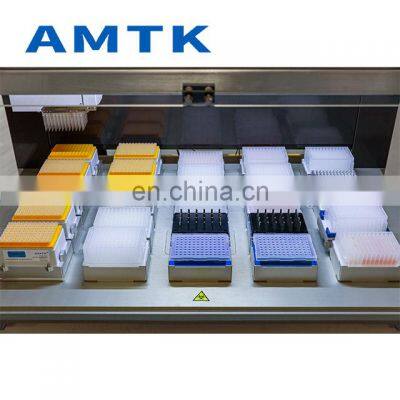

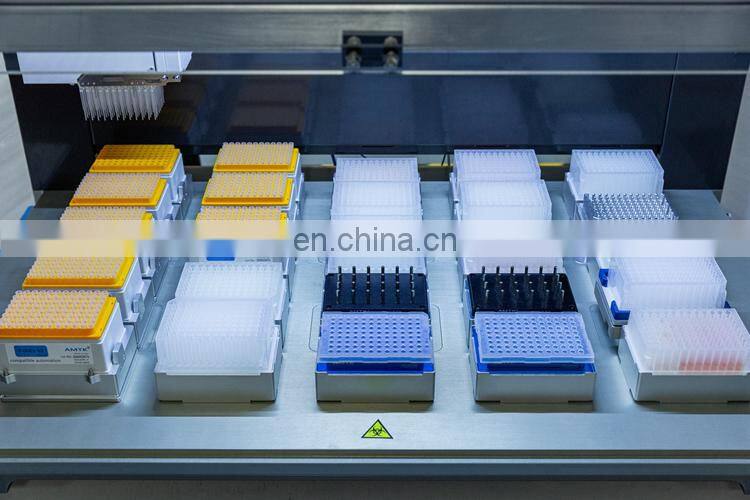

Deck layout
There are 25 standard bases, which can set moveable functional module , such as Temp Conditioner, Shaker and Magnetic Bead Separator. The positions of functional modules can be changed. The worktable is open and compatible with kits of different brands or processes, which can satisfy the nucleic acid extraction or library purification of 192 samples at one time.

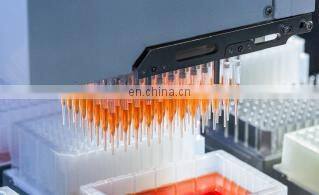

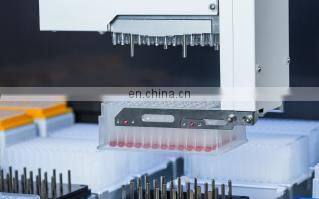

96 -Channel Pipetting Head
It can process 96 samples in parallel. With air-displacement technology , 96-channel head enables efficient plate processing and high pipetting accuracy. Pipetting barrel uses high hardness and lightweight alloy materials with wear-resistant coating, so it has long lifespan. Meanwhile, the barrel is convenient and easy to change on site.

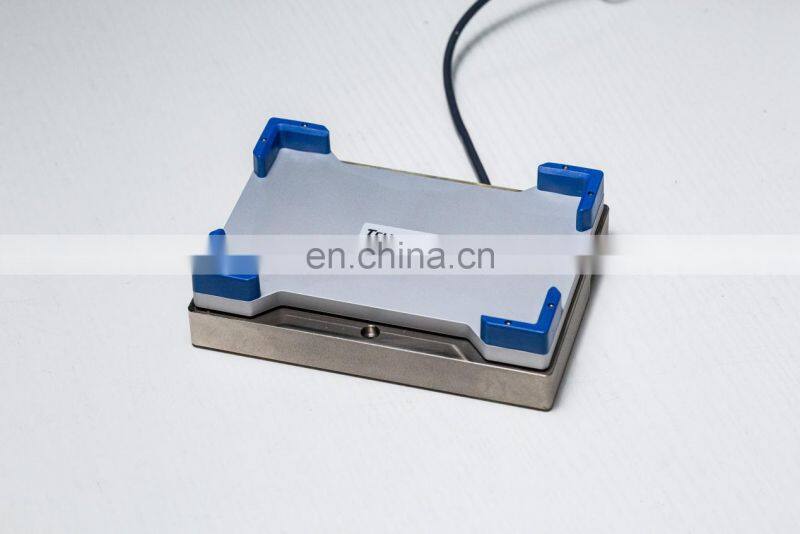

Shaker
Integrated Inheco wear-free magnetic oscillation system with a vibration speed range of 100-2000rpm, which can be used for liquid blending in 96-well plate. Compared with pipette mixing, it can reduce the loss of reagents in the tips.

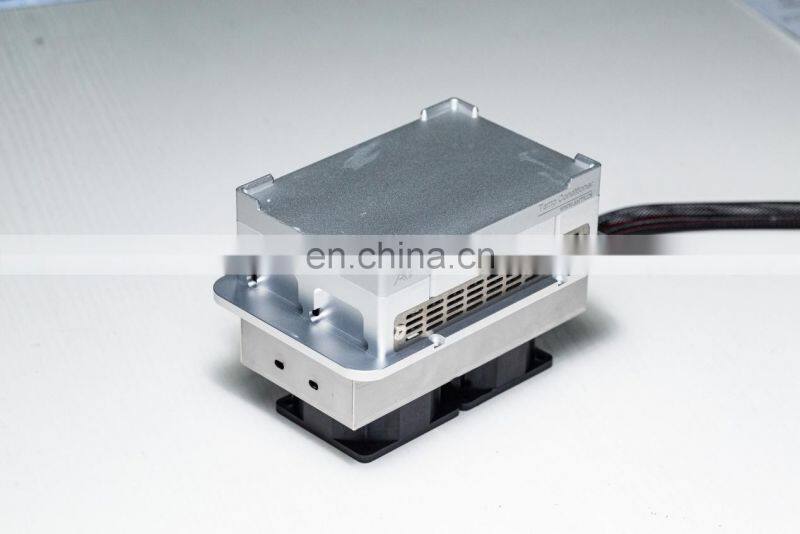

Temp Conditioner
The temperature range is 4-75 °C. It can be used for cell lysis of nucleic acid extraction, magnetic bead elution and other processes at the high temperature, and also for the temporary storage of various enzyme reagents at low temperature. Combined with aluminum heating adapter, it not only speeds up heating and cooling, but also reduces the temperature deviation between the wells.
Multi-functional mechanical arm
XYZ axis 3D structure, with multi-functional mechanical arm, positioning accuracy up to 0.1mm, which can meet the precise positioning of the pipette heads in the 96-well plate and the 384-well plate, and accurately grasp/move/drop the plate each time.

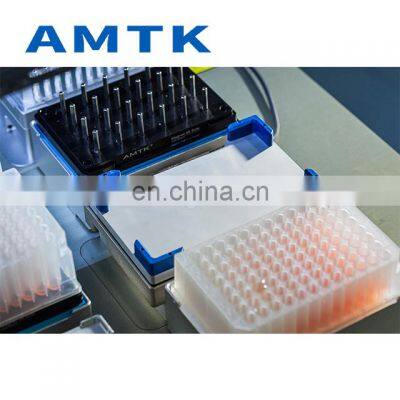

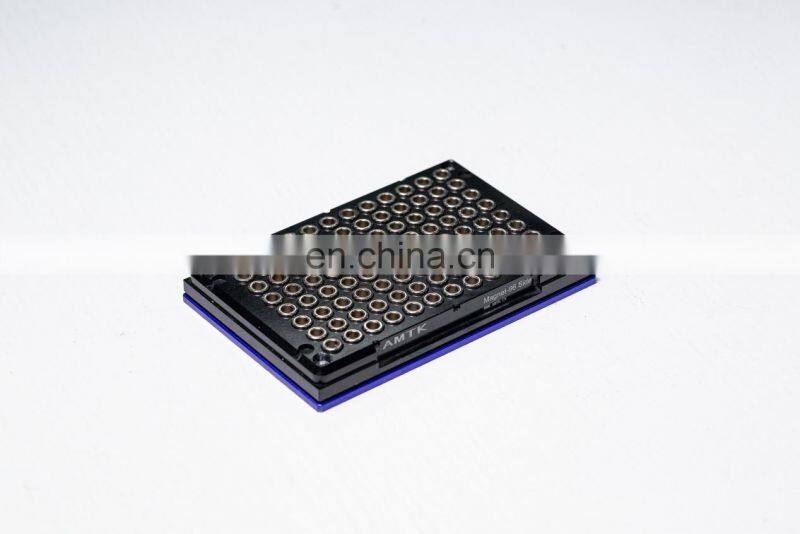

Magnetic Bead Separator
There are two kinds of magnetic bead separator, 96- ring and 24-column. ATMK has rich experience in discarding the supernatant after capture magnetic beads and elution the beads in large or small volume liquid. Choosing suitable magnetic separator leads to good experimental results.

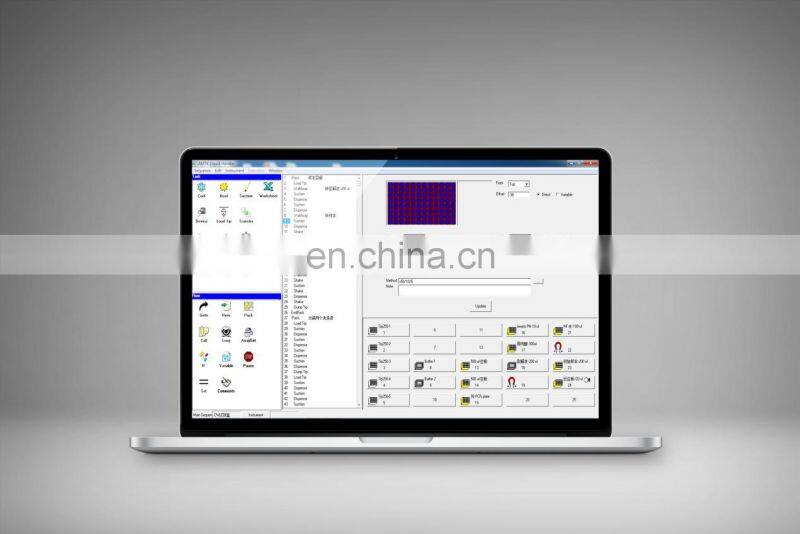

Graphical operation interface
Visual interface, display table layout when the program is running; sequential programming, simple operation. The software is open and flexible, suitable for various applications, and can customize program parameters according to the special needs of customers.

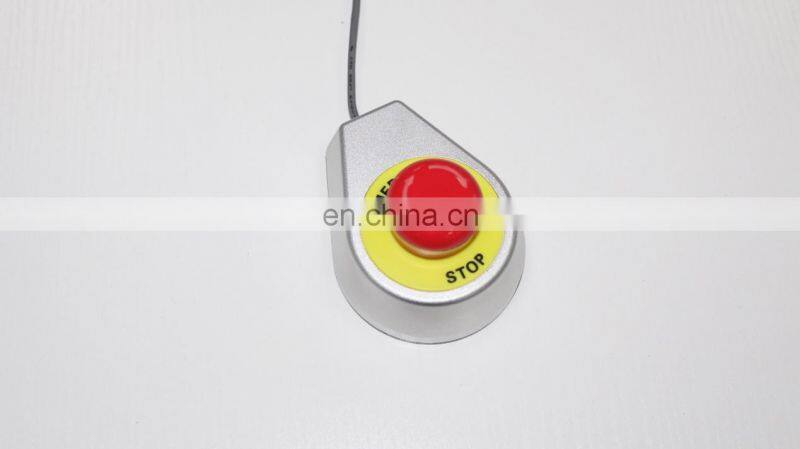

Emergency button
Timely respond to emergencies in the process of equipment operation to protect the safety of operators and samples; You just press the button and the machine stops at any time.

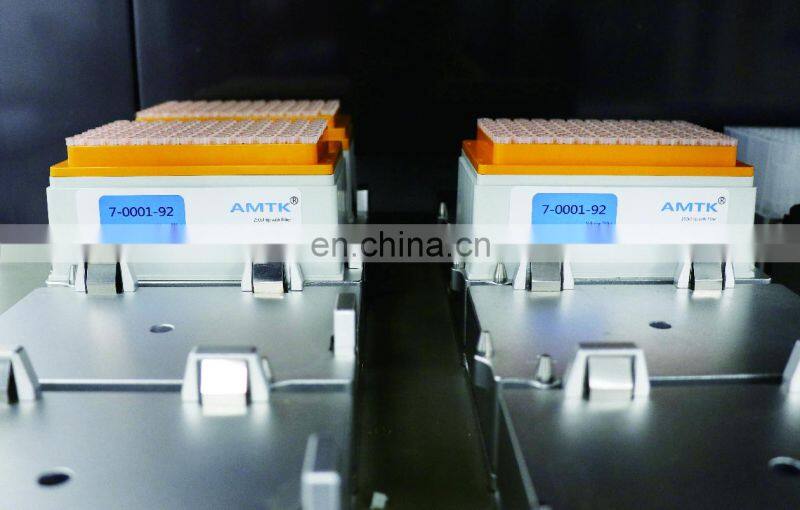

Tips Bases
The ingenious structural design with built-in elastic device effectively protects the pipetting head, and at the same time makes the Barrel and Tips more closely integrated.
Manufacturing Technique

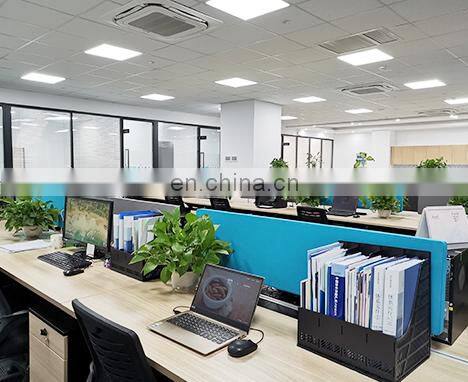

Company Profile

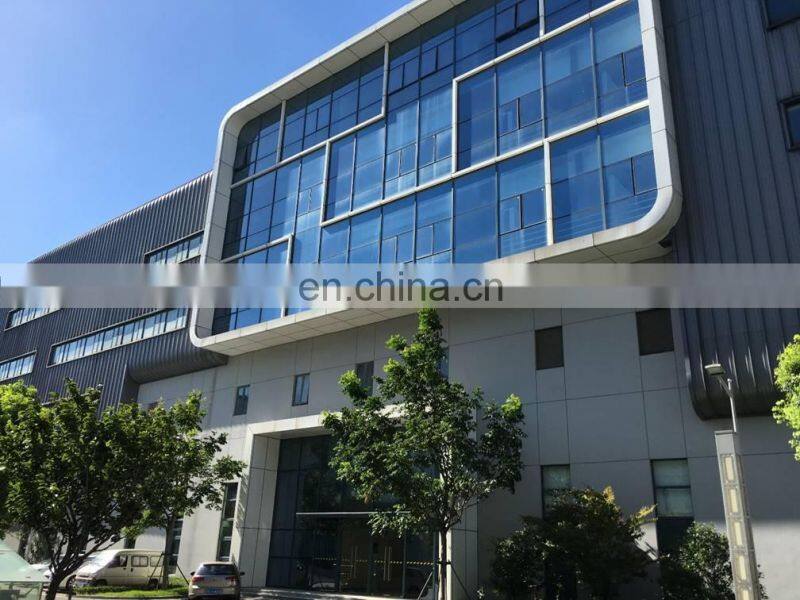

AMTK was founded in 2004 by a group of elites in design of sophisticated devices. Our headquarter bases in Beijing ZhongGuanCun - the heart of Chinese tech center. AMTK established its 2500M2 GMP rated manufacturing facility in Suzhou in 2016. AMTK is a tech pioneer. We are proud of making nation's first HPLC autosampler and the first high throughput liquid handler in China. AMTK is also an application-driven company. We have developed many workstations for third-party medical laboratories,hospitals,blood stations,CDC,research institutes.
Certificate
Exhibition

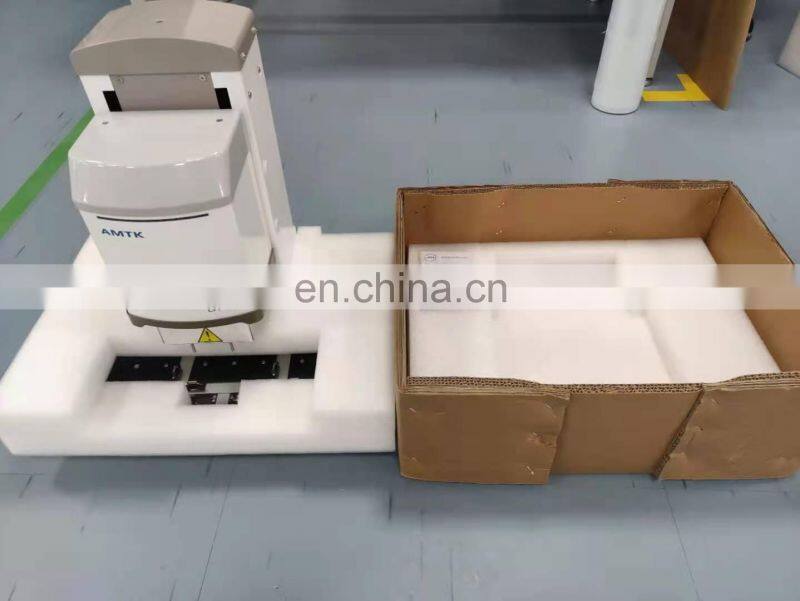

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
1.Why choose AMTK Biotechnology Co., Ltd.?
We are a professional company and the leading of fully automatic sample pretreat-ment in China. Meanwhile, we provide OEM and ODM service to our clients.
2.How to transport the product?
A: We transport the product as your requirement. Depending on the quantity and the machine you orderor whether you are urgent or not,we will suggest you suitable transportation way, by air or by sea.
3. What kind of packing way for product?
A: Depends on which kind product you order.Most of products are packed with cartons. Some productsare packed with wooden boxes.All of the packing way is based on the safety of the product.
4.What kind of warranty will be offer?
A: The warranty of our products varies from 12 months.
