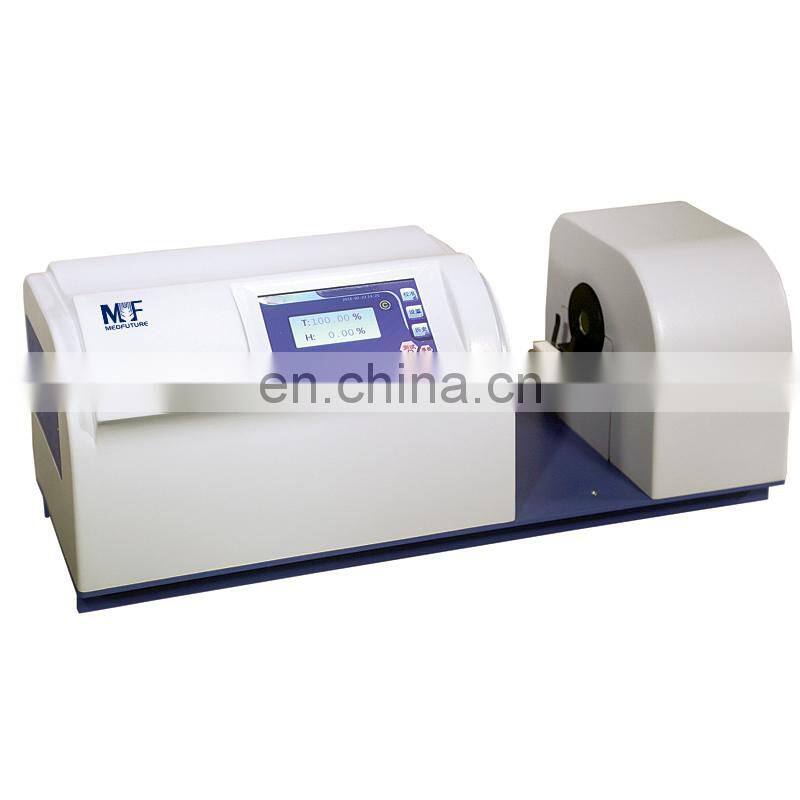

Transmittance and Haze Instrument
Features:
1. Parallel illumination, scattering hemisphere and integrating sphere optical receiving mode;
2. Computer operating system, automatic data processing system, no-knob operation and easy to use.
3. The device is equipped with USB interface and has the capability of USB storage;
4. Equipped with a magnetic thin film and a liquid sample cup holder. It’s of great convenience for the user to operate.
5. With a piece of haze film, which can be found in the accessories, it’s easy to examine the motor function of the instrument.
6. With the adoption of the modulator, the instrument is free of the ambient light effects and has no necessity to use the darkroom, and ensures the measurement accuracy of large samples.
Technical Parameter:
|
Model |
MF-HM2S |
|
Transmittance Accuracy |
≤1% |
|
Haze Accuracy |
Haze≤0.5%, ≤±0.1% Haze>0.5%, ≤±0.3% |
|
Light Repeatability |
0.5% |
|
Haze Repeatability |
Haze:≤0.5%, 0.05% Haze:>0.5%, 0.1% |
|
Optical System |
Collimated illumination, diffuse vision, integrating sphere receiving mode Sample window size: incident window: 25mm Exit window: 21mm Light source: C light(6774K), A light(2856K) Receiver: silicon photovoltaic cells |
|
Electric System |
Large LCD touch screen. Minimum reading: transmittance: 0.01%; haze: 0.01%. USB port and USB flash drive storage. |
|
Measuring Range |
Transmittance: 0%~100.00% Haze: 0%~30.00% |
|
Sample Size(mm) |
Solid standard sample size: 50*50 Tank size: 50*50*10 Film sample size: 50*50 |
|
Calibration Sample(mm) |
40*2: one piece |
|
Power Supply |
AC220V±10%, 50HZ |
|
Consumption |
150W |
|
External Size(W*D*H) mm |
740*270*300 |
|
Package Size(W*D*H) mm |
785*360*490 |
|
N.W/G.W(kg) |
21/35 |

1) OEM or ODM orders are allowed
2) 100% new,100% test before delivery.
3) Professional export team and quick service.
4) Good after-sale service,speed responding in 24 hours.
Our products mainly packed by Wooden Case or other security package,you can choose ocean shipping, air transport or other means of transport.

· Why choose Medfuture?
We are the professional laboratory and medical equipment supplier in China. We offer OEM and ODM service to our clients.
· Would Medfuture send product samples to customer?
We could send product samples to clients, but the sample product and the freight are charged.
· What payment term does Medfuture accept?
We accept T/T, L/C, Western Union and some of other payment methods. Usually, we prefer 100%T/T in advance, for special order, 40% of the total amount would be paid when place order, and the rest would be paid before shipment.
· How long is the lead time?
7-14 preparation days are needed after receiving prepayment. Shipment period varies according the different destination, usually is 20-50 days. If it is urgent, air shipment or express delivery like TNT and DHL will be recommended.
· How long is the validity of Medfuture’s quotation?
Usually, the validity period of quotation is 30 days, but still depends on the changes of exchange rate and shipping cost.
· Which port in China is the port of shipment?
Qingdao (Shandong) port (special requirement could be discussed)
· How is the package of the product?
The equipment would be wrapped by soft materials to avoid vibration and would be packaged by wooden or cartoon boxes with water-proof plastic wrapper.
· How is the inspection process before delivery?
Finished products will be inspected by our QC staff firstly, then will be checked by project manager. We also accepted third party inspection that arranged by clients.
