Medfuture Medical Hospital Use 50L 75L 100L 120L Automatic Vertical Pressure Steam Sterilizer Lab Autoclave
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Government ministry/Bureau/Commission
Year Established:
2012
Annual Export Value:
Above US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
MedFuture Manufacturers Autoclave Vertical High Pressure Autoclave Steam Sterilizers EquipmentNegotiableMOQ: 1 -
Medfuture Small 16l 18l 24l Medical Autoclave Class b Steam Autoclaves Dental b Class Sterilizer Machine Para HospitalesNegotiableMOQ: 1
-
Medfuture 150L 250L 350L 650L Large Horizontal Autoclave With Acid-Proof Stainless Steel ChamberNegotiableMOQ: 1
-
MEDFUTURE 40L Lab Medical EO Gas SterilizerNegotiableMOQ: 1
-
MedFuture Table Top 80l Autoclave Class b Medical Steam Autoclave MachineNegotiableMOQ: 1
Products Description

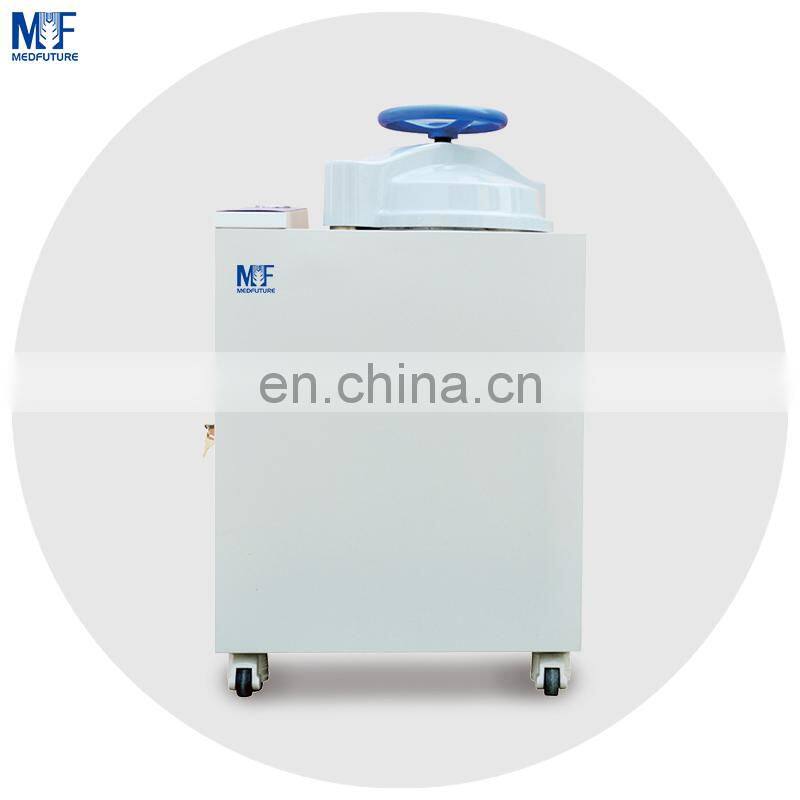

Medfuture Hand Wheel Type Vertical Autoclave
Application range:
There are 5 fixed programs and2 DIY programs according to different sterilization objects such as dressings, equipment, tools,
rubber, liquid, culture medium, waste, etc.
Safety Features:
1. Over pressure. Safety valve can automatically open to release pressure.
2. Over temperature. The system will power off automatically.
3. Door sensor. Sensor at door closing position, to check the door status. If door is open, operation will stop.
4. Anti-dry out function. If water level is too low, system will power off and error code displays on screen.
5. Over current. over voltage or electric leakage protection apparatus-air switch.
6. Door cover.The door is covered with safety shell made of thermal insulation material, which can protect operator from burning
by heat and looks nice.
There are 5 fixed programs and2 DIY programs according to different sterilization objects such as dressings, equipment, tools,
rubber, liquid, culture medium, waste, etc.
Safety Features:
1. Over pressure. Safety valve can automatically open to release pressure.
2. Over temperature. The system will power off automatically.
3. Door sensor. Sensor at door closing position, to check the door status. If door is open, operation will stop.
4. Anti-dry out function. If water level is too low, system will power off and error code displays on screen.
5. Over current. over voltage or electric leakage protection apparatus-air switch.
6. Door cover.The door is covered with safety shell made of thermal insulation material, which can protect operator from burning
by heat and looks nice.
Product Paramenters
Technical Features:
* Water inlet filter to keep high water quality(except MFS-B150/200(II)).
* Optional printer for recording sterilization data.
* LED screen displays all steps of full process as well as error codes.
* Independent quick service window, easy for repairing and maintenance.
* Automatic selecting quick or low exhaust to avoid sterilization liquid overflowing.
* Sterilization programs for dressings, equipment, rubber, culture medium, waste, etc.

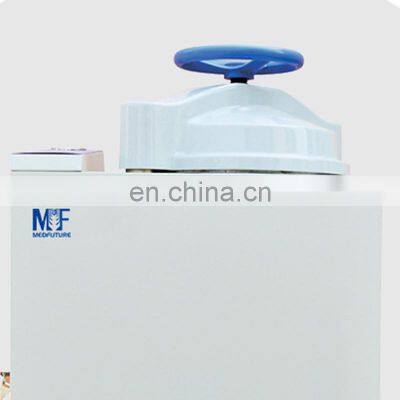

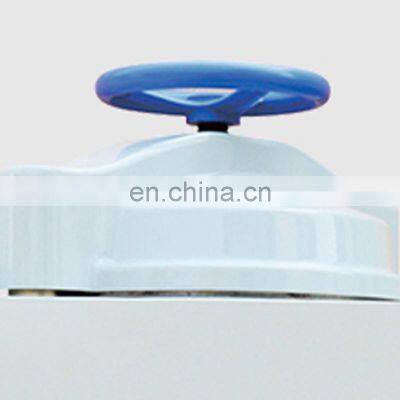

* Hand wheel type of quick-open door structure, self-expandable sealing ring, easy operating and safe.
* Complete process of filling water, dynamic pulse exhaust, heating, sterilizing, draining and drying runs automatically.
* Adopting certain temperature(98~102℃) exhaust method and dynamic pulse exhaust method to empty the cold air inside chamber for
ensuring steam saturability.
* Inner stainless steel water tank for water and steam to circulate inside. Steam dose not exhaust during sterilization, so as to
keep the outside clean and dry(except MFS-B150/200(II)).
*Drying function (except MFS-B150/200(II)
* Optional printer for recording sterilization data.
* LED screen displays all steps of full process as well as error codes.
* Independent quick service window, easy for repairing and maintenance.
* Automatic selecting quick or low exhaust to avoid sterilization liquid overflowing.
* Sterilization programs for dressings, equipment, rubber, culture medium, waste, etc.
* Hand wheel type of quick-open door structure, self-expandable sealing ring, easy operating and safe.
* Complete process of filling water, dynamic pulse exhaust, heating, sterilizing, draining and drying runs automatically.
* Adopting certain temperature(98~102℃) exhaust method and dynamic pulse exhaust method to empty the cold air inside chamber for
ensuring steam saturability.
* Inner stainless steel water tank for water and steam to circulate inside. Steam dose not exhaust during sterilization, so as to
keep the outside clean and dry(except MFS-B150/200(II)).
*Drying function (except MFS-B150/200(II)
Model |
MFS-B50(II) |
MFS-B75(II) |
MFS-B100(II) |
MFS-B120(II) |
|||
Capacity |
50L |
75L |
100L |
120L |
|||
Chamber Size(mm) |
φ386*500 |
φ386*682 |
φ386*875 |
φ386*1055 |
|||
Chamber Material |
304 medical stainless steel |
||||||
Max Designed Pressure |
0.28Mpa |
||||||
Max Designed Temp |
150℃ |
||||||
Working Pressure |
0.175MPa |
||||||
Working Temp. |
105~136℃ |
||||||
Temp.Accuracy |
±0.1℃ |
||||||
Timing Range |
0~999min |
||||||
Dynamic Pulse Exhaust Times |
0~9 times |
||||||
Dynamic Pulse Exhaust Temp. |
105~134℃ |
||||||
Dissolution Temp. Range |
60~100℃(programmable) |
||||||
Temp. holding Range |
40~60℃(programmable) |
||||||
Power Supply |
110/220V, 50/60Hz |
220V, 50/60Hz |
|||||
Power Consumption |
4.4KW |
4.7KW |
5.2KW |
5.2KW |
|||
SS Basket |
1 pc |
2pcs |
2pcs |
3pcs |
|||
