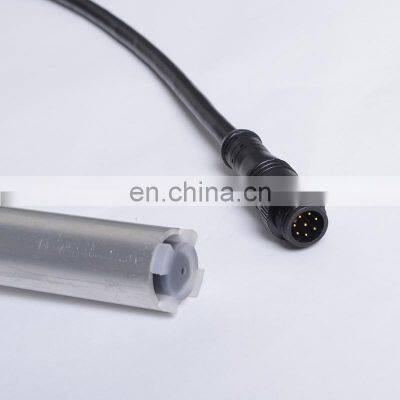

GPS fuel level sensor RS485 for truck tank fuel level remote monitoring

GPS  fuel level sensor RS485 for truck tank fuel level remote monitoring.

It is used for fleet managment and fuel consumption monitoring solution:

provides high-precision measurement of fuel level in a fuel tank;

gives detailed informaiton about fuel tank refueling, draining, consumption;

prevents fraud or unauthorized use of fuel.

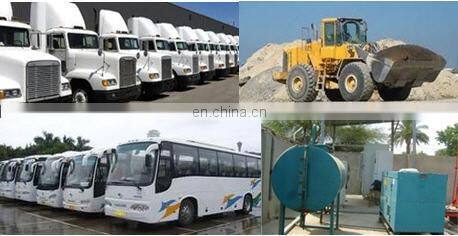

1. Application

2. Unique features:

Adoption of measurement principle of high precision capacitance and application of power processing technology of industrial auto electronics, JT606 series fuel sensor sovled problem of measuring fuel level change precisely in severe environment. which can not only be cut at spot, but also replace the origina l fuel detection unit, Especially with adoption of patented installation technology,which enable simple,reliable and convenient assembly.

3. Specifications:

Input:

Voltage: 4 – 70V

Consumption: 0.17W/5V, 0.24W/12V, 0.48W/24V

Output:

Current: 4 – 20mA

Voltage: 0 – 5V

Emulated resistive: 10 – 500Ω

Resolution: 0.5mm

Accuracy: 0.5%

Material:

Housing: Industrial aluminum

Electrode pole: Aluminum alloy

Medium Types:

Diesel; biodiesel; Petrol, not suitable for conducting medium

Environment rating:

Temperature operating: -40°C - +85°C

Temperature storage: -40°C - +105°C

Sealing: IP67

Weight: 40G (500mm)

4. Measure the tank size:

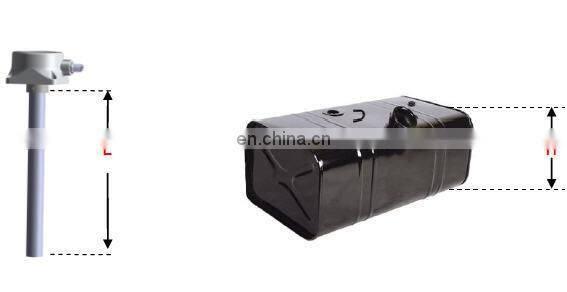

  length of JT606 = L (pls note L is from the flange bottom to the fuel sensor bottom )

  Fuel tank height= H

  L=H+6mm

5. Cut the fuel sensor:

Cut the sensor as per tank height:

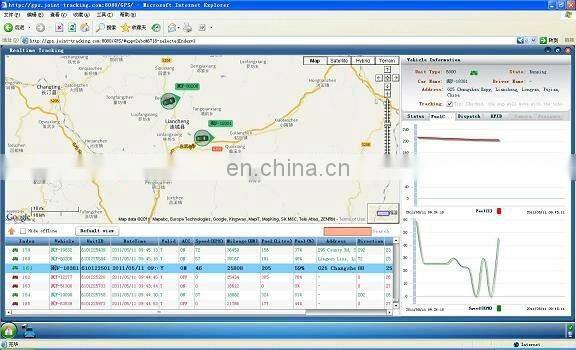

7. Fuel level sensor working with web based tracking software JT1000B/S

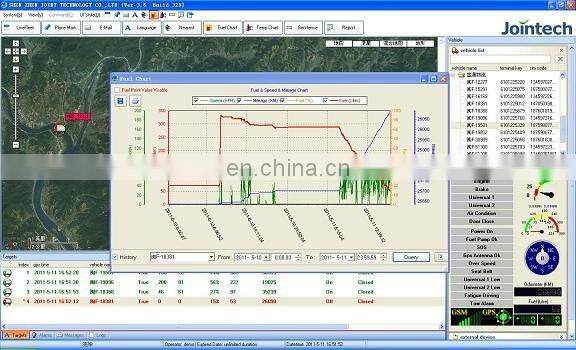

8. FUEL LEVEL MONITORING IN PC BASE SOFTWARE JT1000C/S

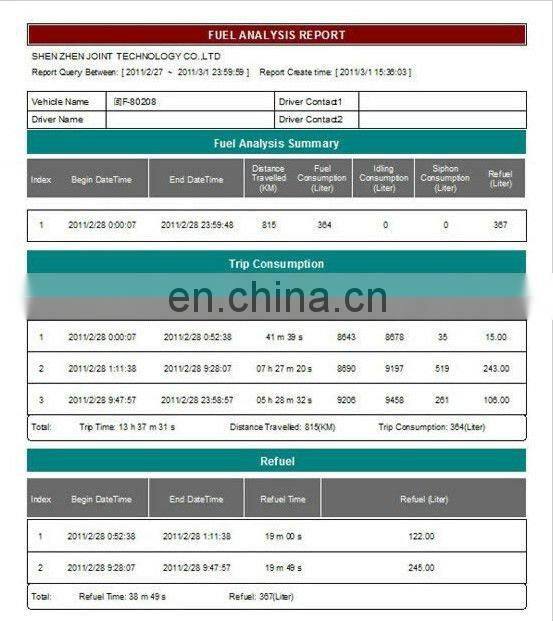

9. FUEL ANALYSIS IN PDF

.

10. Testing:

11. Packing:

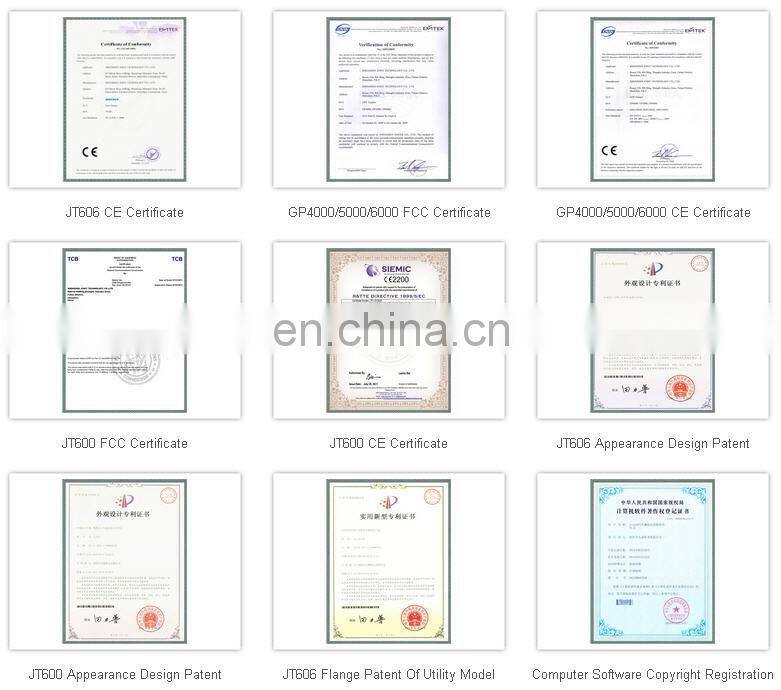

12. Certificate:
