high accuracy stable gps tracking fuel tank level sensor
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
LLS level sensor JT606X to detect fuel level change for logistics trucks
-
Fuel level sensor , can be cut off from Jointech
-
Digital fuel level sensor GPS tracker fuel sensor
-
High Precision Capacitive Diesel Fuel Tank Level Sensor Level Measuring Tool
-
GPS fuel level sensor for truck diesel tank fuel level monitoring
-
Fuel level sensor with gps tracker for real time fuel management
Product Description

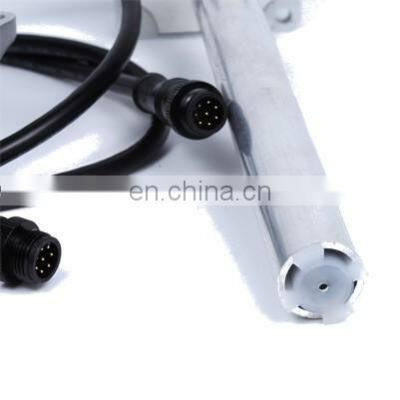

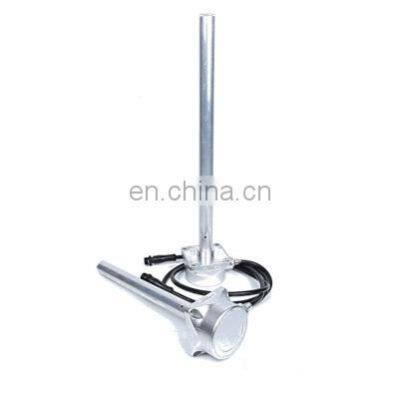

High accuracy stable gps tracking fuel tank level sensor
Product Description
Fuel sensor to detect fuel consumption monitoring for truck and generator
Capacitance fuel sensor, high accuracy
Cut off free
Fuel sensor to detect fuel consumption monitoring for truck and generator
The fuel sensor is used to measure fuel level change in fuel tank in dynamic conditions.
The fuel sensor is wokring with GPS/GSM tracker for the fuel consumption monitoring.
Application
- Logistics truck’s fuel consumption monitoring
- Construction machinary’s fuel consumption monitoring
- Container machinary’s fuel consumption monitoring
- Generator’s fuel consumption monitoring in factory, building site
- Generator’s fuel consumption monitoring in cell tower site
Key Feature
- Capacitance fuel sensor, with high accuracy 0.5% and high resolution 1mm
- The fuel sensor can be cut off freely in customer side to be suitable for the different size fuel tank

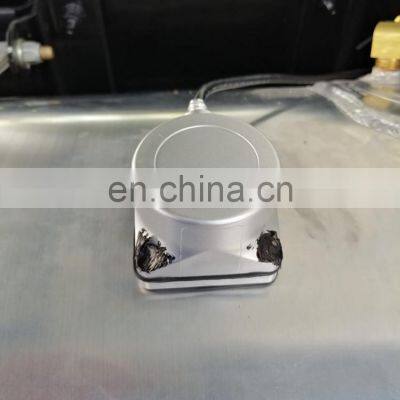

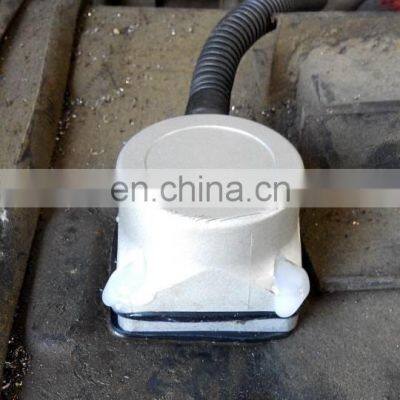

- Easy installation, just need to drill one hole on the fuel tank
- Tank fuel level is coded by voltage that linearly varying with fuel level changing
- Signal format is meander 50%, pulse height equal to half of supply voltage
Technical specification
- Accuracy: 99.5%
- Resolution: 1mm
- Output Signal: Voltage, Current, RS232, RS485
- Output Voltage: 0—5V
- Output Current: 4—20mA
- Size: 10—100cm
- Weight: 40g (50cm)
- Material: Industial Aluminium
| FEATURES COMPARISON LIST | ||
| Type | Jointech capacitive fuel sensor | Reed Switch fuel sensor |
| Picture | ||
| Working Principle | ||
| capacitance: The sensor part is a coaxes container, capacity between the sensor body and induction electorde would be changed when the oil gets into the container,which can be transformed by the circuit, then get the required signal by precise compensation | Distributed resistance: There is magnetic inside the reedswitch, which can made switch inside the sensor close/open, it leads to the change of resistance, the required signal would be available after circuit transformation | |
| Accuracy | 0.50% | 2% |
| Resolution | 0.5mm | 12mm/21mm |
| Working current | <10mA | 500 mA |
| Voltage input | DC 4 ~ 70V | Customization |
| Signal output | current, voltage(analog signal output) RS485,RS232(digital signal output) | resistance, current, voltage(analog signal output) |
| Installation | Flange installation | M5 screw 2 mm thick NBR gasket |
| Full/Empty tank adjusment | button / Remote command configuration | Not required |
| Structure | No reedswitch | reedswitch:the reedswith can’t be moved due to magnetic adsorption of dust in the oil, which may lead to accuracy distortion |
| The sensor can be cut according to your needs | customized length (0.01~2m) | |
