Cheap Price Capacitive Fuel Monitoring Device Generator Fuel Tank Level Pressure Sensor
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Government ministry/Bureau/Commission
Year Established:
1997
Annual Export Value:
US$5 Million - US$10 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Digital Fuel Sensor Generator Fuel Level Sensor for Diesel TankNegotiableMOQ: 1 -
High Precision Stable Diesel Fuel Tank Level Sensor With Digital RS232, RS485, Analog Voltage, Current, Resistant OutputNegotiableMOQ: 1
-
High Accuracy Stable Gps Tracking Fuel Tank Level SensorNegotiableMOQ: 1
-
LLS Level Sensor JT606X to Detect Fuel Level Change for Logistics TrucksNegotiableMOQ: 1
-
Fuel Level Sensor , Can be Cut off From JointechNegotiableMOQ: 1
Product Description
Fuel level sensor / fuel sensor / digital fuel sensor

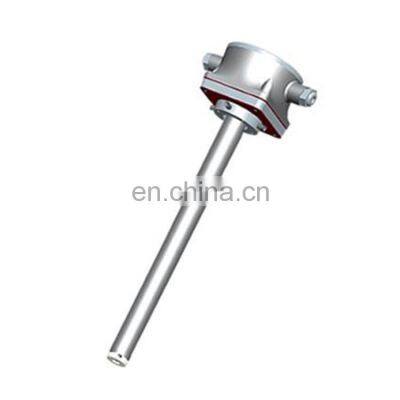

JT606 capacitive oil level sensor is independently developed in combination with the world's top sensor technology and has a number of innovative patented technologies. JT606 can continuously detect the level of the liquid level, the resolution is less than 1mm, can adjust the length on site to adapt to the height of the fuel tank, and can replace the original vehicle oil level sensor to connect to the original vehicle oil meter.
JT606 is widely used for monitoring and management of oil level consumption in logistics fleets, generator sets, buses, buses, construction machinery remote control, etc.
JT606 is widely used for monitoring and management of oil level consumption in logistics fleets, generator sets, buses, buses, construction machinery remote control, etc.
| index | parameter |
| Acquisition Principle | Capacitive |
| Operating Voltage | 4-70V |
| Power consumption | 0.13W / 5V, 0.19W / 12V, 0.38W / 24V |
| Precision | Resolution <1mm, detection accuracy is less than 0.5% |
| Communication Interface | RS-232, RS-485, CAN (customized) |
| Communication baud rate | 2400, 4800, 9600, 57600, 115200 or customized |
| output signal | 0-5V voltage signal, 4-20mA current signal |
| Measuring range length | 10CM-150CM |
| Protection class | IP67 |
| Housing material | Aluminum alloy |
| Working temperature | -40 ° C ~~ + 85 ° C |
| Storage temperature | -40 ° C ~~ + 105 ° C |
| weight | 400G (50CM long) |
| size | 550mm, 750mm, 1000mm, customized |
| Features |
1.The resolution is less than 1mm, and the collection accuracy is less than 0.5% 2. Adjust the length on site to suit the height of the fuel tank 3. Wide voltage input 4-70V 4. Patented technology for easy installation of flanges 5. Multi-signal output: (RS485, RS232, voltage, resistance, current) 6.Support on-site adjustment and remote parameter configuration 7. Support replacement of original car oil level sensor |
Hot products
Company profie
Our Advantage
Our Exhibition
Our Certificate
FAQ
Q:Do you have your own factory?
A:Yes, we are manufacturer in China for over 15 years located in Guangdong, China
Q:Why choose us?
A:we have worked with 50 customers from Fortune 500, which include Huawei, Carefour, Dia, DHL,SGS......etc,
in cooperating with those internataional enterprises and orgnizations, we can fully satisfy your needs in mobile
assets monitoring field.
Q:Do you have your own tracking platform?
A:yes, we can provide not just web based tracking software, but also IOS/Android APPS
Q:Do you provide customized hardware and software?
A:Yes, we can provide not just customized hardware, but also software funcationalities.
Q:What's your delivery time?
A: For samples, 2-4 days, bulk order, 7-15 days generally
