Smart Gps Truck Container Lock With Real Time Visibility and Control
Smart gps truck container lock with real time visibility and control
JT701 is a kind of GPS smart navigation lock which is special designed for container tracking, monitoring and management solution. It is integrated with features of: micro electronic controlling, RFID, GPS & GSM, etc.
Firstly, JT701 is a kind of GPS navigation tracker. It is inbuilt GPS, GSM module for container real time position tracking. It is inbuilt big capacity battery 15000mA, and has intelligent working mode for power & data flow saving. Waterproof IP67 for dust and water resistance, and it is good for outdoor hard environment application.
secondly, It is also a intelligent electronic lock device. It help monitor container door status, and keep security of cargo. Device is open by RFID card, SMS command, and GPRS. and it can support muti kinds of alarm: Swipe RFID card alarm, lock string cut off alarm, unseal alarm, seal alarm, geo fence alarm, etc.
SPECIFICATIONS | ||||||
Dimension (LxWxH) | 195 x 114 x 37mm | |||||
Weight | 1.2kg (include standard accessories) | |||||
Case material | Engineering plastic | |||||
Parameters: | Built-in battery | 15,000mAh rechargeable Lithium battery | ||||
Average standby current | < 0.1mA | |||||
Average working current | <90 mA | |||||
Protection grade | IP67 waterproof | |||||
GSM antenna | Built-in / 2G/3G | |||||
GPS antenna | Built-in | |||||






Main Features
1). Live GPS tracking;
2). Door locking status monitoring;
3). On site unseal by authorized RFID;
4). Remote unlock by SMS, Software;
5). Real time tamper alert for prompt response;
6). IP67 waterproof to be used outdoor;
7). Big battery lasts more than 15 days at 1 data/minute;
8). Easy to install with magnet base;
9). Adjustable metal string adapt to container, van truck, cargo and valuable assets.





Information available:
1). Position of the container is provided by the GPS function;
shown as a landmark on the map, and address or coordinate.
2). Door open/closed.
3). Battery charge level.
4). Indicate that the container door has been left open
or imply that there has been an attempt to break-in.
Working Principle:
2). On the road: JT701 will upload the position to the server, you can monitor it in computer or mobile in real time
3). Desitination: Swipe the card to unlock JT701 (or unlock with password via SMS, unlock with command via software)
4). Reports: Who, When, Where unlocked, trace, can be checked at any time
5). Alarms: Low battery alarm, Sting cut alarm, card swiping, unlocking, wrong password SMS, vibration, geofence

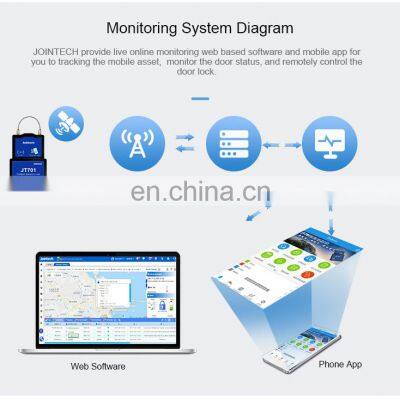

Monitoring platform
JOINTECH provide live online monitoring web based software and mobile app for you to tracking the mobile asset, monitor the door status, and remotely control the door lock.
APPLICATION:
JT701 is widely used for outdoor mobile asset tracking, such as:
1.Customs/government inland container transportation supervision and tracking project.
2. logistic fleet van trucks door status monitoring and cargo security protecting solution.
3. trailer trucks monitoring.
4. ware house door status monitoring solution.


Warranty
All the trackers from JOINTECH are with ONE year warranty.

After-Sales Service
Technical support/after sales service:
1). We have engineers online to provide technical support on time.
2). Free training is available in our company.
3). Technical assistance is also available for big project.

Packaging | ||
Size | 50cm (L) * 39cm (W) * 31 (D) | |
Weight | 1.2 T | |
Packaging Details | 15 units / carton 20kg / carton | |

Packaging | ||
Size | 93cm (L) * 54cm (W) * 62 (D) | |
Weight | 1.2 T | |
Packaging Details | 150 units / box 200kg / box. | |
